Description
Description

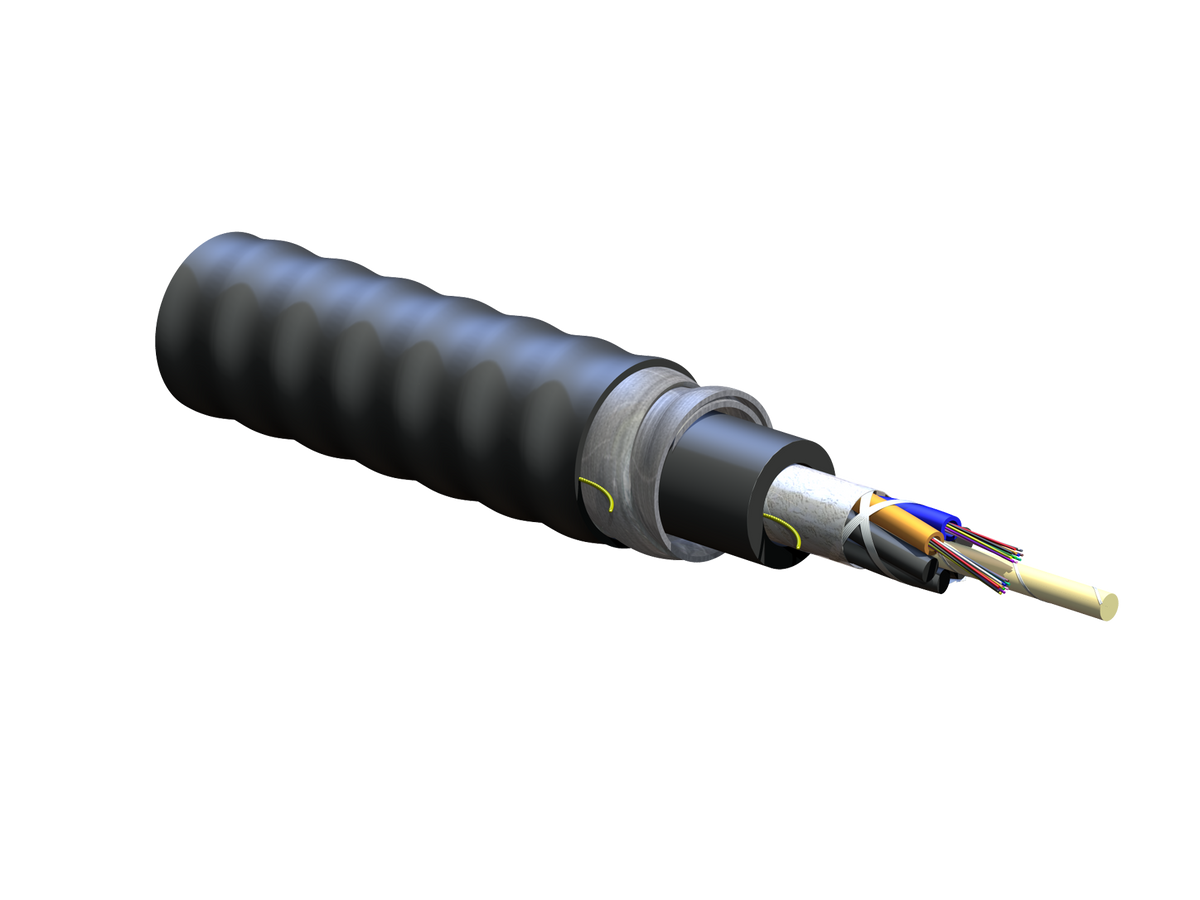

Corning 024TUF-T4180DA1 | FREEDM Loose Tube, Gel-Free, Interlocking Armored Cable, Riser 24 F, 50 µm multimode (OM3)
Corning - 024TUF-T4180DA1 - Features
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Loose tube design
- Stable performance and compatibility with all common fiber types
- Color-coded tubes and fibers
- Quick and easy identification
- Flexible interlocking armor
- Up to seven times the crush protection compared to non-armored cables
- Common installations
- Outdoor aerial and duct
- Gel-free waterblocking technology
- Craft-friendly cable preparation Loose tube design
- Stable performance and compatibility with all common fiber types Color-coded tubes and fibers
- Quick and easy identification Flexible interlocking armor
- Up to seven tes the crush protection compared to non-armored cables Common installations
- Outdoor aerial and duct; indoor vertical riser and general purpose horizontal according to NEC Article 770
Specifications
Specifications
Corning - 024TUF-T4180DA1 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Indoor - Outdoor Fiber Optic Cable
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 024TUF-T4180DA1 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 024TUF-T4180DA1 |
| EAN Code | 4056418172484 |
| Environment | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Product Type | Interlocking Armor |
| Fiber Category | 50 µm MM (OM3) |
| Flame Rating | Riser (OFNR) |
| Application | Aerial, Duct, General Purpose Horizontal, Vertical Riser |
| Fiber Count | 24 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCR, CSA FT-4 |
| Common Installations | Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-104-696, CSA FT-4 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to -10 °C (14 °F to 14 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

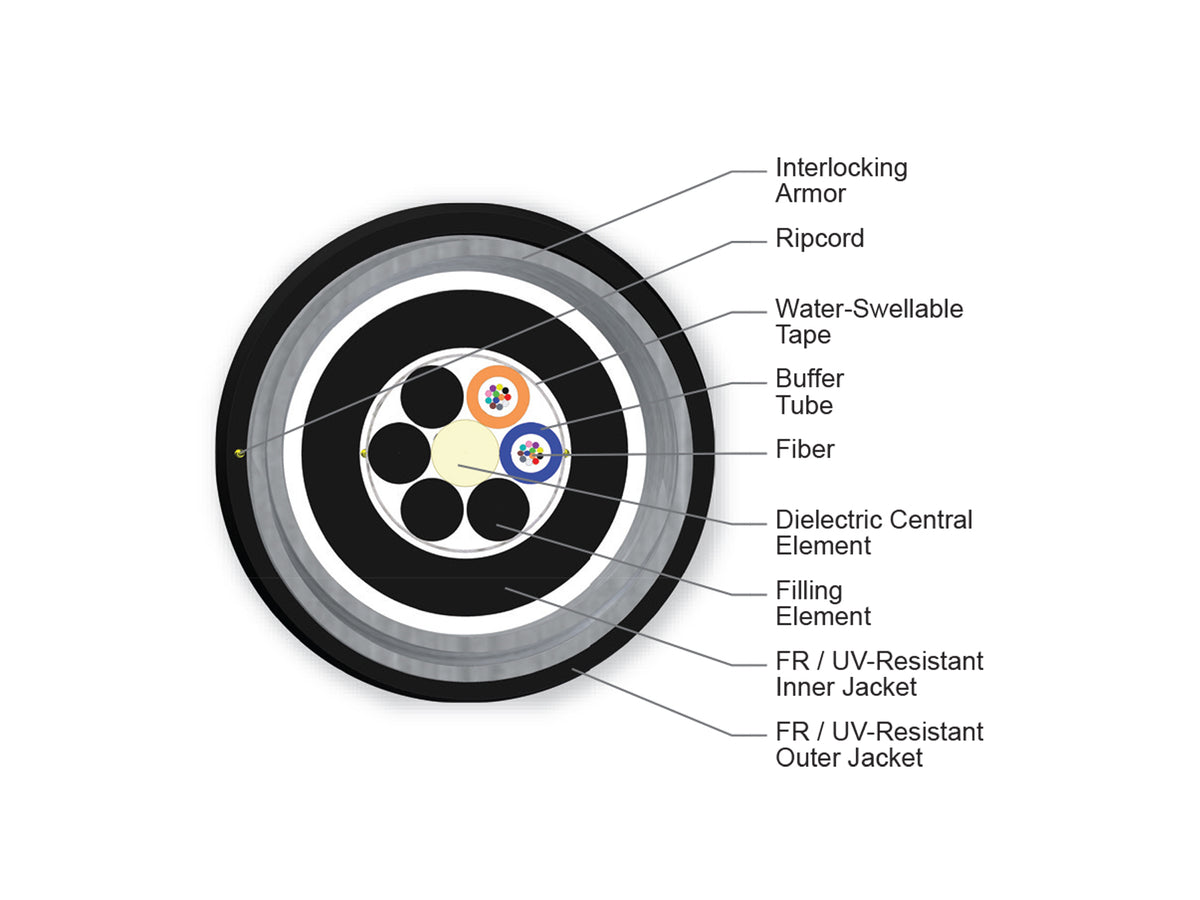

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 24 |
| Buffer Tube Color Coding | Blue, Orange |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Interlocking Armor |
| Buffer Tube Color | Blue, Orange |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Inner Jacket Material | Flame-Retardant, UV-Resistant |
| Number of Active Tubes | 2 |
| Number of Filling Elements | 4 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 810 N (182.1 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Min. Bend Radius Installation | 299 mm (11.77 in) |
| Min. Bend Radius Operation | 207 mm (8.15 in) |
| Nominal Outer Diameter | 20.7 mm (0.81 in ) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 3.0 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Ordering Information | - |
| Weight | 293 kg/km (196.89 lb/1000 ft) |
