Brand: Corning
|
SKU:
10155901

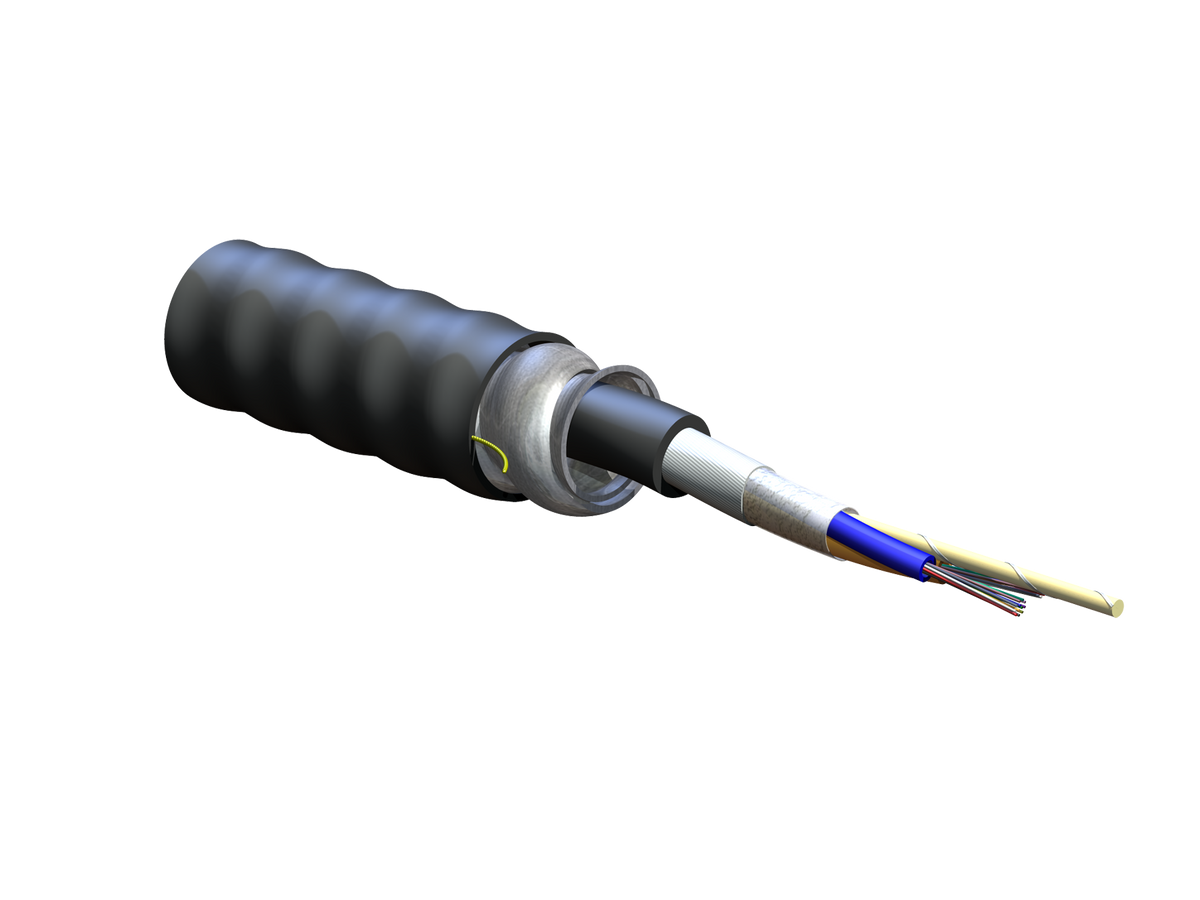

Corning 024ZSF-T4101DA1 | FREEDM LST Loose Tube, Gel-Free, Interlocking Armored Cable, Riser
Regular price
$6.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 024ZSF-T4101DA1 | FREEDM LST Loose Tube, Gel-Free, Interloc...
Regular price
$6.35
Unit price
Description
Description
Corning 024ZSF-T4101DA1 | FREEDM LST Loose Tube, Gel-Free, Interlocking Armored Cable, Riser 24 F, SMF-28 Ultra fiber, Single-mode (OS2)
Corning - 024ZSF-T4101DA1 - Features
- Flexible, interlocking armor design
- Six times crush protection
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Color-coded tubes and fibers
- Quick and easy identification
- UV-resistant, flame-retardant jacket
- Rugged, durable and easy to strip
Specifications
Specifications
Corning - 024ZSF-T4101DA1 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 024ZSF-T4101DA1 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 024ZSF-T4101DA1 |
| Environment | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Product Type | Interlocking Armor |
| Fiber Category | SMF-28 Ultra fiber |
| Flame Rating | Riser (OFCR) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal, Vertical Riser |
| Fiber Count | 24 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCR, CSA OFC FT-4 |
| Common Installations | Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-104-696 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to -10 °C (14 °F to 14 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

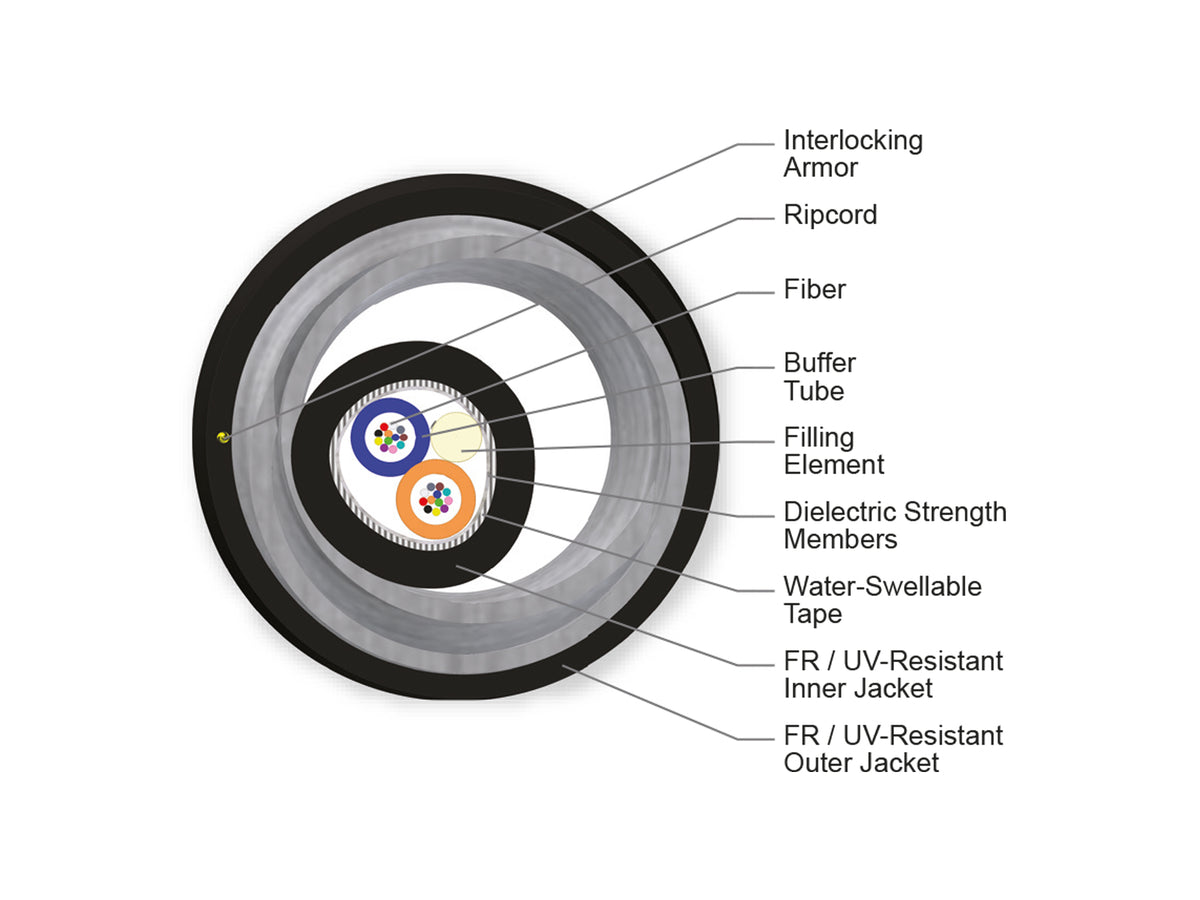

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 24 |
| Buffer Tube Color Coding | Blue, Orange |
| Number of Ripcords | 1 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Interlocking Armor |
| Buffer Tube Color | Blue, Orange |
| Inner Jacket Material | Flame-Retardant, UV-Resistant |
| Number of Active Tubes | 2 |
| Number of Tube Positions | 2 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 1350 N (303.49 lbf) |
| Min. Bend Radius Installation | 235 mm (9.25 in) |
| Min. Bend Radius Operation | 157 mm (6.18 in) |
| Nominal Outer Diameter | 15.7 mm (0.62 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 259 kg/km (174.04 lb/1000 ft) |
