Brand: Corning
|
SKU:
370-COROS2LT16AWG-24
Corning 024ZT8-M1Y01M20 | ActiFi Composite Cable, Loose Tube, Indoor, Plenum
Regular price
$8.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 024ZT8-M1Y01M20 | ActiFi Composite Cable, Loose Tube, Indoo...
Regular price
$8.10
Unit price
Brand: Corning
|
SKU:
370-COROS2LT16AWG-24
Regular price
$8.10
Unit price
Shipping calculated at checkout.
Description
Description

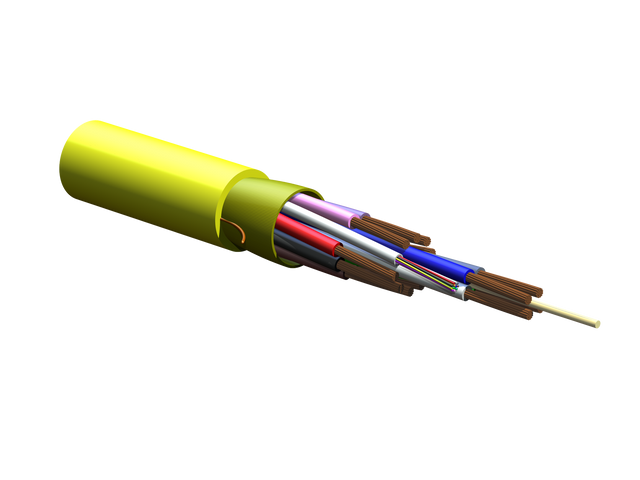

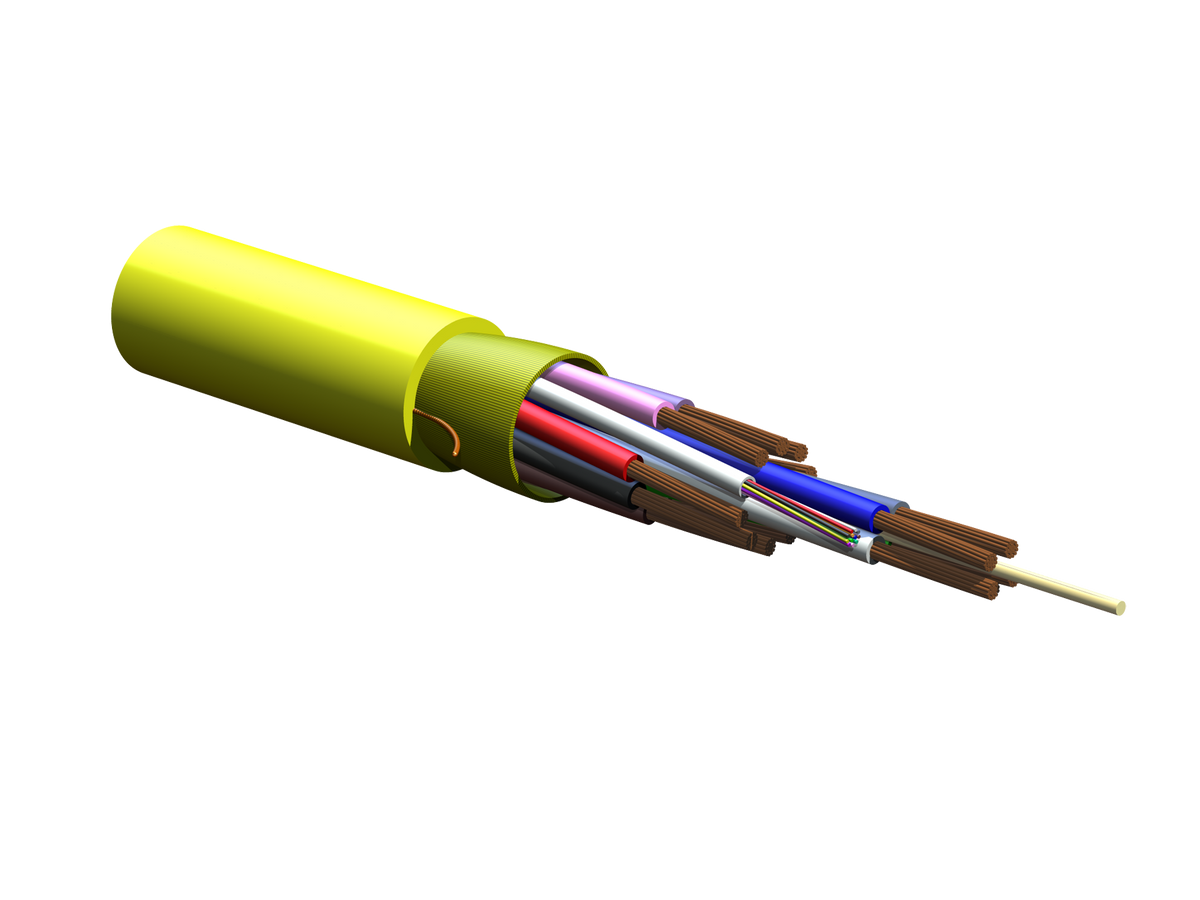

Corning 024ZT8-M1Y01M20 | ActiFi Composite Cable, Loose Tube, Indoor, Plenum 24 F, 12 Cu Conductor, 16AWG
Corning - 024ZT8-M1Y01M20 - Features
- Mutual capacitance between adjacent conductors
- <50 pF/ft
- Conductor insulation material and thickness
- PVC insulation, thickness varies depending on AWG size
- Individual fibers
- Easily accessible for termination
- 2, 4, 6, 8, 12 or 24 ClearCurve
- Ultra fibers
- 2-in-1 composite cable design
- One cable meets power and signal needs
- Conductor color code
- Closely follows Telcordia fiber color code
- 12, 14, 16, 18, or 20 AWG copper conductors
- Power transmission with flexibility in design
- Common Installations
- Compliant with ICEA S-83-596
Specifications
Specifications
Corning - 024ZT8-M1Y01M20 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Copper Cabling Infrastructure
- Voice and Data Cable
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 024ZT8-M1Y01M20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 024ZT8-M1Y01M20 |
| Environment | Indoor |
| Cable Type | Loose Tube |
| Fiber Category | SMF-28 Ultra fiber |
| Flame Rating | Plenum CL3P |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 24 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) Article 800 |
| Common Installations | Compliant with ICEA S-83-596 (compliant at tensile loads listed in the specifications table) |
| Design and Test Criteria | ICEA S-120-742, UL 13, 300 VAC, 80 C, ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 0 °C (32 °F to 32 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

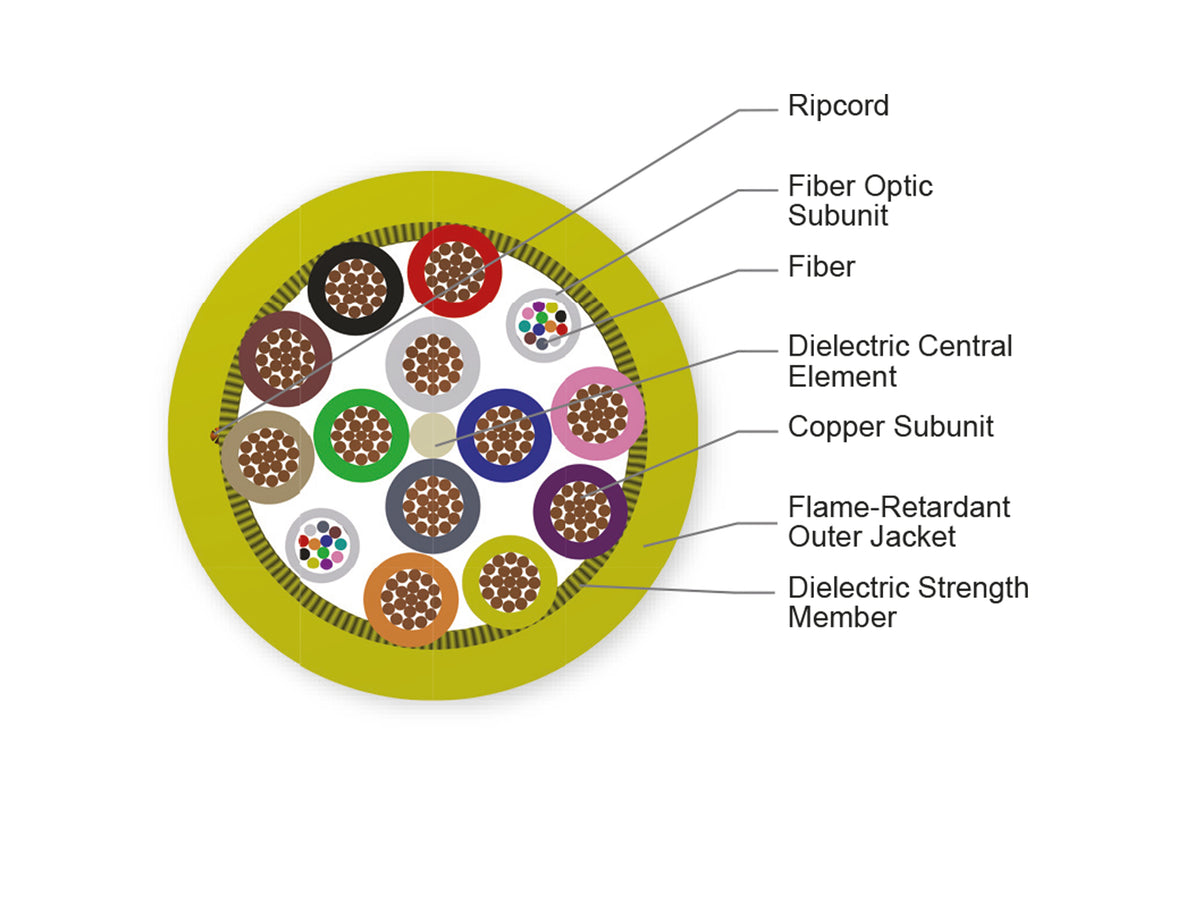

| Cable Design | - |
| Central Element | Yarn |
| Fiber Count | 24 |
| Buffer Tube Color Coding | Yellow |
| Number of Ripcords | 1 |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Buffer Tube Color | White |
| Buffer Tube Diameter | 2 mm (0.08 in) |
| Conductor | 16 AWG |
| Number of Active Tubes | 2 |
| Number of Conductors | 12 |
| Number of Tube Positions | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 1334 N (299.9 lbf) |
| Min. Bend Radius Installation | 168 mm (6.61 in) |
| Min. Bend Radius Operation | 111.76 mm (4.4 in) |
| Nominal Outer Diameter | 11.2 mm (0.44 in ) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | ITU-T G.657.A1 |
| Ordering Information | - |
| Weight | 23443 kg/km (15752.97 lb/1000 ft) |
