Brand: Corning
|
SKU:
937987

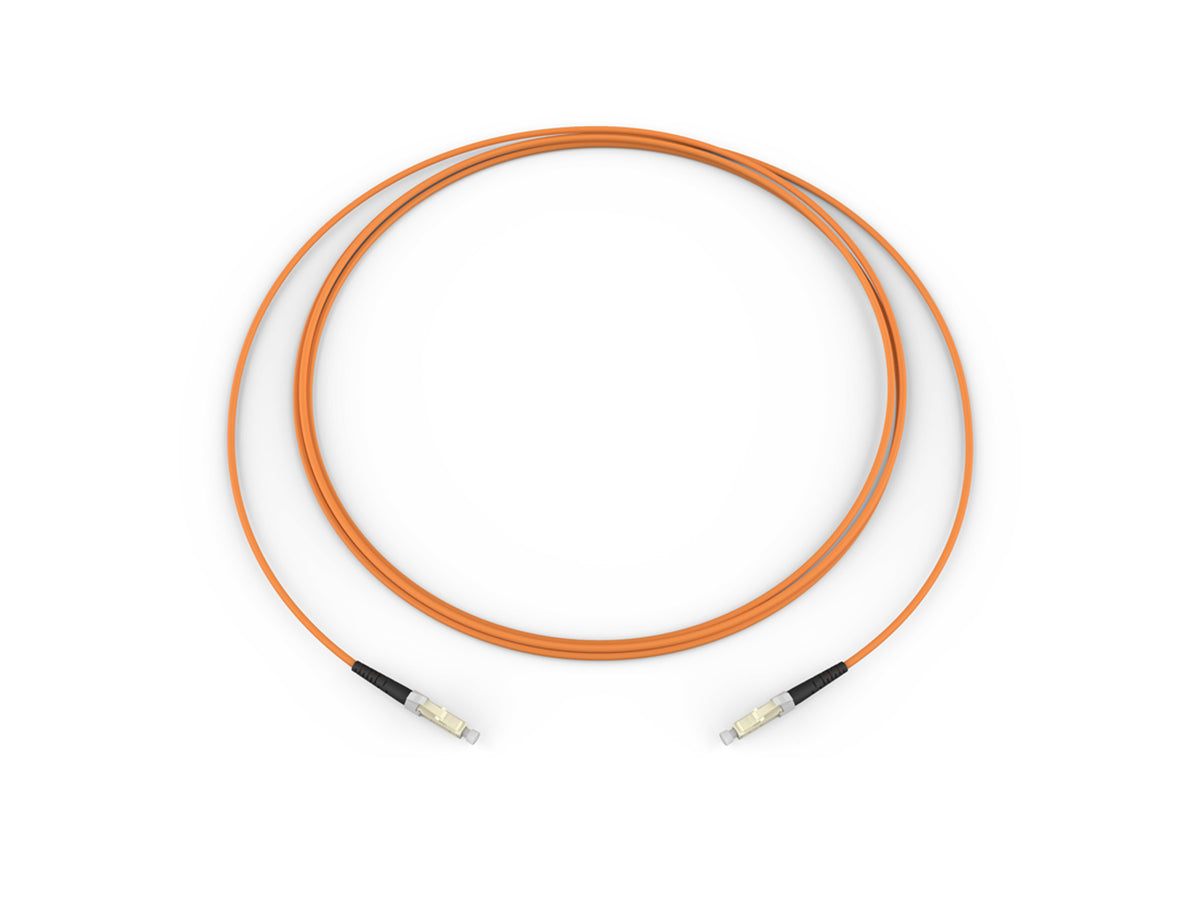

Corning 030301K2130003M | Fiber Optic Jumper, 1 F, LC to LC, Tight-Buffered Cable, Riser, 2.0 mm
Regular price
$22.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 030301K2130003M | Fiber Optic Jumper, 1 F, LC to LC, Tight-...
Regular price
$22.14
Unit price
Description
Description
Corning 030301K2130003M | Fiber Optic Jumper, 1 F, LC to LC, Tight-Buffered Cable, Riser, 2.0 mm Standard LC Simplex MM / Standard LC Simplex MM, OM1 62.5um, 1F, Single Fiber Riser, Standard Orange Jacket 3 Meters
Corning - 030301K2130003M - Features
- Flame-retardant jacket
- Rugged and durable
- Superior Performance Testing
- Every termination is tested to ensure the highest in network performance
- State-Of-The-Art Manufacturing Processes
- Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency
- Corning advantage
- Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
Specifications
Specifications
Corning - 030301K2130003M - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
- Simplex Indoor Cable Assemblies
Corning - 030301K2130003M - Specifications
| General Specifications | - |
|---|---|
| Product Number | 030301K2130003M |
| EAN Code | 4056418603544 |
| Flame Rating | Riser (OFNR) |
| Fiber Category | 62.5 µm MM (OM1) |
| Cable Assembly Type | Single fiber |
| Application | General Building Applications, Vertical Riser |
| Cable Type | Tight-Buffered |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 1 |
| Outer Jacket Color | Orange |
| Optical Characteristics | - |
| Fiber Code | K |
| Fiber Name | 62.5 µm MM (OM1) |
| Performance Option Code | 30 |
| Fiber Core Diameter | 62.5 µm |
| Minimum Effective Modal Bandwidth (EMB) | 220 MHz |
| Maximum Attenuation | 3.4 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz / 500 MHz |
| Serial 1 Gigabit Ethernet | 300 m / 550 m |
| Serial 10 Gigabit Ethernet | 33 m / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM1 |
| Specifications - Connector A | - |
| Insertion Loss, Typical | 0.35 dB |
| Boot Color | Black |
| Connector Type | LC |
| Ferrule Material | Ceramic |
| Housing Color | Beige |
| Housing Material | Composite |
| Specifications - Connector B | - |
| Insertion Loss, Typical | 0.35 dB |
| Boot Color | Black |
| Connector Type | LC |
| Ferrule Material | Ceramic |
| Housing Color | Beige |
| Housing Material | Composite |
| Ordering Information | - |
| Units per Delivery | 1/1" |
