Brand: Corning
|
SKU:
373-COROS2LTDLSZH-36
Corning 036EUL-T3601D2M | Mining and Petrochemical Tray-Rated, Loose Tube, Gel-Free Cable
Regular price
$15.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 036EUL-T3601D2M | Mining and Petrochemical Tray-Rated, Loos...
Regular price
$15.59
Unit price
Brand: Corning
|
SKU:
373-COROS2LTDLSZH-36
Regular price
$15.59
Unit price
Shipping calculated at checkout.
Description
Description

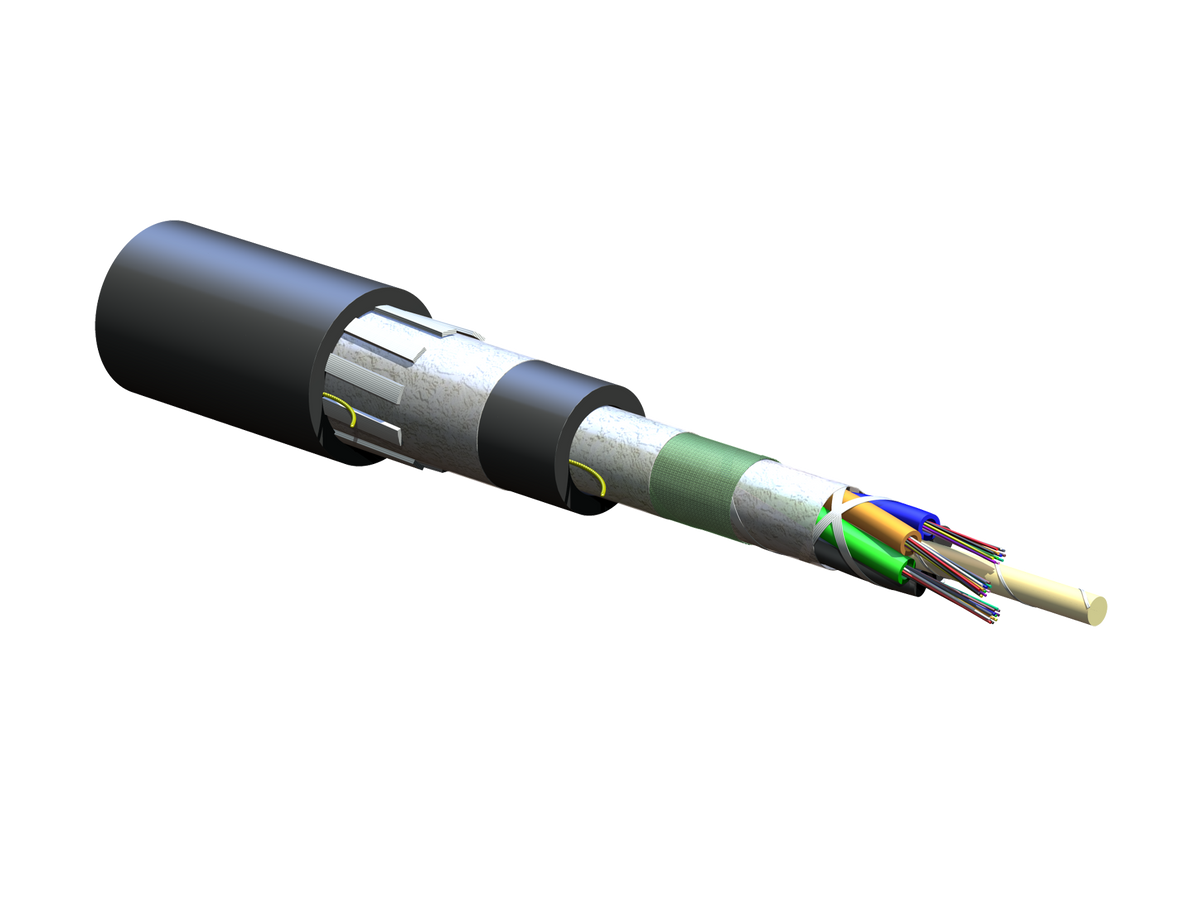

Corning 036EUL-T3601D2M | Mining and Petrochemical Tray-Rated, Loose Tube, Gel-Free Cable 36 F, Single-mode (OS2)
Corning - 036EUL-T3601D2M - Features
- Loose tube construction
- Stable and highly reliable transmission parameters
- Waterblocking technology
- Allows efficient and craft-friendly cable preparation
- Extra tough double jackets
- Ideal for harsh environments
- Listed MSHA 30 CFR Pt 7-K
- Mining Safety and Health Administration (MSHA) approved
- Common installations
- Outdoor aerial and duct
Specifications
Specifications
Corning - 036EUL-T3601D2M - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor LSZH Cables
Corning - 036EUL-T3601D2M - Specifications
| General Specifications | - |
|---|---|
| Product Number | 036EUL-T3601D2M |
| EAN Code | 4056418160535 |
| Environment | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Product Type | Dielectric |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | LSZH (OFN-LS) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal, Tray-Rated |
| Fiber Count | 36 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | NFPA 130, National Electrical Code (NEC) OFN-LS, Sunlight Resistant (SUN RES), IEEE-1202 flame test, Suitable for Direct Burial (DIR BUR), IEC 60332-3, IEC 60754-2, IEC 61034 |
| Common Installations | Outdoor aerial and duct; indoor general purpose horizontal according to NEC Article 770 |
| Design and Test Criteria | ANSI/ICEA S-104-696, UL 1666, UL 1685, CSA OFN-LS FT-4-ST1, CSA C22.2 No. 230 and No. 232 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to -30 °C (-22 °F to -22 °F ) |
| Temperature Range, Operation | -50 °C to 75 °C (-58 °F to 167 °F ) |
| Temperature Range, Storage | -50 °C to -50 °C (-58 °F to -58 °F ) |

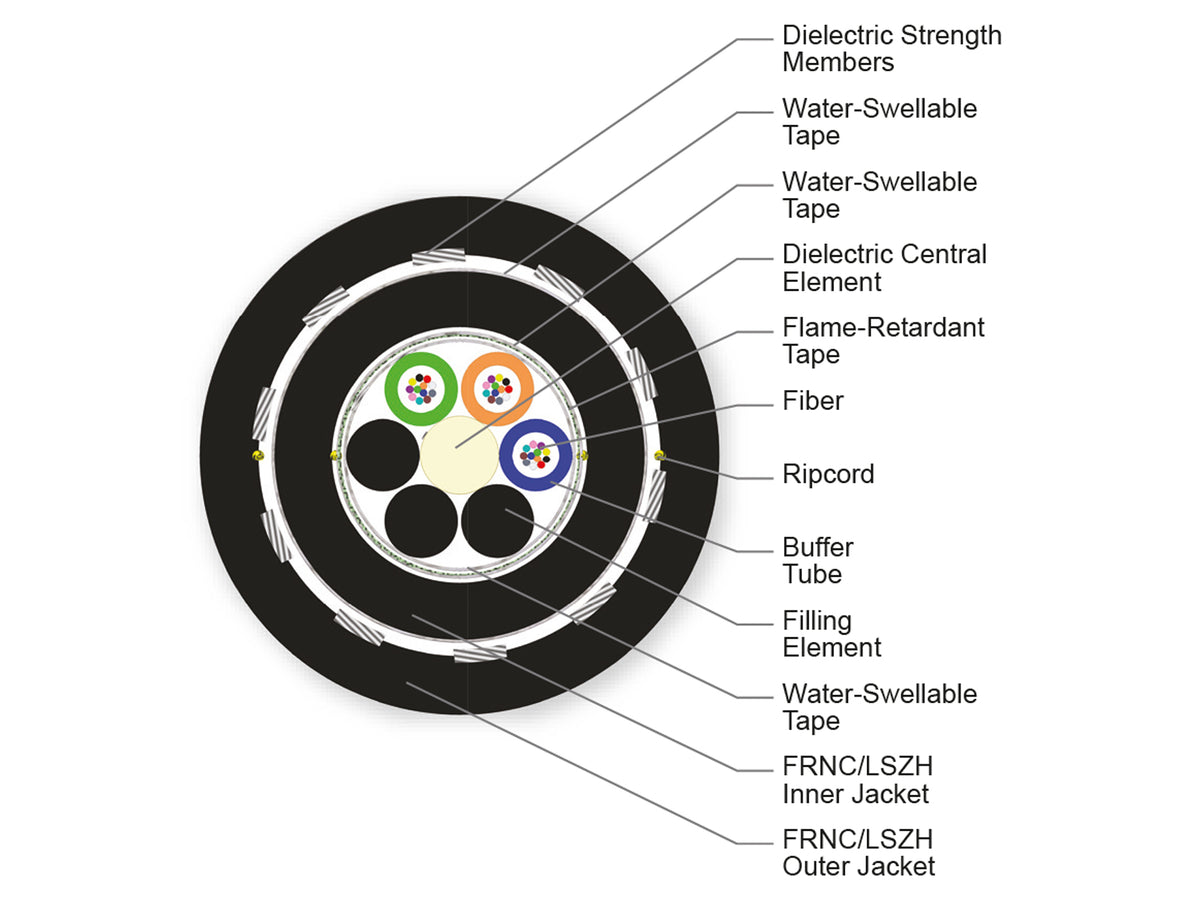

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 36 |
| Buffer Tube Color Coding | Blue, Orange, Green |
| Number of Ripcords | 4 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Buffer Tube Color | Blue, Orange, Green |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Inner Jacket Material | Flame-retardant |
| Number of Active Tubes | 3 |
| Number of Filling Elements | 3 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Tape, Layer 1 | Water-swellable |
| Tape, Layer 2 | Flame-retardant tape |
| Tape, Layer 3 | Water-swellable |
| Tape, Layer 4 | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Compressive Loading | 2400 N/cm |
| Max. Tensile Strength, Long-Term | 1500 N (337.21 lbf) |
| Max. Tensile Strength, Short-Term | 4500 N (1011.64 lbf) |
| Min. Bend Radius Installation | 264 mm (10.39 in) |
| Min. Bend Radius Operation | 176 mm (6.93 in) |
| Nominal Outer Diameter | 17.6 mm (0.69 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 299 kg/km (200.92 lb/1000 ft) |
| Chemical Resistance Characteristics | Search: |
| Chemical | Exposure Duration |
| Exposure Temperature | ASTM #2 Oil |
| 4 h | 70 °C (158 °F) |
| De-Icing Fluid | 24 h |
| 50 °C (122 °F) | Diesel Fuel, MIL-F 16884 |
| 24 h | 35 °C (95 °F) |
| Hydraulic Fuel, MIL-H 16762 | 24 h |
| 49 °C (120.2 °F) | Hydraulic Fuel, MIL-H 5606 |
| 24 h | 49 °C (120.2 °F) |
| Lubricating Oil, MIL-L23699 | 24 h |
| 49 °C (120.2 °F) | Vegetation Killer |
| 168 h | 50 °C (122 °F) |
