Brand: Corning
|
SKU:
370-COROM4-TBA-36

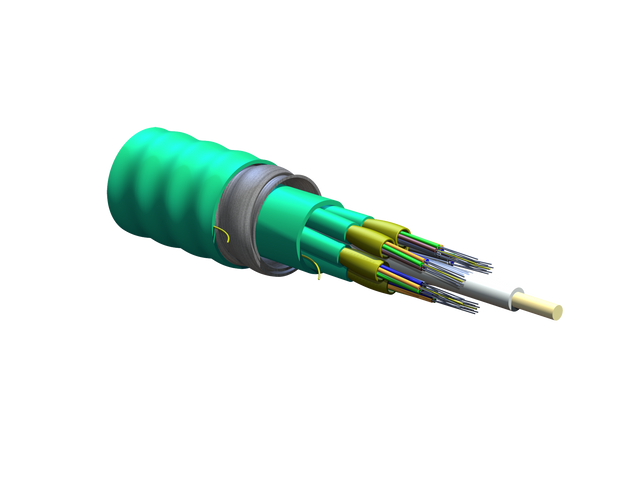

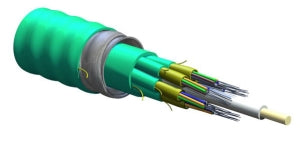

Corning 036T88-61190-A3 | MIC Unitized Tight-Buffered, Interlocking Armored Cable, Plenum
Regular price
$16.97
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 036T88-61190-A3 | MIC Unitized Tight-Buffered, Interlocking...
Regular price
$16.97
Unit price
Brand: Corning
|
SKU:
370-COROM4-TBA-36
Regular price
$16.97
Unit price
Description
Description
Corning 036T88-61190-A3 | MIC Unitized Tight-Buffered, Interlocking Armored Cable, Plenum 36 F, 50 µm multimode (OM4)
Corning - 036T88-61190-A3 - Features
- 6-fiber jacketed subunits
- Quick and easy identification
- Flexible, interlocking armor design
- Seven times crush protection compared to non-armored cables
- TBII buffered fibers
- Easy, consistent stripping
- Flame-retardant jacket
- Rugged and durable
Specifications
Specifications
Corning - 036T88-61190-A3 - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Fiber Optic Cable
- Fiber Optic Indoor Cable
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 036T88-61190-A3 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 036T88-61190-A3 |
| EAN Code | 4056418176895 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Interlocking Armor |
| Fiber Category | 50 µm MM (OM4) |
| Flame Rating | Plenum (OFCP) |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 36 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCP, CSA FT-6, ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Cable Design | - |
| Central Element | Jacketed GRP |
| Fiber Count | 36 |
| Number of Ripcords | 8 |
| Outer Jacket Color | Aqua |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Fibers per Subunit | 6 |
| Number of Active Tubes | 6 |
| Subunit Color | Aqua |
| Subunit Diameter | 4.4 mm (0.17 in) |
| Tight Buffer Color Subunit | Blue, Orange, Green, Brown, Slate, White |
| Flame Rating | Plenum (OFCP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 200 N (44.96 lbf) |
| Max. Tensile Strength, Short-Term | 660 N (148.37 lbf) |
| Min. Bend Radius Installation | 338 mm (13.31 in) |
| Min. Bend Radius Operation | 225 mm (8.86 in) |
| Nominal Inner Cable Diameter | 14.8 mm (0.58 in) |
| Nominal Outer Diameter | 22.5 mm (0.89 in ) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 90 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 550 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM4 |
| Ordering Information | - |
| Weight | 3859 kg/km (2593.13 lb/1000 ft) |
| Type | Interlocking Cable |
| Application | Indoor |
| Cable Type | Tight Buffered |
| Transmission Mode | Multimode |
| Fiber Type | OM4 |
| Jacket Flame Rating | OFCP FT6 |
| Jacket Material | Flame Retardant |
| Jacket Color | Aqua |
| Fiber Count | 36 |
| Speed | 50um |
| Outside Diameter | 0.93 in. (23.6mm) |
| Armored | Yes |
| Armor Type | Interlocking Aluminum |
| Construction | Tight Buffer, 900 um |
