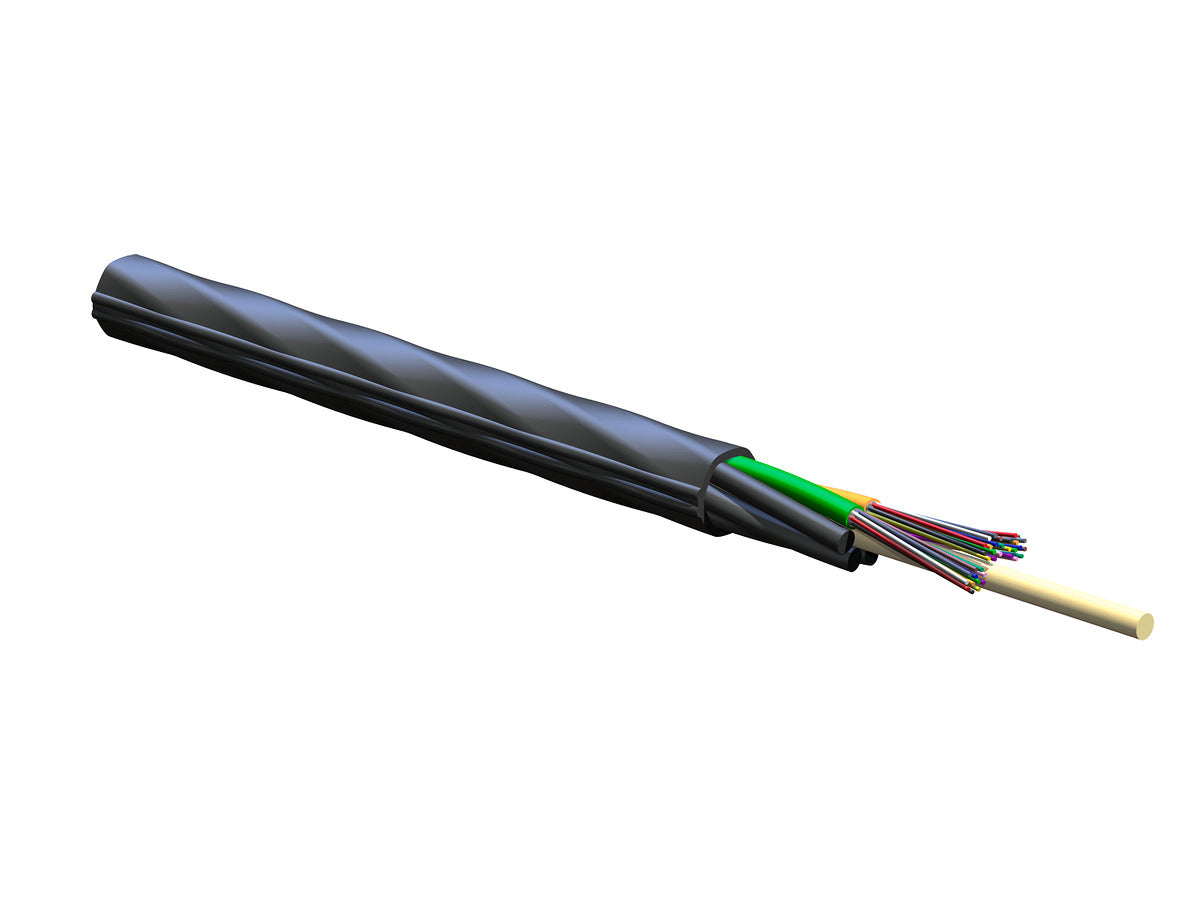

Corning 036ZM4-T4F22A20 | MiniXtend Cable with Binderless* FastAccess Technology 36 F, SMF-28 Ultra fiber, Single-mode (G.652.D/G.657.A1)
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 036ZM4-T4F22A20 | MiniXtend Cable with Binderless* FastAcce...
Regular price
$1.46
Unit price
Brand: Corning
|
SKU:
372-COROS2-LTDMX-36
Regular price
$1.46
Unit price
Shipping calculated at checkout.
Description
Description
Corning 036ZM4-T4F22A20 | MiniXtend Cable with Binderless* FastAccess Technology 36 F, SMF-28 Ultra fiber, Single-mode (G.652.D/G.657.A1)
Specifications
Specifications
Corning - 036ZM4-T4F22A20 - Product Categories
- Fiber Optic Cables
- Outdoor
- Outdoor Duct Cables
Corning - 036ZM4-T4F22A20 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 036ZM4-T4F22A20 |
| Item Description | MiniXtend Cable with Binderless* FastAccess Technology 36 F, SMF-28 Ultra fiber, Single-mode (G.652.D/G.657.A1) |
| General Specifications | - |
| Product Number | 036ZM4-T4F22A20 |
| EAN Code | 4056418140315 |
| Environment | Outdoor |
| Cable Type | Stranded Loose Tube Micro Cable |
| Product Type | Dielectric |
| Fiber Category | SMF-28 Ultra fiber |
| Application | Microduct |
| Fiber Count | 36 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor microduct, indoor when installed according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | IEC 60794-5-10 |
| Corning Recommendations | This cable should be placed in microduct for all applications, including aerial. |
| Environmental Conditions | - |
| Temperature Range, Installation | -15°C to 60°C (5°F to 140°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

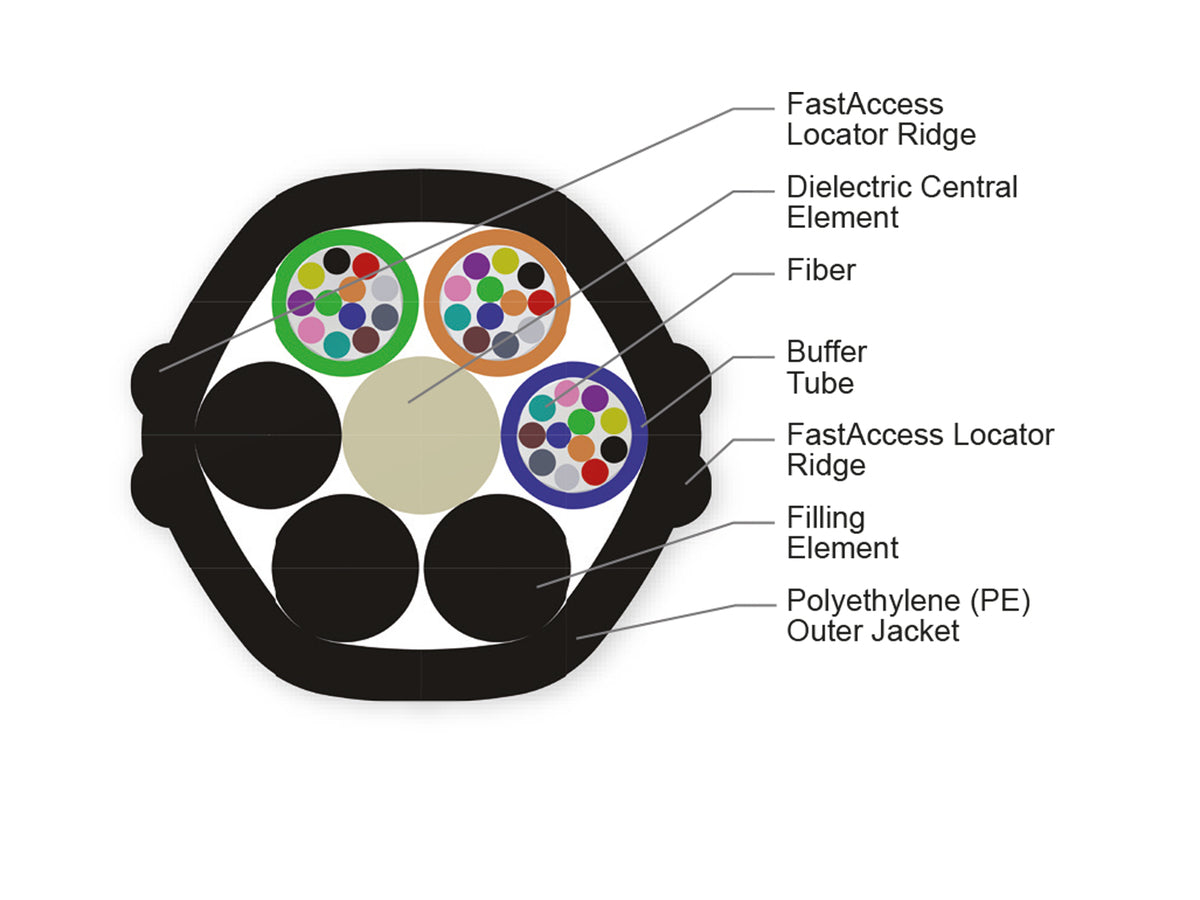

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 36 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Buffer Tube Color | Blue, Orange, Green |
| Buffer Tube Diameter | 1.4mm (0.06in) |
| Number of Active Tubes | 3 |
| Number of Filling Elements | 3 |
| Number of Tube Positions | 6 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Color Code Standards | Telcordia |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 890N (200.08lbf) |
| Nominal Outer Diameter | 5.4mm (0.21in) |
| Min. Bend Diameter Installation | 216mm (8.5in) |
| Min. Bend Diameter Operation | 164mm (6.46in) |
| Min. Duct Size Diameter | 8mm (0.31in) |
| Optimal Duct Size | 10mm (0.39in) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 22 |
| Maximum Attenuation | 0.34 dB/km / 0.34 dB/km / 0.22 dB/km |
| Typical Attenuation | 0.32 / 0.32 / 0.18 |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D/G.657.A1 |
| Dimensions | - |
| Cable Weight | 23kg/km (15.46lb/1000 ft) |
