Brand: Corning
|
SKU:
10468719

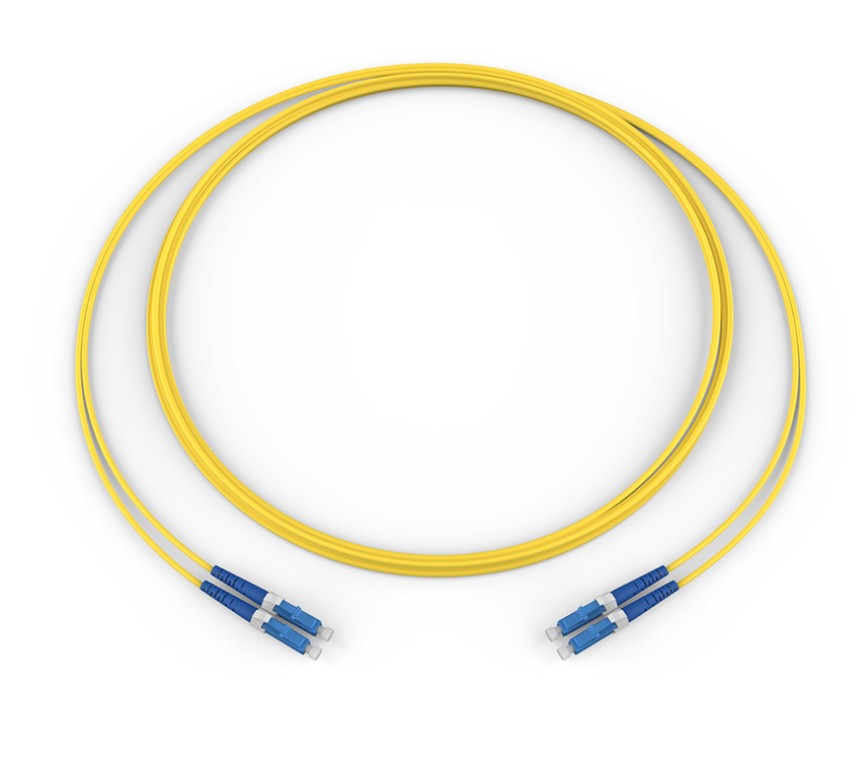

Corning 040402G51200012 | Fiber Optic Jumper, 2 F, LC Duplex to LC Duplex, Zipcord Cable, 12 Meters
Regular price
$28.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 040402G51200012 | Fiber Optic Jumper, 2 F, LC Duplex to LC ...
Regular price
$28.72
Unit price
Description
Description
Corning 040402G51200012 | Fiber Optic Jumper, 2 F, LC Duplex to LC Duplex, Zipcord Cable, 12 Meters
Fiber Optic Jumper, 2 F, LC Duplex to LC Duplex, Zipcord Cable, Riser, 2.0 mm legs Standard LC UPC Duplex SM / Standard LC UPC Duplex SM, SMF Ultra, 2F, Zipcord Riser, Standard Yellow Jacket 12 Meters.
Corning - 040402G51200012 - Features
- Flame-retardant jacket
- Superior Performance Testing
- State-Of-The-Art Manufacturing Processes
- Corning advantage
Specifications
Specifications
Corning - 040402G51200012 - Specifications
| EAN Code | 4056418777559 |
|---|---|
| Flame Rating | Riser (OFNR) |
| Fiber Category | Single-mode (OS2) |
| Cable Assembly Type | Two Fiber |
| Application | General Building Applications, Vertical Riser |
| Cable Type | Tight-Buffered |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Nominal Outer Diameter | 4 mm (0.16 in ) |
| Fiber Type | Single-Mode Ultra-Bendable Fiber |
| Fiber Compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Fiber Core Diameter | 8.2 µm |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | OS2 |
| Reflectance, Typical | ? -58 dB |
| Polish | UPC |
| Insertion Loss, Typical | 0.15 dB |
| Boot Color | Blue |
| Connector Type | LC Duplex |
| Ferrule Material | Ceramic |
| Length | 1 m (3.28 ft) |
| Plug Type | Heat-shrink sleeve |
| Plug Height | 5.5 mm (0.22 in) |
| Plug Width | 3.5 mm (0.14 in) |
| Plug Depth | 25.4 mm (1 in) |
