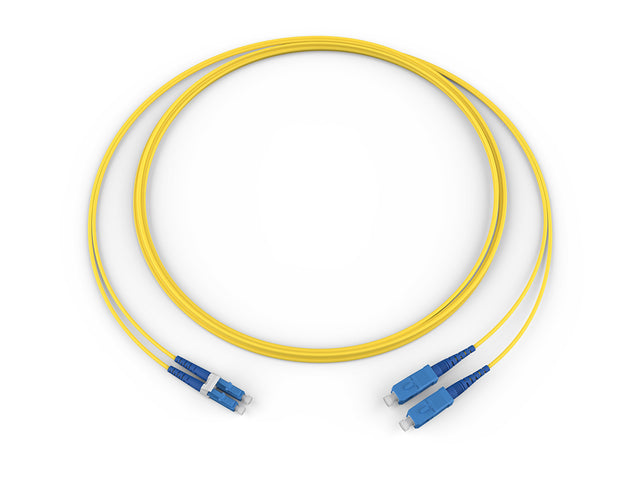

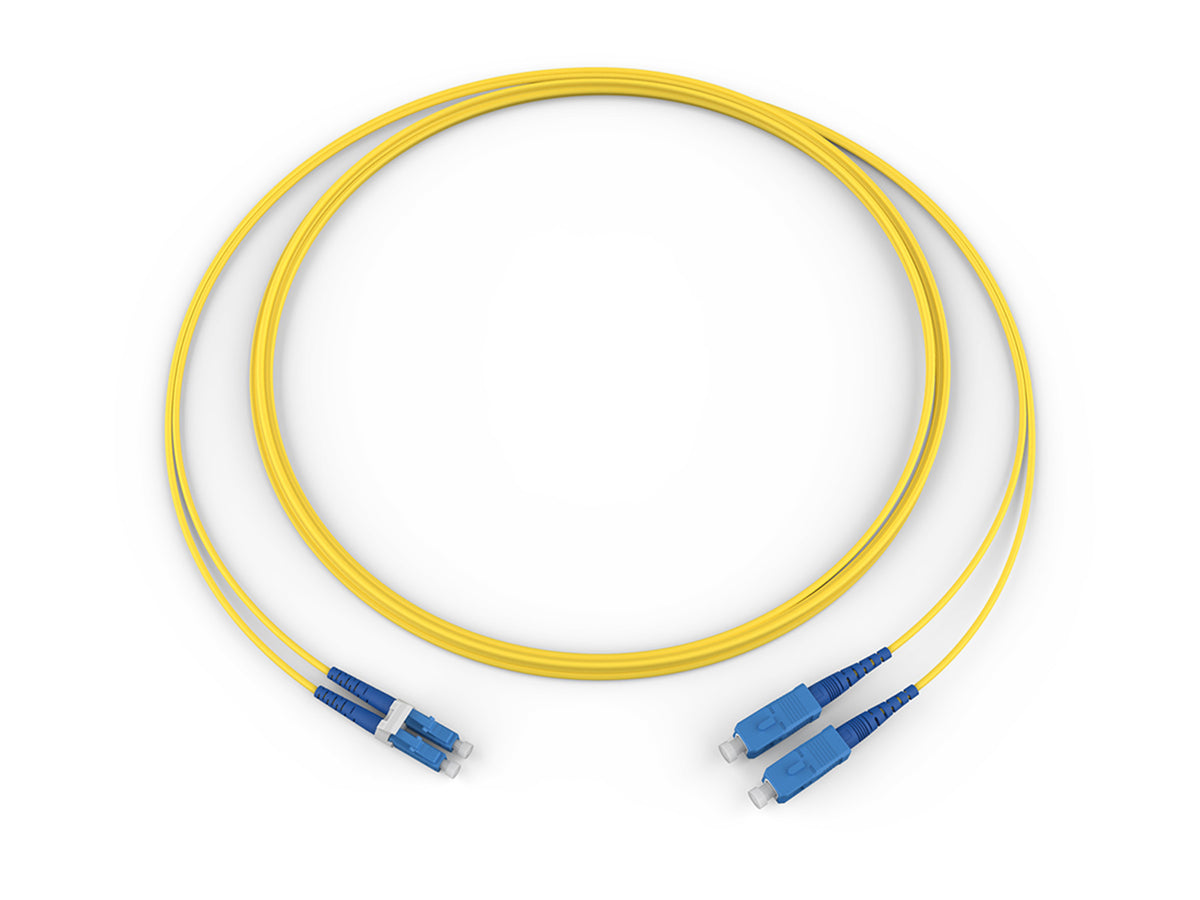

Corning 045802R5116002M | Fiber Optic Jumper, 2 F, LC Duplex to SC, Zipcord Cable, Riser, 1.6 mm legs
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 045802R5116002M | Fiber Optic Jumper, 2 F, LC Duplex to SC,...
Description
Description
Two-fiber cable assemblies are offered with a variety of connector and cable combinations. Connector options include LC, SC, FC, ST compatible, and MT-RJ. RoHS compliant Zipcord, DFX, MIC, Fan-out, and RIC cables are available.

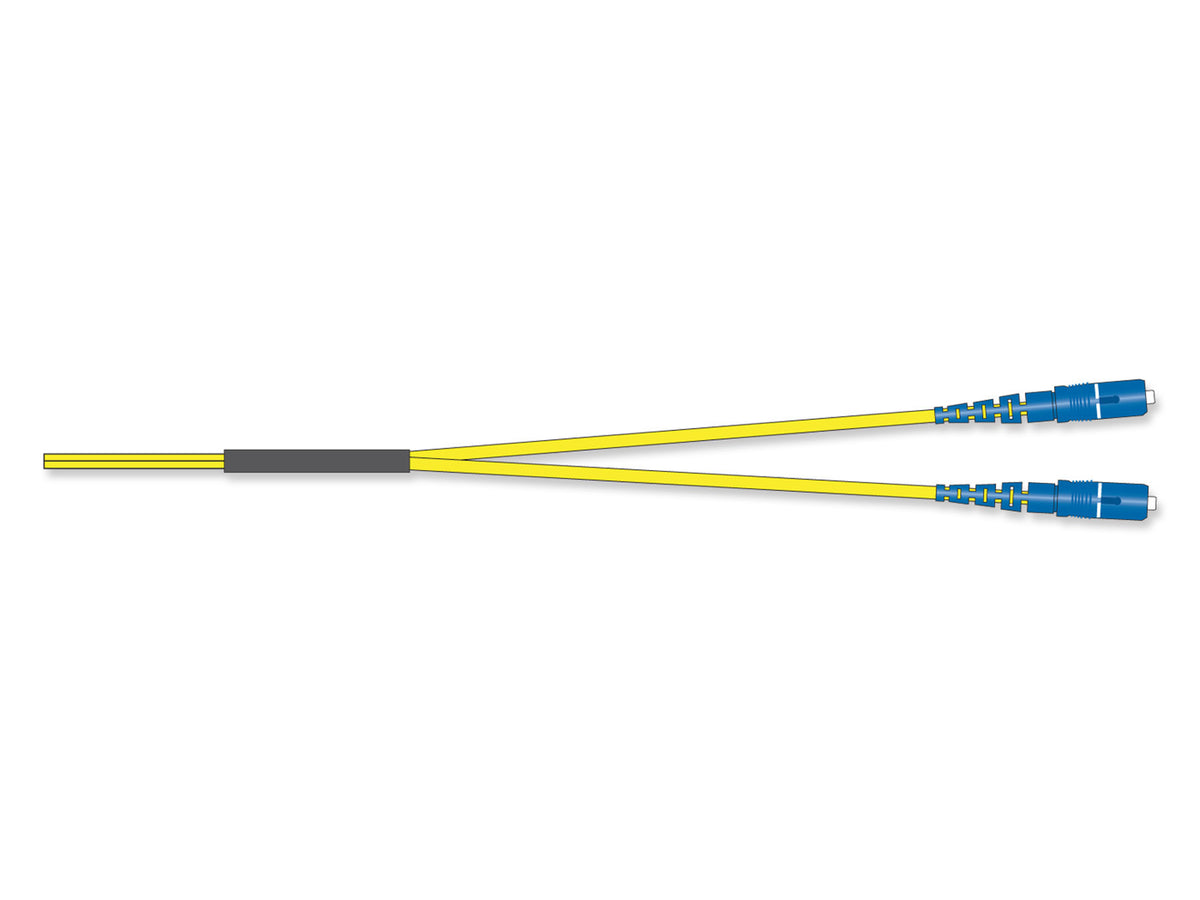

Additional detailed furcation images are available in the Cable Assembly Family Specification Sheet.
Many of our fiber optic cable assemblies are highly configurable. If you don’t see what you are looking for here, please review the ordering matrix contained in the family spec sheet, or contact Customer Care at 1-800-743-2675.
Corning - 045802R5116002M - Features
- Flame-retardant jacket
- Rugged and durable
- Superior Performance Testing
- Every termination is tested to ensure the highest in network performance
- State-Of-The-Art Manufacturing Processes
- Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency
- Corning advantage
- Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
Specifications
Specifications
Corning - 045802R5116002M - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- DataComm
- Patch Cables
- Fiber Patch Cables
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
Corning - 045802R5116002M - Specifications
| General Specifications | - |
|---|---|
| Product Number | 045802R5116002M |
| EAN Code | 4056418604404 |
| Flame Rating | Riser (OFNR) |
| Fiber Category | Bend-insensitive SM (OS2) |
| Cable Assembly Type | Two Fiber |
| Application | General Building Applications, Vertical Riser |
| Cable Type | Tight-Buffered |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 2 |
| Outer Jacket Color | Yellow |
| Mechanical Specifications | - |
| Cable Length | 66 ft |
| Optical Characteristics | - |
| Fiber Code | G |
| Fiber Type | Single-Mode Ultra-Bendable Fiber |
| Fiber Compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Fiber Core Diameter | 8.2 µm |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Serial 1 Gigabit Ethernet | 5000 MHz*km / - / - |
| Serial 10 Gigabit Ethernet | 10000 MHz*km / - / 40000 MHz*km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | OS2 |
| Specifications - Connector A | - |
| Reflectance, Typical | ? -58 dB |
| Polish | UPC |
| Insertion Loss, Typical | 0.15 dB |
| Boot Color | Blue |
| Connector Type | LC Duplex |
| Ferrule Material | Ceramic |
| Housing Color | Blue |
| Housing Material | Composite |
| Specifications - Connector B | - |
| Reflectance, Typical | ? -58 dB |
| Polish | UPC |
| Insertion Loss, Typical | 0.15 dB |
| Boot Color | Blue |
| Connector Type | SC |
| Ferrule Material | Ceramic |
| Housing Color | Blue |
| Ordering Information | - |
| Units per Delivery | 1/1" |
| Furcation - Connector A | - |
| Leg Diameter | 1.6 mm (0.06 in) |
| Plug Type | Heat-shrink sleeve |
| Plug Height | 4.8 mm (0.19 in) |
| Plug Width | 3.1 mm (0.12 in) |
| Plug Depth | 25.4 mm (1 in) |
| Leg Length | 254 mm -0 / +38.1mm (10 in -0 / +1.5in) |
| Furcation - Connector B | - |
| Leg Diameter | 1.6 mm (0.06 in) |
| Plug Type | Heat-shrink sleeve |
| Plug Height | 4.8 mm (0.19 in) |
| Plug Width | 3.1 mm (0.12 in) |
| Plug Depth | 25.4 mm (1 in) |
| Leg Length | 0 mm +38.1mm (0 in +1.5in) |
| Connector Type | LC - SC |
| Fiber Type | OS2 |
| Length | 2 M | 6.56 FT. |
| Number of Fibers | 2 FIBER |
| Type | PATCH CORDS |
| UNSPSC Code | 26121650 |
