Brand: Corning
|
SKU:
897448

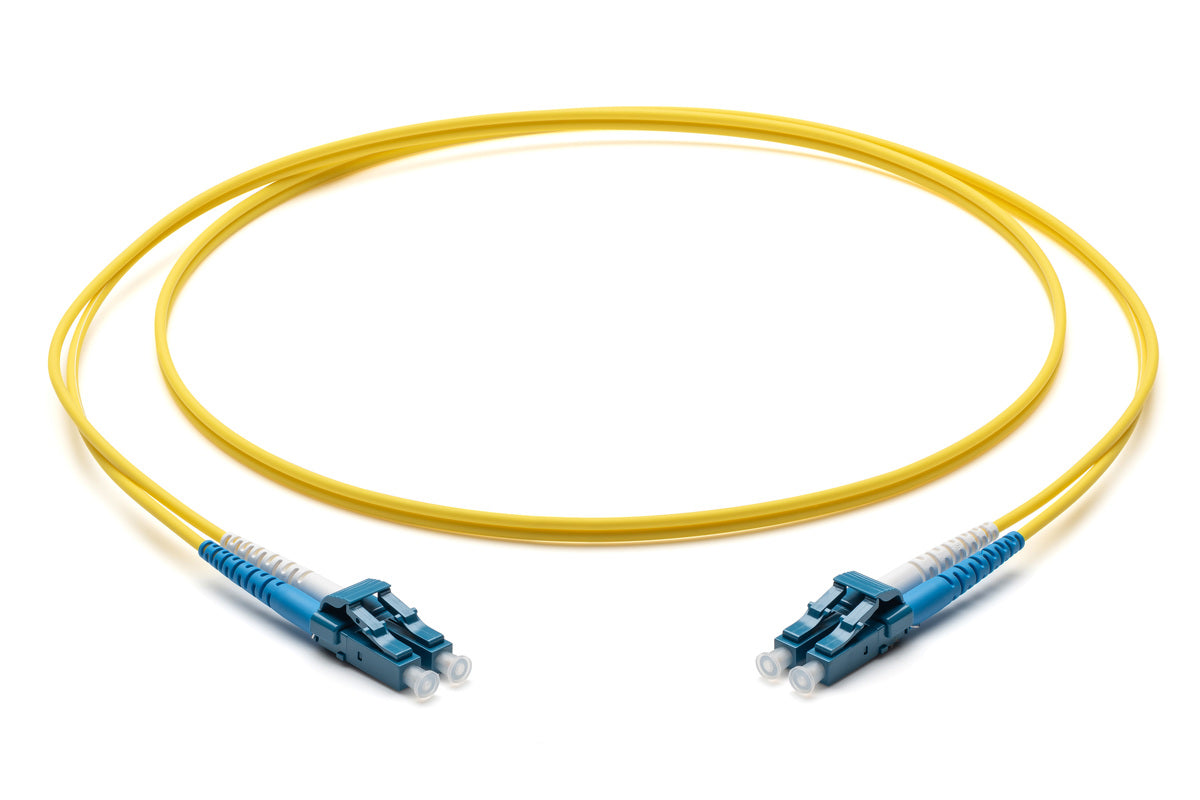

Corning 047202G5Z20002M | Professional 2.0 mm 1 Fiber Patch Cord Corning
Regular price
$31.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 047202G5Z20002M | Professional 2.0 mm 1 Fiber Patch Cord Co...
Regular price
$31.98
Unit price
Description
Description
Corning 047202G5Z20002M | Professional 2.0 mm 1 Fiber Patch Cord Corning
Corning - 047202G5Z20002M - Features
- State-of-the-art manufacturing processes
- Advanced technology results in unsurpassed product consistency and quality
- Global operations
- Worldwide manufacturing facilities and end-to-end vertical integration across the entire process ensure reliable supply and mitigate trade barriers or supply
- Flexible design options
- Choice of materials for strength elements and fiber properties for various application requirements
- Superior Performance Testing
- Every termination is tested to ensure the highest in network performance
Specifications
Specifications
Corning - 047202G5Z20002M - Specifications
| Minimum Bend Radius | 10 mm |
|---|---|
| Nominal Outer Diameter | 2 mm |
| Crush Resistance | 1000 N/10 cm |
| Min. Bend Radius Installation | 20 mm |
| Min. Bend Radius Operation | 10 mm |
| Fiber Code | Z |
| Performance Option Code | 25 |
| Fiber Category | OS2 |
| Fiber Type | Single-mode (OS2) / 250 µm |
| Fiber Name | Bend-Improved Single-mode (OS2) |
| Maximum Attenuation | 0.38 dB/km / 0.38 dB/km / 0.25 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Fiber Core Diameter | 8.2 µm |
| Cladding Diameter | 125 µm |
| Coating Diameter | 242 µm |
