Brand: Corning
|
SKU:
327391

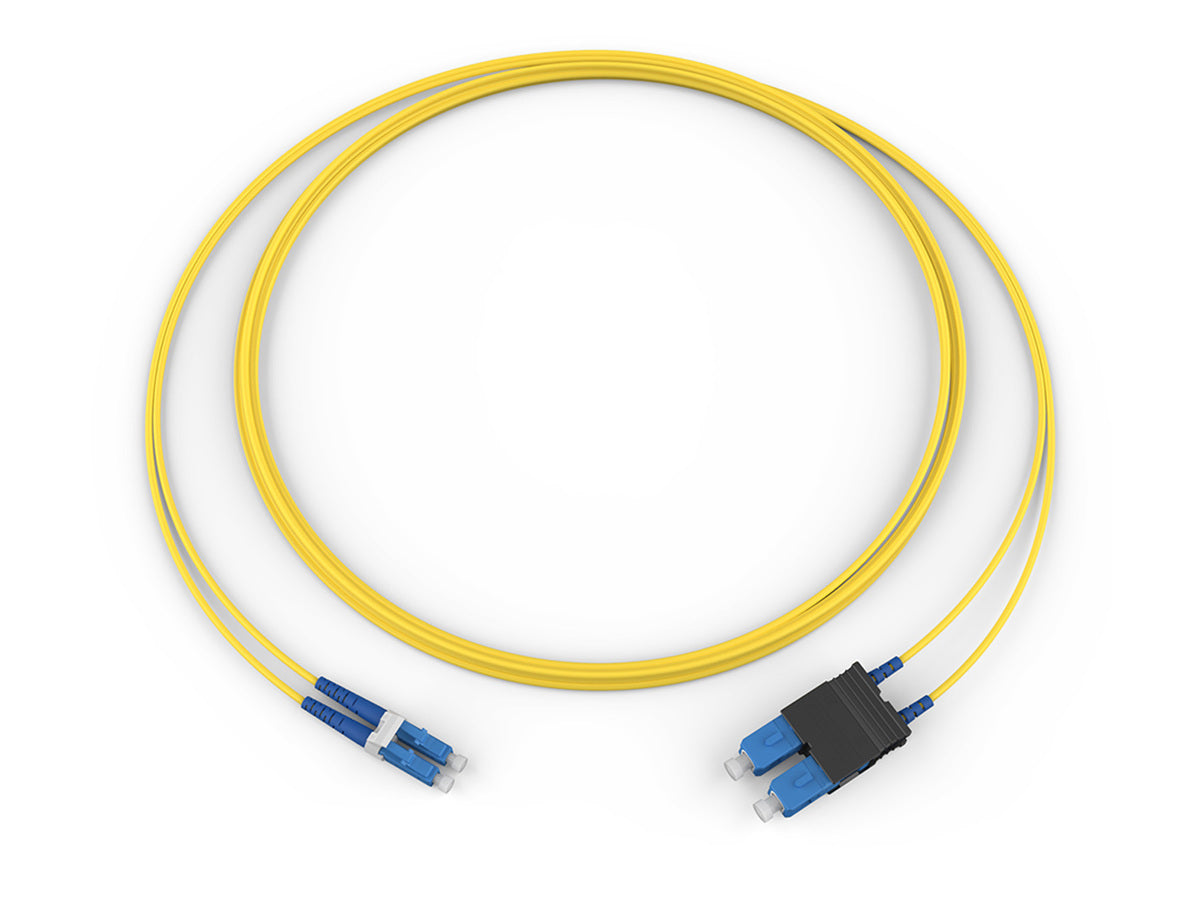

Corning 047202R5820005M | Fiber Optic Jumper, 2 F, LC Duplex to SC Duplex, Zipcord Cable, Plenum, 2.0 mm legs Standard LCUPC Duplex SM / Standard SCUPC Duplex SM, SMF, 2F, Zipcord Plenum, Standard Yellow Jacket 5 Meters
Regular price
$53.42
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 047202R5820005M | Fiber Optic Jumper, 2 F, LC Duplex to SC ...
Regular price
$53.42
Unit price
Description
Description
Corning 047202R5820005M | Fiber Optic Jumper, 2 F, LC Duplex to SC Duplex, Zipcord Cable, Plenum, 2.0 mm legs Standard LCUPC Duplex SM / Standard SCUPC Duplex SM, SMF, 2F, Zipcord Plenum, Standard Yellow Jacket 5 Meters
Specifications
Specifications
Corning - 047202R5820005M - Product Categories
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
- Two Fiber Indoor Cable Assemblies
Corning - 047202R5820005M - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 047202R5820005M |
| Item Description | Fiber Optic Jumper, 2 F, LC Duplex to SC Duplex, Zipcord Cable, Plenum, 2.0 mm legs Standard LCUPC Duplex SM / Standard SCUPC Duplex SM, SMF, 2F, Zipcord Plenum, Standard Yellow Jacket 5 Meters |
| General Specifications | - |
| Product Number | 047202R5820005M |
| EAN Code | 4056418604787 |
| Flame Rating | Plenum (OFNP) |
| Fiber Category | Bend-improved SM (OS2) |
| Cable Assembly Type | Two Fiber |
| Application | General Building Applications, Indoor Horizontal, Plenum |
| Cable Type | Tight-Buffered |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 2 |
| Outer Jacket Color | Yellow |
| Mechanical Specifications | - |
| Cable Length | 5m (16.4ft) |
| Specifications - Connector A | - |
| Reflectance, Typical | ? -58 dB |
| Polish | UPC |
| Insertion Loss, Typical | 0.15 dB |
| Boot Color | Blue |
| Connector Type | LC Duplex |
| Ferrule Material | Ceramic |
| Housing Color | Blue |
| Housing Material | Composite |
| Specifications - Connector B | - |
| Reflectance, Typical | ? -59 dB |
| Polish | UPC |
| Insertion Loss, Typical | 0.15 dB |
| Boot Color | Blue |
| Connector Type | SC Duplex |
| Ferrule Material | Ceramic |
| Housing Color | Blue |
| Ordering Information | - |
| Units per Delivery | 1/1 |
| Furcation - Connector A | - |
| Leg Diameter | 2mm (0.08in) |
| Plug Type | Heat-shrink sleeve |
| Plug Height | 5.5mm (0.22in) |
| Plug Width | 3.5mm (0.14in) |
| Plug Depth | 25.4mm (1in) |
| Leg Length | 254mm -0 / +38.1mm (10in -0 / +1.5in) |
