Brand: Corning
|
SKU:
10122815

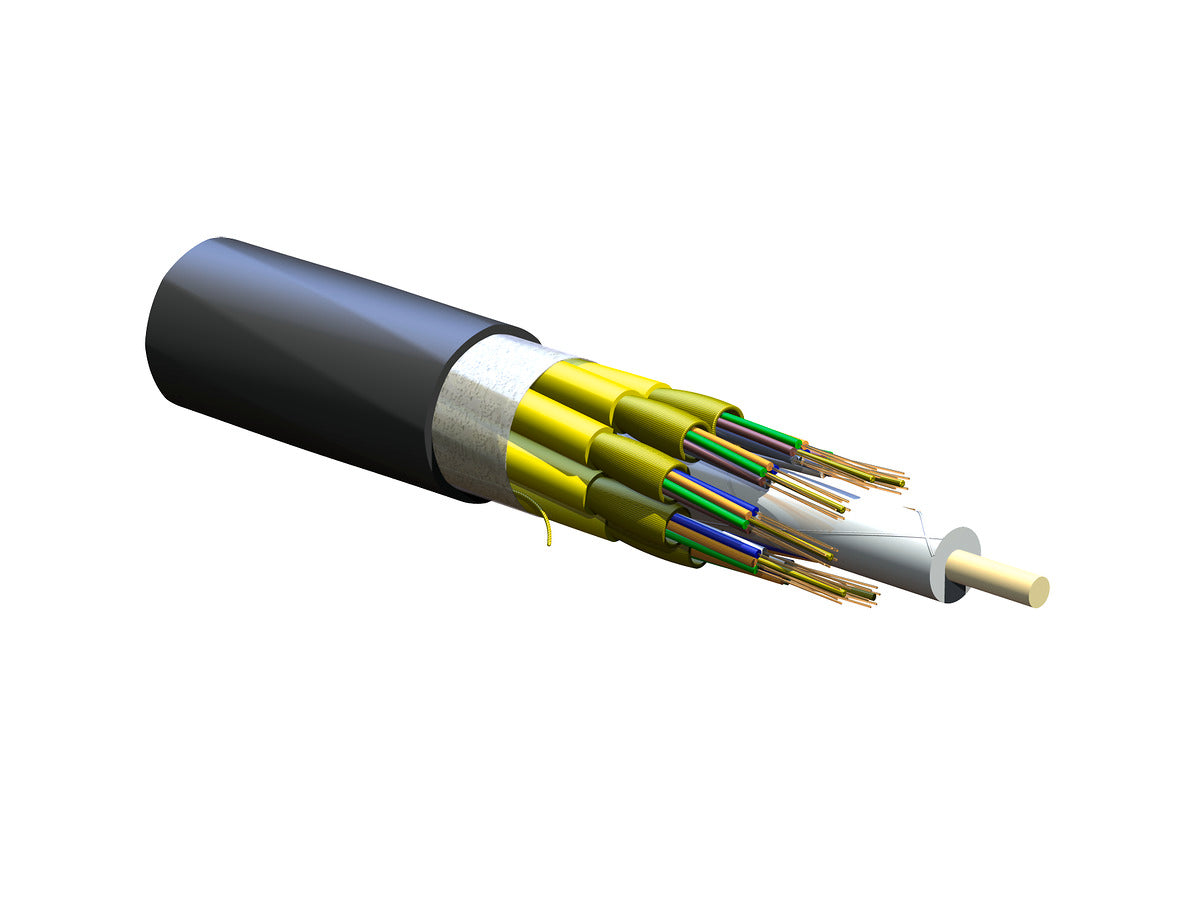

Corning 048E8P-61131-29 | FREEDM One Unitized, Tight-Buffered Cable, Plenum 48 F, Single-mode (OS2)
Regular price
$10.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 048E8P-61131-29 | FREEDM One Unitized, Tight-Buffered Cable...
Regular price
$10.58
Unit price
Description
Description
Corning 048E8P-61131-29 | FREEDM One Unitized, Tight-Buffered Cable, Plenum 48 F, Single-mode (OS2)
Specifications
Specifications
Corning - 048E8P-61131-29 - Product Categories
- Fiber Optic Cables
- Indoor/Outdoor
- Indoor/Outdoor Plenum Cables
Corning - 048E8P-61131-29 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 048E8P-61131-29 |
| Item Description | FREEDM One Unitized, Tight-Buffered Cable, Plenum 48 F, Single-mode (OS2) |
| General Specifications | - |
| Product Number | 048E8P-61131-29 |
| EAN Code | 4056418778839 |
| Environment | Indoor/Outdoor |
| Cable Type | Tight-Buffered |
| Product Type | Distribution |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Plenum (OFNP) |
| Application | Direct Buried, Duct, Vertical Riser, General Purpose Horizontal |
| Fiber Count | 48 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP, FT-6 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0°C to 60°C (32°F to 140°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

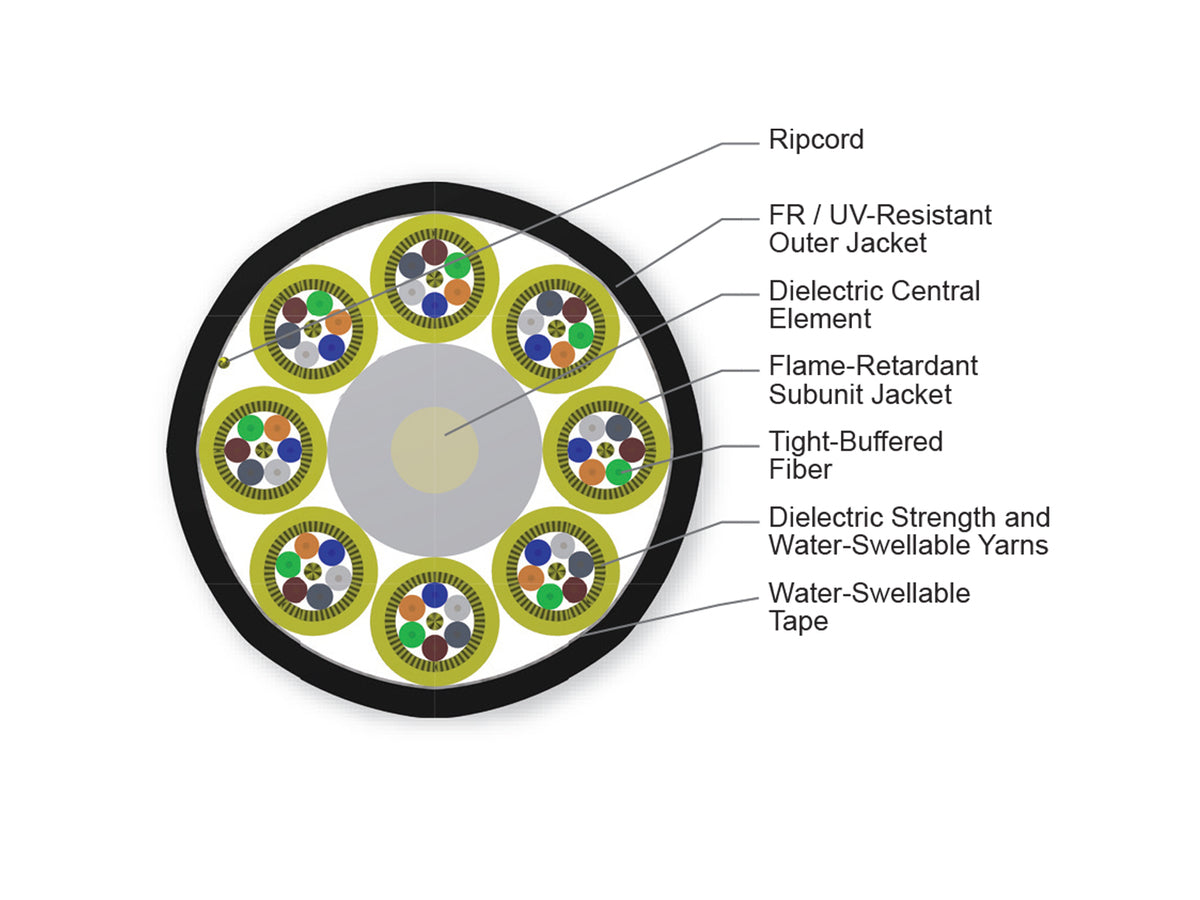

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 48 |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Fibers per Subunit | 6 |
| Number of Active Tubes | 8 |
| Subunit Color | Yellow |
| Subunit Diameter | 4.4mm (0.17in) |
| Tape | Water-swellable |
| Tight Buffer Color | Blue, Orange, Green, Brown, Slate, White |
| Flame Rating | Plenum (OFNP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 800N (179.85lbf) |
| Max. Tensile Strength, Short-Term | 2670N (600.24lbf) |
| Min. Bend Radius Installation | 294mm (11.57in) |
| Min. Bend Radius Operation | 196mm (7.72in) |
| Nominal Outer Diameter | 19.6mm (0.77in) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | SMF-28e+ fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 31 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.4 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Dimensions | - |
| Cable Weight | 361.07kg/km (242.63lb/1000 ft) |
