Brand: Corning
|
SKU:
372-COROS2-LTDSG-48

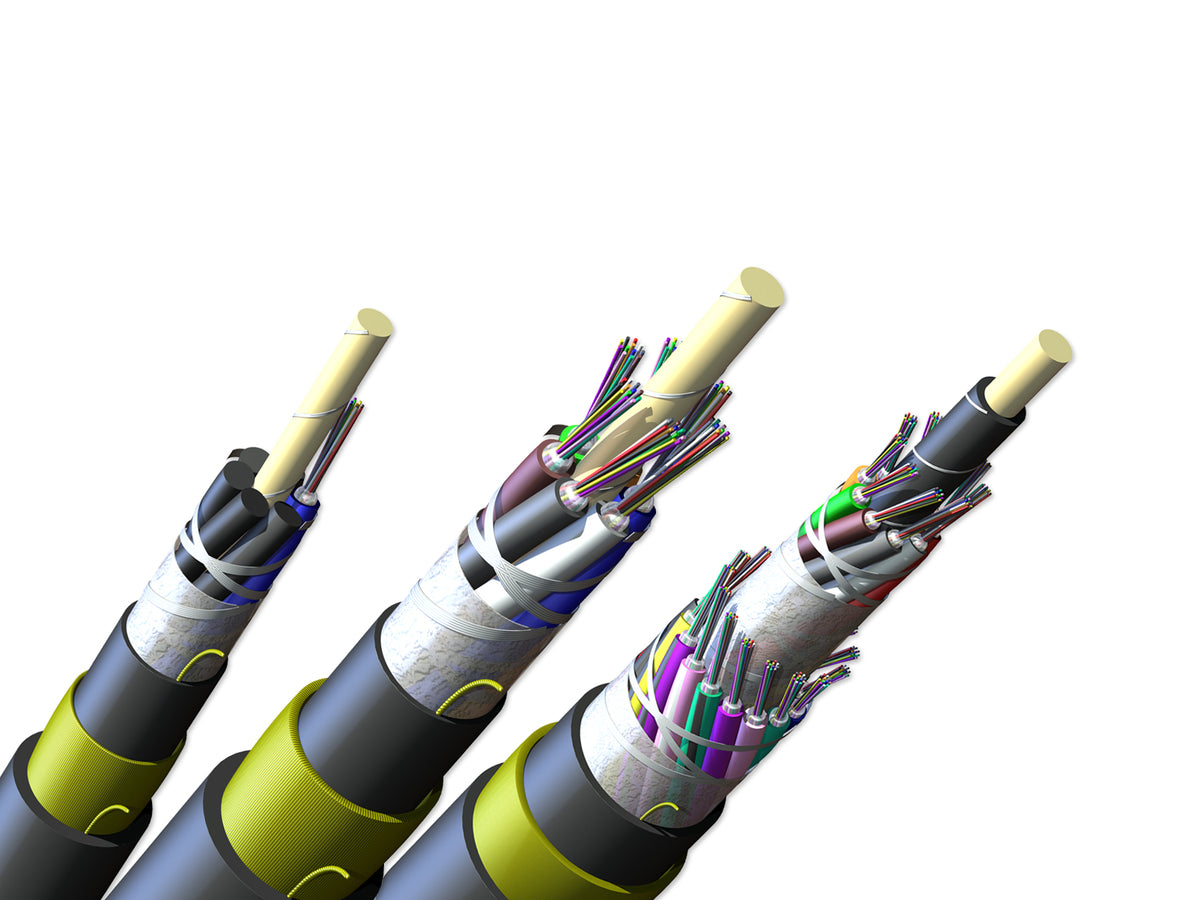

Corning 048EAE-T3201A20 | Solo ADSS Loose Tube, Gel-Filled, Dual-Jacket Cable 48 F, Single-mode (OS2)
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 048EAE-T3201A20 | Solo ADSS Loose Tube, Gel-Filled, Dual-Ja...
Regular price
$3.00
Unit price
Brand: Corning
|
SKU:
372-COROS2-LTDSG-48
Regular price
$3.00
Unit price
Shipping calculated at checkout.
Description
Description
Corning 048EAE-T3201A20 | Solo ADSS Loose Tube, Gel-Filled, Dual-Jacket Cable 48 F, Single-mode (OS2)
Corning - 048EAE-T3201A20 - Features
- Stable performance and compatibility with all common fiber types
- Easy, one-step installation
- Suitable for installations up to 25 kV electric field potential
- Provides efficient and craft-friendly cable preparation
Specifications
Specifications
Corning - 048EAE-T3201A20 - Specifications
| Product Number | 048EAE-T3201A20 |
|---|---|
| Cable Type | Loose Tube |
| Environment | Outdoor |
| Product Type | Self-Supporting, ADSS |
| Fiber Category | Single-mode (OS2) |
| Cable geometry | Other |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor self-supporting aerial |
| Design and Test Criteria | ANSI/ICEA S-87-640 |
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 75 °C (-40 °F to 167 °F ) |
| Central Element | Dielectric |
| Fiber Count | 48 |
| Number of Ripcords | 3 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Buffer Tube Color | Blue, Orange, Green, Brown |
| Buffer Tube Diameter | 2.85 mm |
| Inner Jacket Material | Polyethylene (PE) |
| Number of Active Tubes | 4 |
| Number of Tube Positions | 4 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Nominal Outer Diameter | 13.5 mm |
| Nominal Outer Diameter | 13.5 mm |
| Span Code | 2 |
| Min. Bend Diameter Installation | 406 mm |
| Min. Bend Diameter Operation | 270 mm |
| Cable Weight | 138 kg/km |
