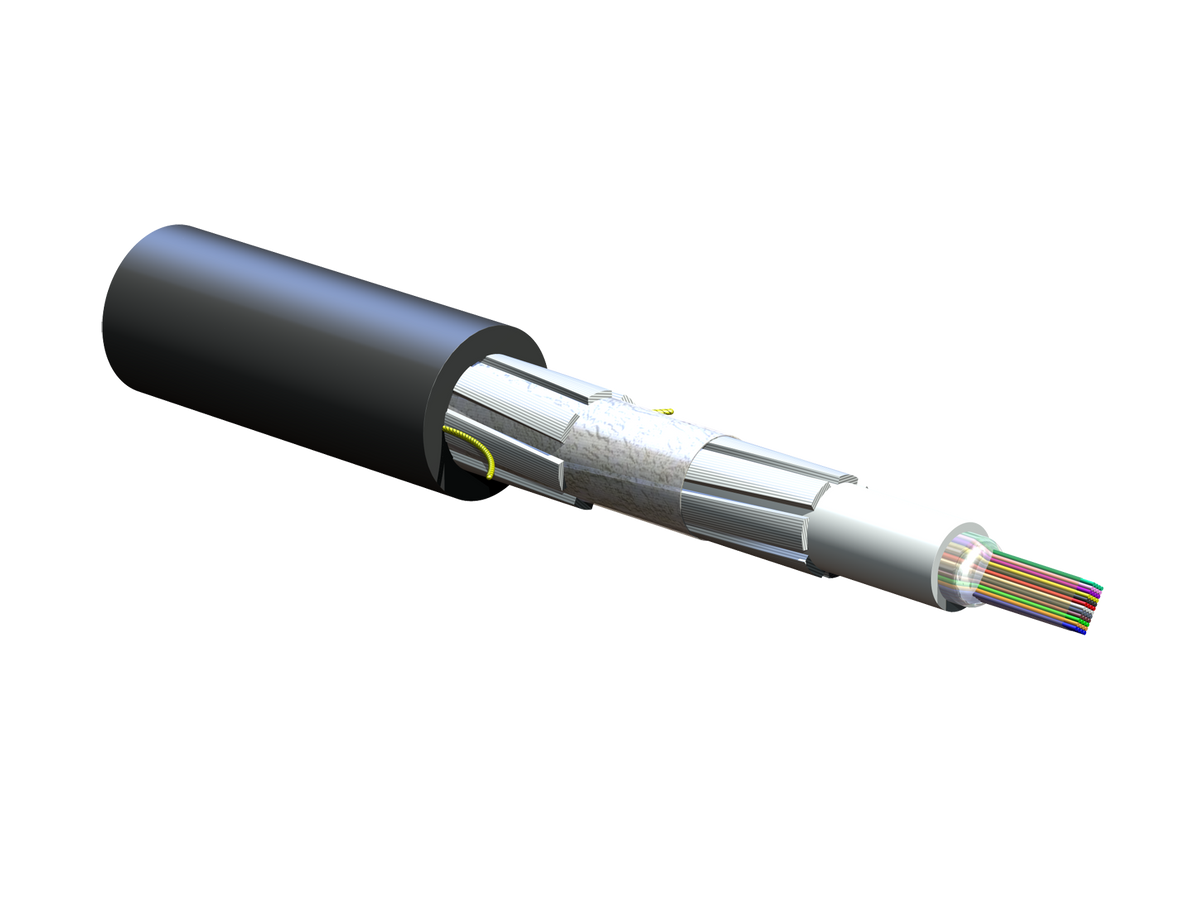

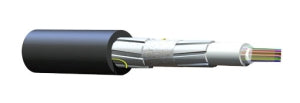

Corning 048ECF-14101-20 | FREEDM Ribbon, Gel-Filled Cable, Riser
Regular price
$7.74
Unit price
Brand: Corning
|
SKU:
370-537-SMODERIB-48
Regular price
$7.74
Unit price
Description
Description
Corning 048ECF-14101-20 | FREEDM Ribbon, Gel-Filled Cable, Riser 48 F, Single-mode (OS2)
Corning - 048ECF-14101-20 - Features
- Precise fiber and ribbon geometries
- Excellent mass splicing yields
- Waterblocked cable
- Enables use of cables for outdoor applications
- 12-fiber ribbons with ribbon IDs
- Easy identification
- UV-resistant, flame-retardant jacket
- Rugged, durable and easy to strip
- Available in preconnectorized assemblies
- Easy field installation and reduced labor costs
- Common installations
- Outdoor aerial and duct
Specifications
Specifications
Corning - 048ECF-14101-20 - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Fiber Optic Cable
- Fiber Optic Indoor | Outdoor Cable
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 048ECF-14101-20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 048ECF-14101-20 |
| EAN Code | 4056418190556 |
| Environment | Indoor/Outdoor |
| Cable Type | Ribbon |
| Product Type | Dielectric |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Riser (OFNR) |
| Application | Direct Buried, Vertical Riser, Duct, General Purpose Horizontal, Aerial |
| Fiber Count | 48 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, CSA FT-4 |
| Design and Test Criteria | ANSI/ICEA S-104-696 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to -10 °C (14 °F to 14 °F ) |
| Temperature Range, Operation | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

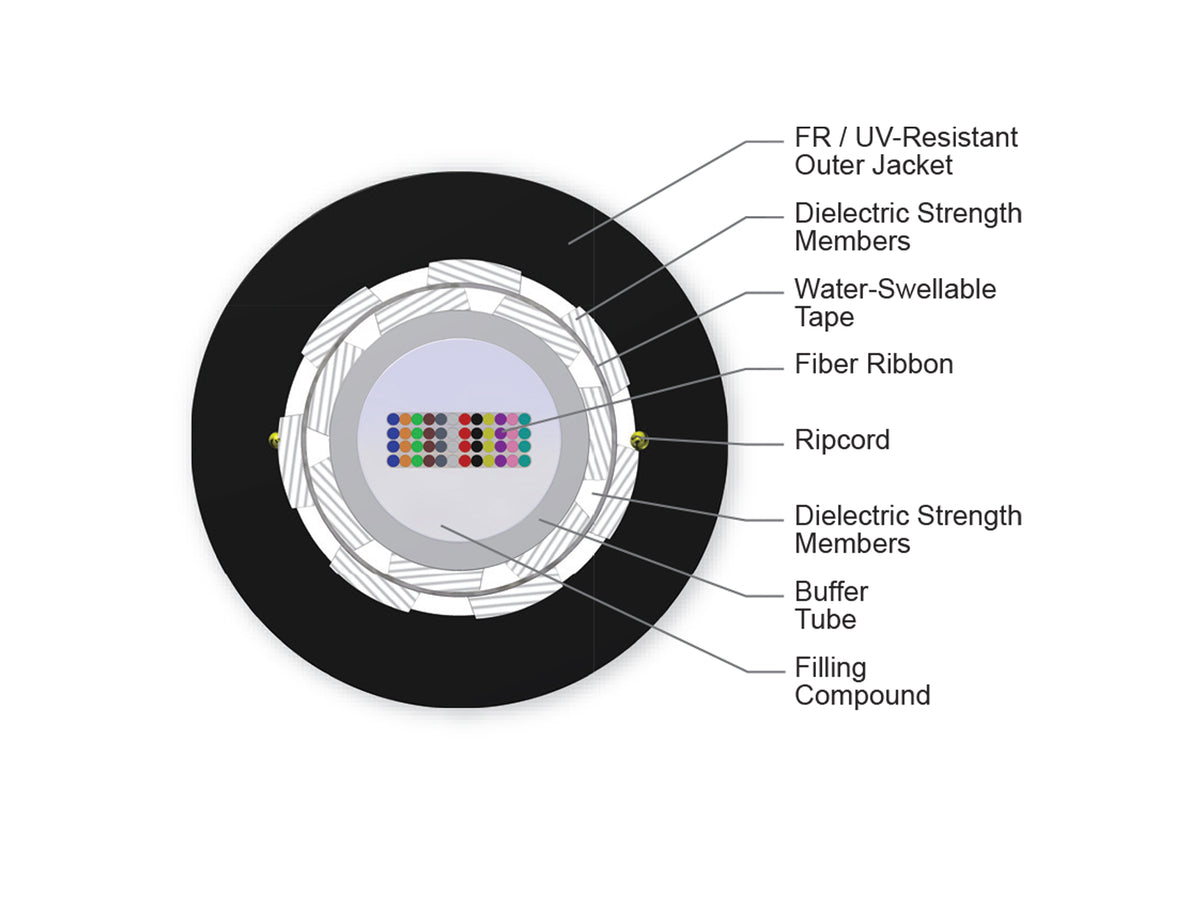

| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 48 |
| Buffer Tube Diameter | 56 mm (2.2 in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Dielectric strength members |
| Tape | Water-swellable |
| Ribbons per Tube | 4 |
| Fibers per Ribbon | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 600 N (134.89 lbf) |
| Max. Tensile Strength, Short-Term | 600 N (134.89 lbf) |
| Min. Bend Radius Installation | 180 mm (7.09 in) |
| Min. Bend Radius Operation | 120 mm (4.72 in) |
| Nominal Outer Diameter | 12 mm (0.47 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 141 kg/km (94.75 lb/1000 ft) |
| Type | Indoor Outdoor Cable |
| Application | Indoor/Outdoor |
| Transmission Mode | Singlemode |
| Fiber Type | OS2 |
| Jacket Flame Rating | OFNR FT4 |
| Jacket Material | Flame Retardant, UV-Resistant |
| Jacket Color | Black |
| Fiber Count | 48 |
| Outside Diameter | 0.47 in. (12mm) |
| Water Blocking | Gel-filled |
| Construction | Ribbon, Gel Filled |
