Brand: Corning
|
SKU:
10159228

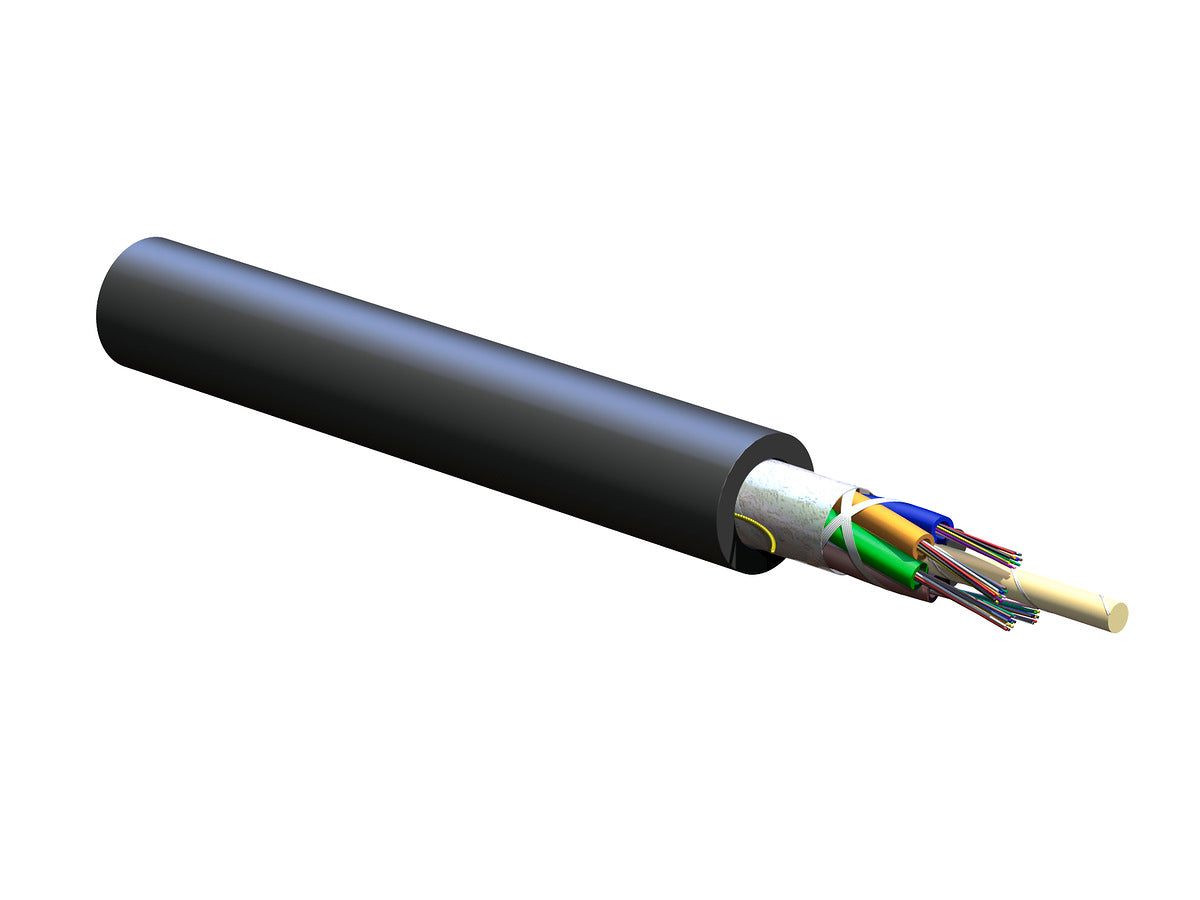

Corning 048EUF-T4101D20 | FREEDM Loose Tube, Gel-Free Cable, Riser 48 F, Single-mode (OS2)
Regular price
$3.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 048EUF-T4101D20 | FREEDM Loose Tube, Gel-Free Cable, Riser ...
Regular price
$3.03
Unit price
Description
Description
Corning 048EUF-T4101D20 | FREEDM Loose Tube, Gel-Free Cable, Riser 48 F, Single-mode (OS2)
Specifications
Specifications
Corning - 048EUF-T4101D20 - Product Categories
- Fiber Optic Cables
- Indoor/Outdoor
- Indoor/Outdoor Riser Cables
Corning - 048EUF-T4101D20 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 048EUF-T4101D20 |
| Item Description | FREEDM Loose Tube, Gel-Free Cable, Riser 48 F, Single-mode (OS2) |
| General Specifications | - |
| Product Number | 048EUF-T4101D20 |
| EAN Code | 4056418174624 |
| Environment | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Product Type | Dielectric |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Riser (OFNR) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal |
| Fiber Count | 48 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, CSA OFN FT-4 |
| Common Installations | Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-104-696 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10°C to 60°C (14°F to 140°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

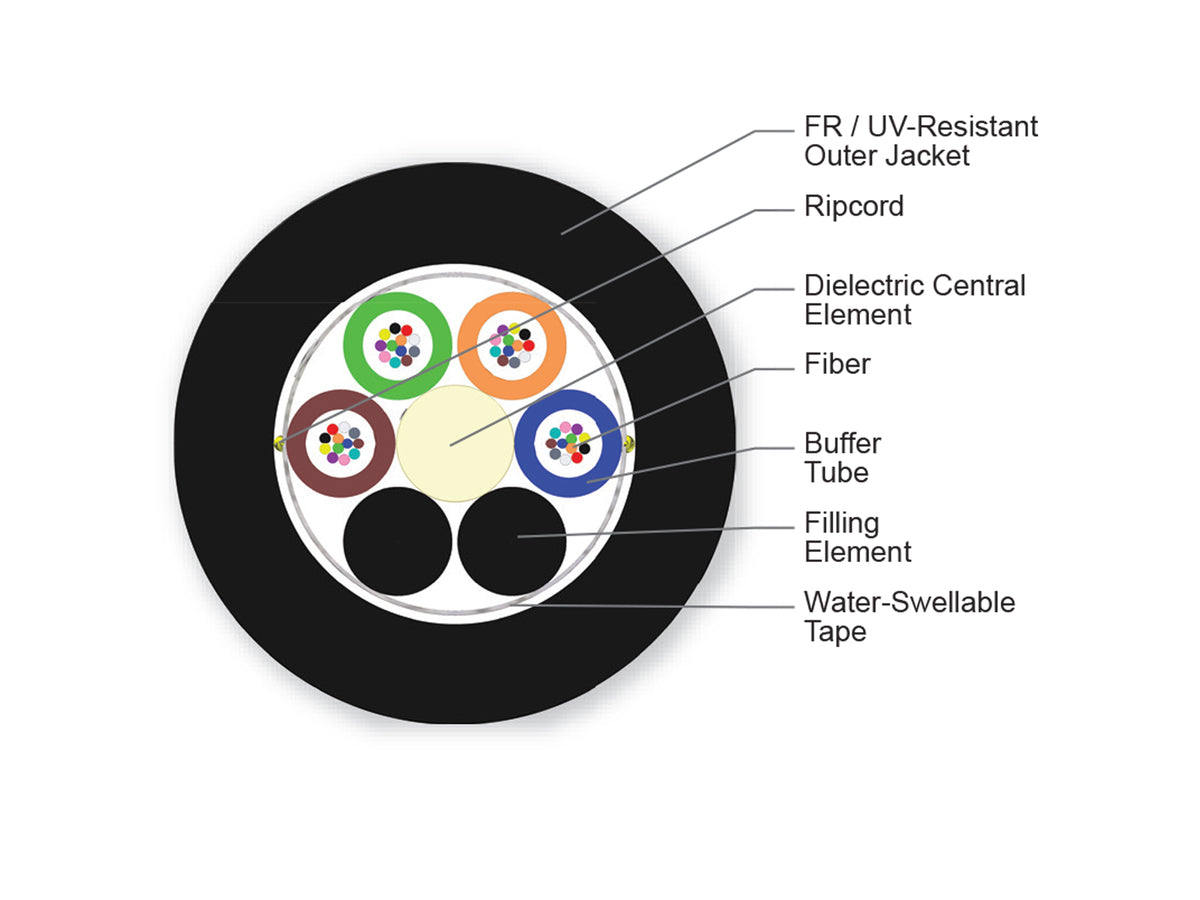

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 48 |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Buffer Tube Color | Blue, Orange, Green, Brown |
| Buffer Tube Diameter | 2.5mm (0.1in) |
| Number of Active Tubes | 4 |
| Number of Filling Elements | 2 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Color Code Standards | Telcordia |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 810N (182.1lbf) |
| Max. Tensile Strength, Short-Term | 2700N (606.98lbf) |
| Min. Bend Radius Installation | 195mm (7.68in) |
| Min. Bend Radius Operation | 130mm (5.12in) |
| Nominal Outer Diameter | 13mm (0.51in) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 01 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Dimensions | - |
| Cable Weight | 146kg/km (98.11lb/1000 ft) |
