Brand: Corning
|
SKU:
371-COROM10RIBD-48

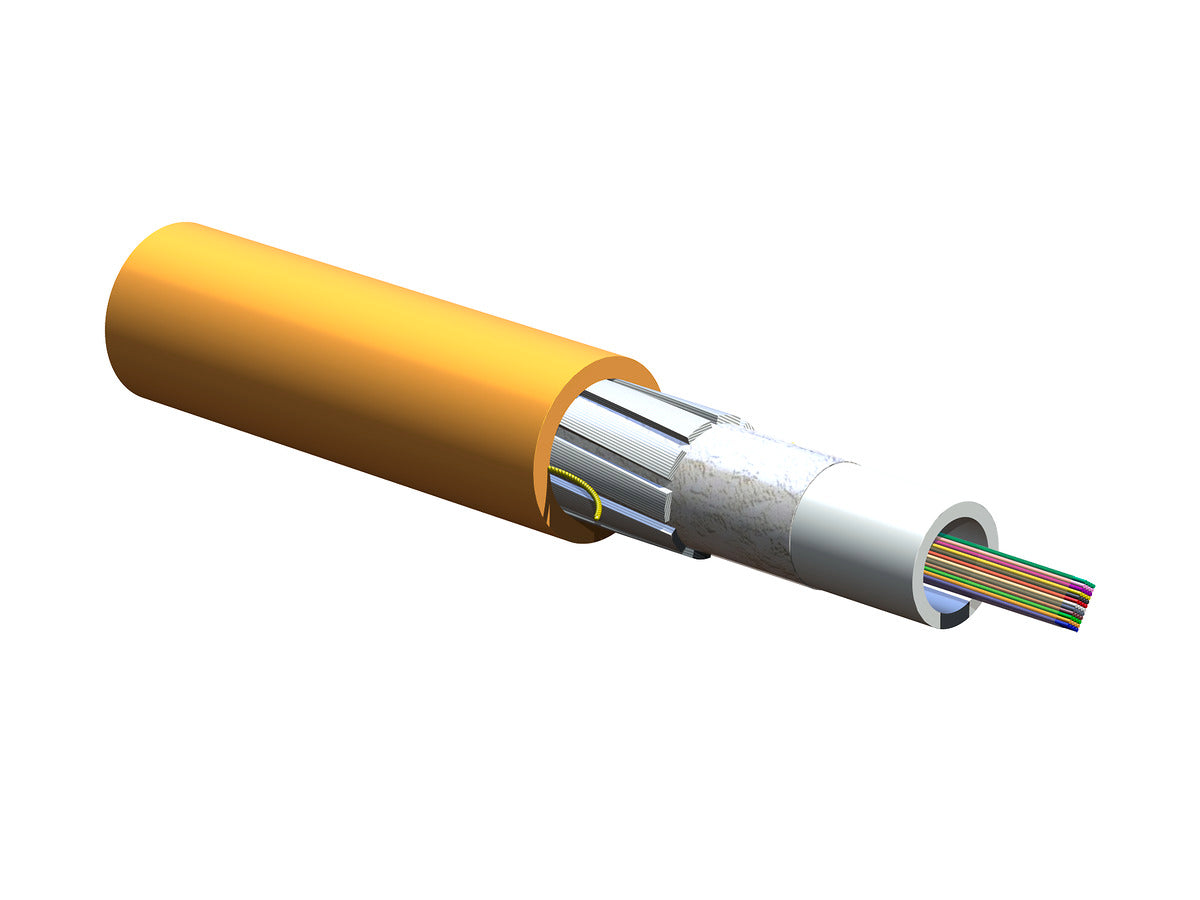

Corning 048KC7-14130-20 | Ribbon Cable, Riser 48 F, 62.5 µm multimode (OM1)
Regular price
$12.28
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 048KC7-14130-20 | Ribbon Cable, Riser 48 F, 62.5 µm multim...
Regular price
$12.28
Unit price
Brand: Corning
|
SKU:
371-COROM10RIBD-48
Regular price
$12.28
Unit price
Shipping calculated at checkout.
Description
Description
Corning 048KC7-14130-20 | Ribbon Cable, Riser 48 F, 62.5 µm multimode (OM1)
Specifications
Specifications
Corning - 048KC7-14130-20 - Product Categories
- Fiber Optic Cables
- Indoor
- Indoor Riser Cables
Corning - 048KC7-14130-20 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 048KC7-14130-20 |
| Item Description | Ribbon Cable, Riser 48 F, 62.5 µm multimode (OM1) |
| General Specifications | - |
| Product Number | 048KC7-14130-20 |
| EAN Code | 4056418190532 |
| Environment | Indoor |
| Cable Type | Ribbon |
| Product Type | Distribution |
| Fiber Category | 62.5 µm MM (OM1) |
| Flame Rating | Riser (OFNR) |
| Application | General Purpose Horizontal, Vertical Riser |
| Fiber Count | 48 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP |
| Design and Test Criteria | ANSI/ICEA S-83-596, CSA FT-4 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10°C to 60°C (14°F to 140°F ) |
| Temperature Range, Operation | -20°C to 70°C (-4°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

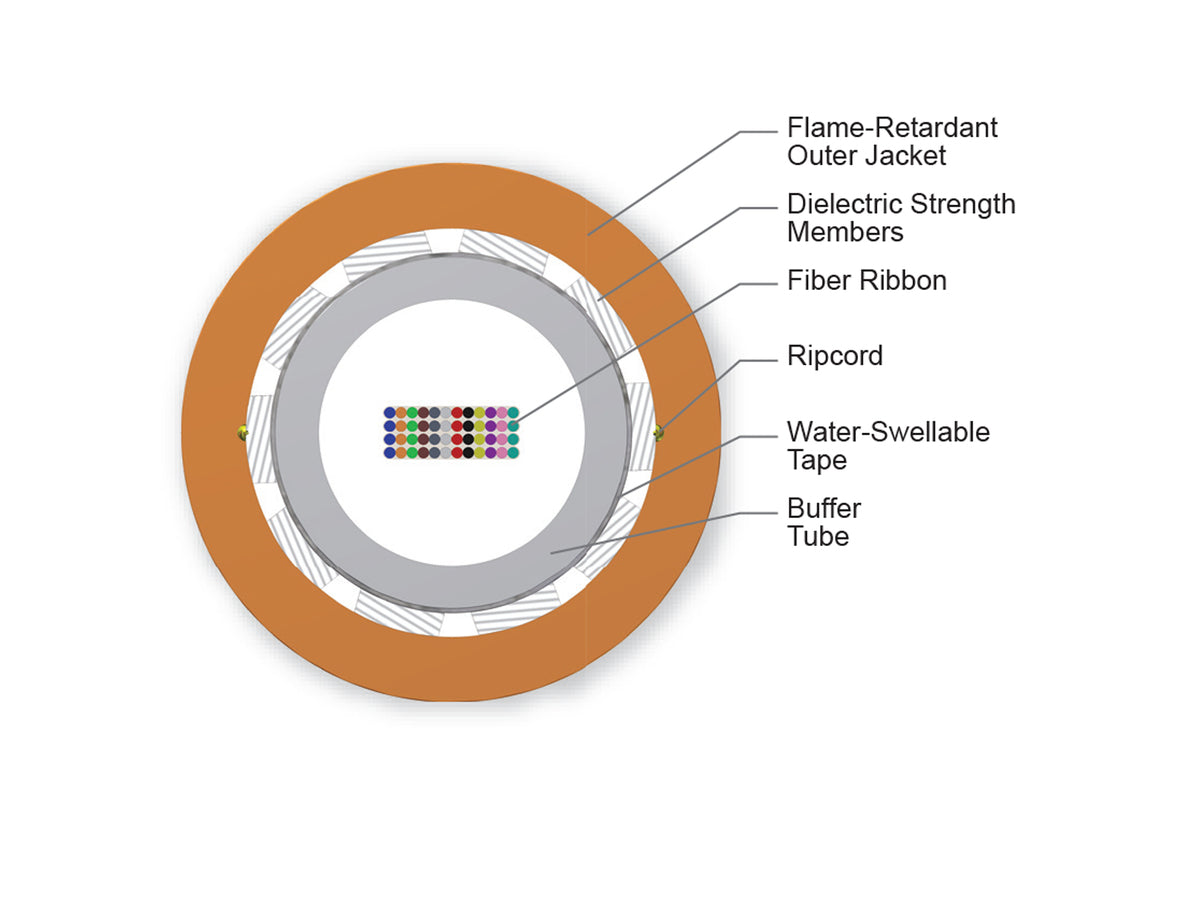

| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 48 |
| Buffer Tube Diameter | 81mm (3.19in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Orange |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape | Water-swellable |
| Ribbons per Tube | 4 |
| Fibers per Ribbon | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400N (89.92lbf) |
| Max. Tensile Strength, Short-Term | 400N (89.92lbf) |
| Min. Bend Radius Installation | 146mm (5.75in) |
| Min. Bend Radius Operation | 97mm (3.82in) |
| Nominal Outer Diameter | 9.7mm (0.38in) |
| Optical Characteristics | - |
| Fiber Code | K |
| Fiber Type | Multimode |
| Performance Option Code | 30 |
| Fiber Core Diameter | 62.5µm |
| Minimum Effective Modal Bandwidth (EMB) | 220 MHz*km / - |
| Maximum Attenuation | 3.4 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 300 MHz*km / 550 MHz*km |
| Serial 10 Gigabit Ethernet | 33 MHz*km/ - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM1 |
| Dimensions | - |
| Cable Weight | 98kg/km (65.85lb/1000 ft) |
