Brand: Corning
|
SKU:
372-COROM1-LTD-48

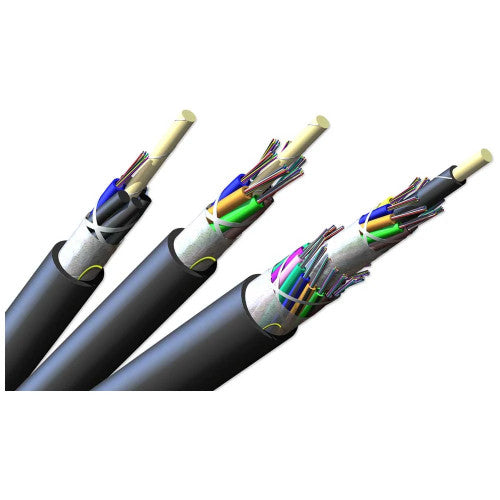

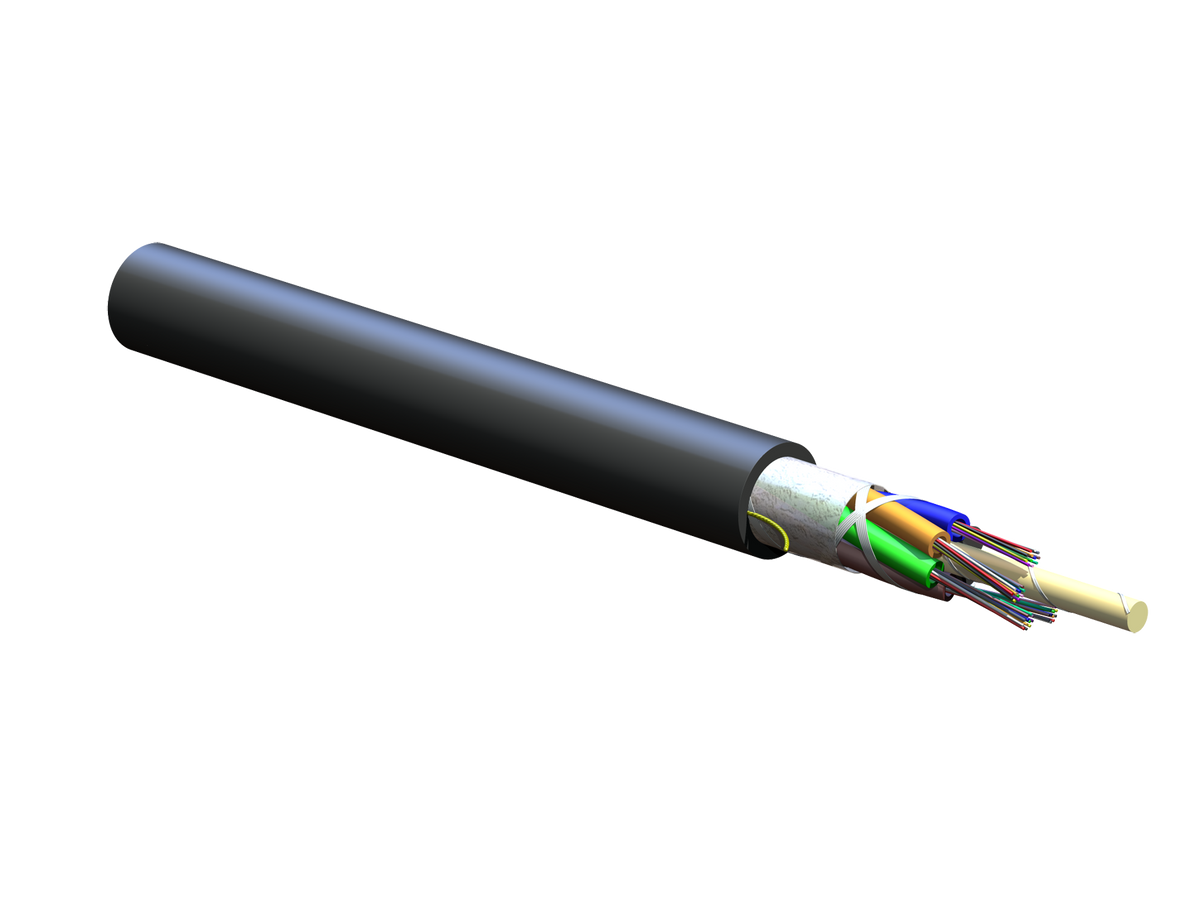

Corning 048KU4-T4130D20 | ALTOS Loose Tube, Gel-Free Cable
Regular price
$8.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 048KU4-T4130D20 | ALTOS Loose Tube, Gel-Free Cable
Regular price
$8.82
Unit price
Brand: Corning
|
SKU:
372-COROM1-LTD-48
Regular price
$8.82
Unit price
Shipping calculated at checkout.
Description
Description
Corning 048KU4-T4130D20 | ALTOS Loose Tube, Gel-Free Cable 48 F, 62.5 µm multimode (OM1)
Corning - 048KU4-T4130D20 - Features
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Polyethylene jacket
- Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)
- All-dielectric construction
- Requires no grounding or bonding
Specifications
Specifications
Corning - 048KU4-T4130D20 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Outdoor
- Outdoor Duct Cables
Corning - 048KU4-T4130D20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 048KU4-T4130D20 |
| EAN Code | 4056418184647 |
| Environment | Outdoor |
| Cable Type | Loose Tube |
| Product Type | Dielectric |
| Fiber Category | 62.5 µm MM (OM1) |
| Application | Aerial, Duct |
| Fiber Count | 48 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor lashed aerial and duct, indoor when installed according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-87-640 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to -30 °C (-22 °F to -22 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Notes | Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results. |

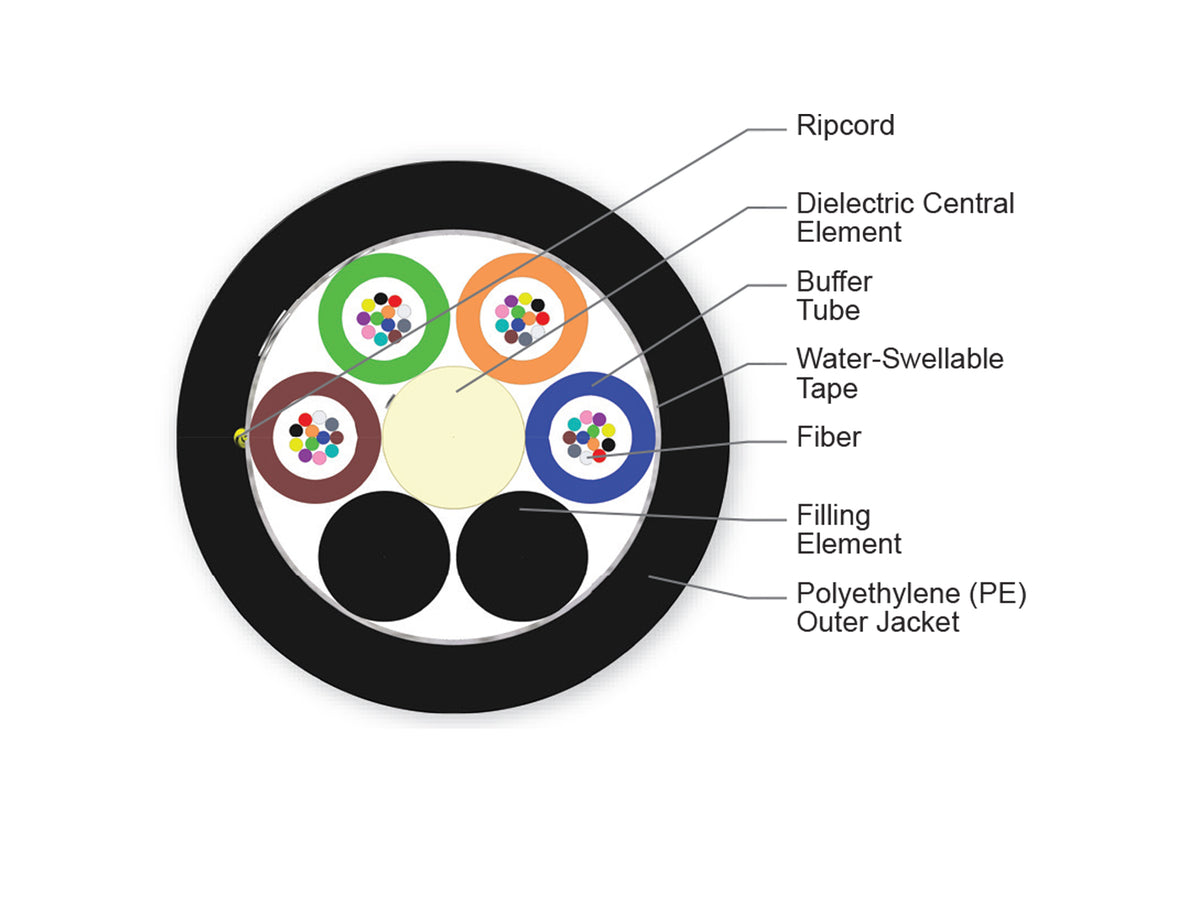

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 48 |
| Buffer Tube Color Coding | Blue, Orange, Green, Brown |
| Number of Ripcords | 1 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Buffer Tube Color | Blue, Orange, Green, Brown |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Number of Active Tubes | 4 |
| Number of Filling Elements | 2 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Min. Bend Radius Installation | 158 mm (6.22 in) |
| Min. Bend Radius Operation | 105 mm (4.13 in) |
| Nominal Outer Diameter | 10.5 mm (0.41 in ) |
| Optical Characteristics | - |
| Fiber Code | K |
| Fiber Type | Multimode |
| Performance Option Code | 30 |
| Fiber Core Diameter | 62.5 µm |
| Minimum Effective Modal Bandwidth (EMB) | 220 MHz*km / - |
| Maximum Attenuation | 3.4 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 300 MHz*km / 550 MHz*km |
| Serial 10 Gigabit Ethernet | 33 MHz*km/ - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM1 |
| Ordering Information | - |
| Weight | 73 kg/km (49.05 lb/1000 ft) |
