Brand: Corning
|
SKU:
373-COROM1-TBP-48

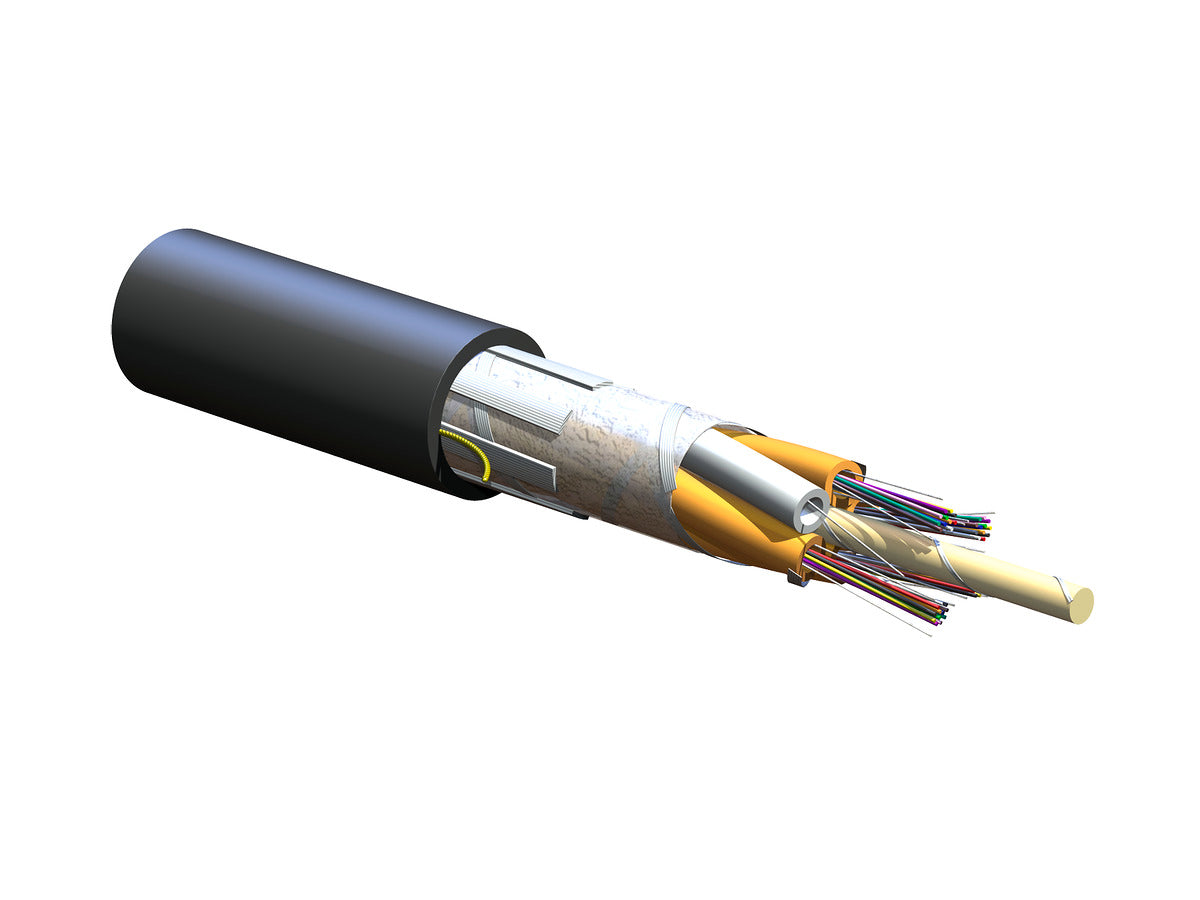

Corning 048KWP-T4130D20 | FREEDM Loose Tube, Gel-Free Cable, Plenum 48 F, 62.5 µm multimode (OM1)
Regular price
$19.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 048KWP-T4130D20 | FREEDM Loose Tube, Gel-Free Cable, Plenum...
Regular price
$19.78
Unit price
Brand: Corning
|
SKU:
373-COROM1-TBP-48
Regular price
$19.78
Unit price
Shipping calculated at checkout.
Description
Description
Corning 048KWP-T4130D20 | FREEDM Loose Tube, Gel-Free Cable, Plenum 48 F, 62.5 µm multimode (OM1)
Specifications
Specifications
Corning - 048KWP-T4130D20 - Product Categories
- Fiber Optic Cables
- Indoor/Outdoor
- Indoor/Outdoor Plenum Cables
Corning - 048KWP-T4130D20 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 048KWP-T4130D20 |
| Item Description | FREEDM Loose Tube, Gel-Free Cable, Plenum 48 F, 62.5 µm multimode (OM1) |
| General Specifications | - |
| Product Number | 048KWP-T4130D20 |
| EAN Code | 4056418197968 |
| Environment | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Product Type | Dielectric |
| Fiber Category | 62.5 µm MM (OM1) |
| Flame Rating | Plenum (OFCP) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal |
| Fiber Count | 48 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP |
| Common Installations | Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-104-696, NFPA 262 (for plenum, riser and general building applications) |
| Environmental Conditions | - |
| Temperature Range, Installation | 0°C to 60°C (32°F to 140°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

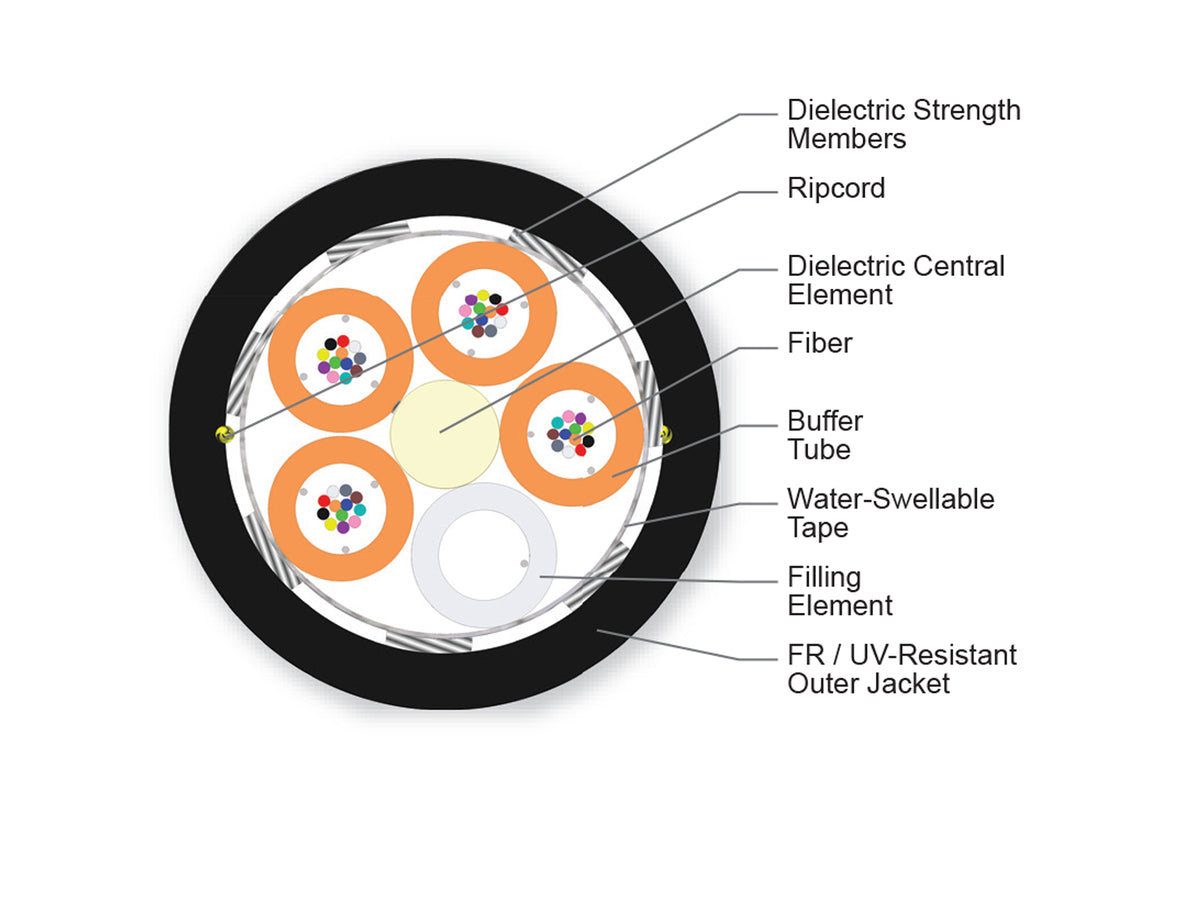

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 48 |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Buffer Tube Color | Orange |
| Buffer Tube Diameter | 3mm (0.12in) |
| Number of Active Tubes | 4 |
| Number of Filling Elements | 2 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Color Code Standards | Telcordia |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 810N (182.1lbf) |
| Max. Tensile Strength, Short-Term | 2700N (606.98lbf) |
| Min. Bend Radius Installation | 171mm (6.73in) |
| Min. Bend Radius Operation | 114mm (4.49in) |
| Nominal Outer Diameter | 11.4mm (0.45in) |
| Optical Characteristics | - |
| Fiber Code | K |
| Fiber Type | Multimode |
| Performance Option Code | 30 |
| Fiber Core Diameter | 62.5µm |
| Minimum Effective Modal Bandwidth (EMB) | 220 MHz*km / - |
| Maximum Attenuation | 3.4 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 300 MHz*km / 550 MHz*km |
| Serial 10 Gigabit Ethernet | 33 MHz*km/ - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM1 |
| Dimensions | - |
| Cable Weight | 127kg/km (85.34lb/1000 ft) |
