Brand: Corning
|
SKU:
372-COROS2-LTDMG-48

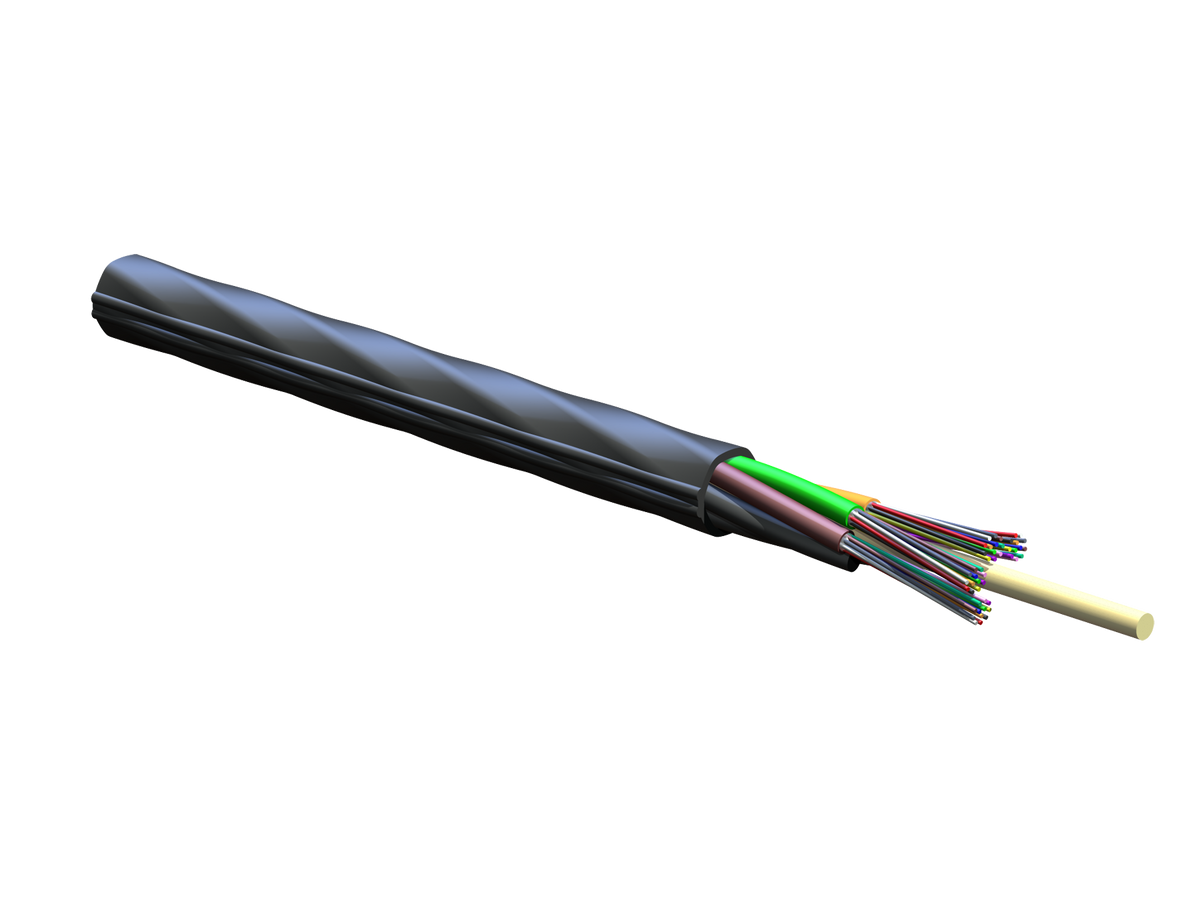

Corning 048ZM4-T3F22A20 | MiniXtend Cable with Binderless FastAccess Technology
Regular price
$1.46
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 048ZM4-T3F22A20 | MiniXtend Cable with Binderless FastAcces...
Regular price
$1.46
Unit price
Brand: Corning
|
SKU:
372-COROS2-LTDMG-48
Regular price
$1.46
Unit price
Description
Description
Corning 048ZM4-T3F22A20 | MiniXtend Cable with Binderless FastAccess Technology 48 F, SMF-28 Ultra fiber, Single-mode (G.652.D/G.657.A1)
Corning - 048ZM4-T3F22A20 - Features
- Binderless* FastAccess Technology
- Innovative cable design that reduces cable access time up to 70 percent and lowers the risk of inadvertent fiber damage
- Improved cable and fiber density
- Small cable OD enables higher density and lower deployment cost; up to 96 fibers in 8 mm ID duct and up to 144 fibers in 10 mm ID duct
- Optimized for air-assisted install in microducts
- Capable of installation distances greater than 2000 m (6560 ft) at speeds up to 150 m/min (490 ft/min)
- Mid-span express buffer tube performance
- Meets the Telcordia GR-20 and RDUP/RUS PE-90 requirements for mid-span express buffer tube storage
- SMF-28 Ultra fiber
- Ultra fibre
- Fully waterblocked loose tube, gel-filled design
- Meets industry standard waterblocking requirements for outdoor cable
Specifications
Specifications
Corning - 048ZM4-T3F22A20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Outdoor Fiber Optic Cable
- Fiber Optic Cables
- Outdoor
- Outdoor Duct Cables
Corning - 048ZM4-T3F22A20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 048ZM4-T3F22A20 |
| EAN Code | 4056418140230 |
| Environment | Outdoor |
| Cable Type | Stranded Loose Tube Micro Cable |
| Product Type | Dielectric |
| Fiber Category | SMF-28 Ultra fiber |
| Application | Microduct |
| Fiber Count | 48 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor microduct, indoor when installed according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | IEC 60794-5-10 |
| Corning Recommendations | This cable should be placed in microduct for all applications, including aerial. |
| Environmental Conditions | - |
| Temperature Range, Installation | -15 °C to 60 °C (5 °F to 140 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 48 |
| Buffer Tube Color Coding | Blue, Orange, Green, Brown |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Buffer Tube Color | Blue, Orange, Green, Brown |
| Buffer Tube Diameter | 1.4 mm (0.06 in) |
| Number of Active Tubes | 4 |
| Number of Filling Elements | 2 |
| Number of Tube Positions | 6 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 890 N (200.08 lbf) |
| Min. Bend Radius Installation | 108 mm (4.25 in) |
| Min. Bend Radius Operation | 82 mm (3.23 in) |
| Nominal Outer Diameter | 5.4 mm (0.21 in ) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 22 |
| Maximum Attenuation | 0.34 dB/km / 0.34 dB/km / 0.22 dB/km |
| Typical Attenuation | 0.32 / 0.32 / 0.18 |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D/G.657.A1 |
| Ordering Information | - |
| Weight | 23 kg/km (15.46 lb/1000 ft) |
| All-Dielectric | YES |
| Armored | NO |
| Cable Type | LOOSE TUBE |
| Fiber Count | 48 |
| Fiber Type | OS2 SINGLE-MODE |
| Rodent Protected | NO |
| Self-Support | NO |
| UNSPSC Code | 26121637 |
