Brand: Corning
|
SKU:
372-COROS-DTALSZH-48

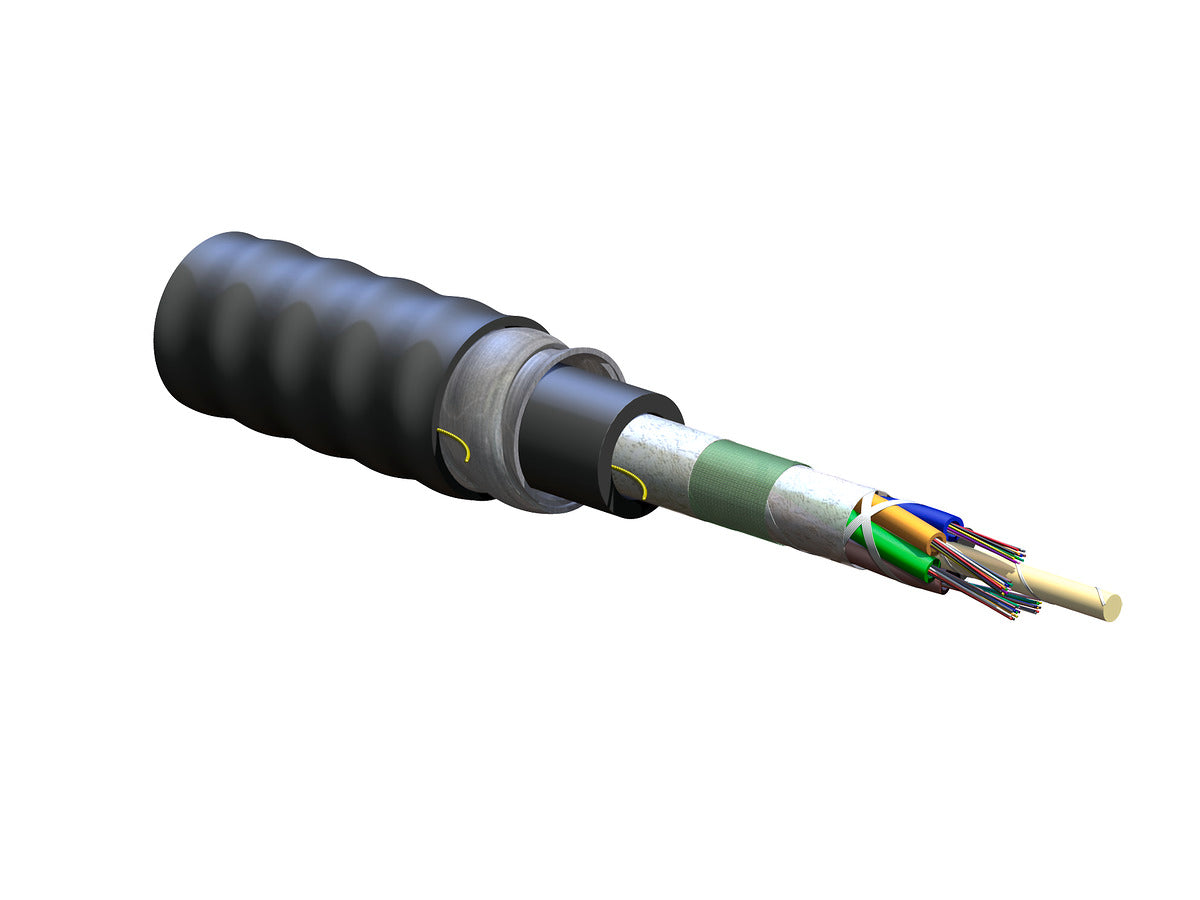

Corning 048ZUZ-T4101DAZ | LSZH Loose Tube, Gel-Free, Interlocking Armored Cable 48 F, SMF-28 Ultra fiber, Single-mode (OS2)
Regular price
$8.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 048ZUZ-T4101DAZ | LSZH Loose Tube, Gel-Free, Interlocking A...
Regular price
$8.98
Unit price
Brand: Corning
|
SKU:
372-COROS-DTALSZH-48
Regular price
$8.98
Unit price
Shipping calculated at checkout.
Description
Description
Corning 048ZUZ-T4101DAZ | LSZH Loose Tube, Gel-Free, Interlocking Armored Cable 48 F, SMF-28 Ultra fiber, Single-mode (OS2)
Specifications
Specifications
Corning - 048ZUZ-T4101DAZ - Product Categories
- Fiber Optic Cables
- Indoor/Outdoor
- Indoor/Outdoor LSZH Cables
Corning - 048ZUZ-T4101DAZ - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 048ZUZ-T4101DAZ |
| Item Description | LSZH Loose Tube, Gel-Free, Interlocking Armored Cable 48 F, SMF-28 Ultra fiber, Single-mode (OS2) |
| General Specifications | - |
| Product Number | 048ZUZ-T4101DAZ |
| Environment | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Product Type | Interlocking Armor |
| Fiber Category | SMF-28 Ultra fiber |
| Flame Rating | LSZH (OFC-LS) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal |
| Fiber Count | 48 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCR-LS/Riser, Sunlight Resistant (SUN RES), IEEE-1202 flame test, Suitable for Direct Burial (DIR BUR), IEC 60332-3, IEC 60754-2, IEC 61034 |
| Common Installations | Outdoor aerial and duct; indoor general purpose horizontal according to NEC Article 770 |
| Design and Test Criteria | ANSI/ICEA S-104-696, UL 13, UL 444, UL 1277, UL 1685, CSA C22.2, No. 230 and No. 232, CSA OFC (FT-4-S1) |
| Environmental Conditions | - |
| Temperature Range, Installation | -30°C to 60°C (-22°F to 140°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |
| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 48 |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material |
| Tensile Strength Elements and/or Armoring - Layer 1 | Interlocking Armor |
| Buffer Tube Color | Blue, Orange, Green, Brown, Slate, White |
| Buffer Tube Diameter | 2.5mm (0.1in) |
| Inner Jacket Material | Flame-retardant |
| Number of Active Tubes | 4 |
| Number of Filling Elements | 2 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Tape, Layer 1 | Water-swellable |
| Tape, Layer 2 | Flame-retardant tape |
| Tape, Layer 3 | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Color Code Standards | Telcordia |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 810N (182.1lbf) |
| Max. Tensile Strength, Short-Term | 2700N (606.98lbf) |
| Min. Bend Radius Installation | 299mm (11.77in) |
| Min. Bend Radius Operation | 199mm (7.83in) |
| Nominal Outer Diameter | 21.7mm (0.85in) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 01 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | ITU-T G.657.A1 |
| Dimensions | - |
| Cable Weight | 35601kg/km (23922.77lb/1000 ft) |
