Brand: Corning
|
SKU:
10155593

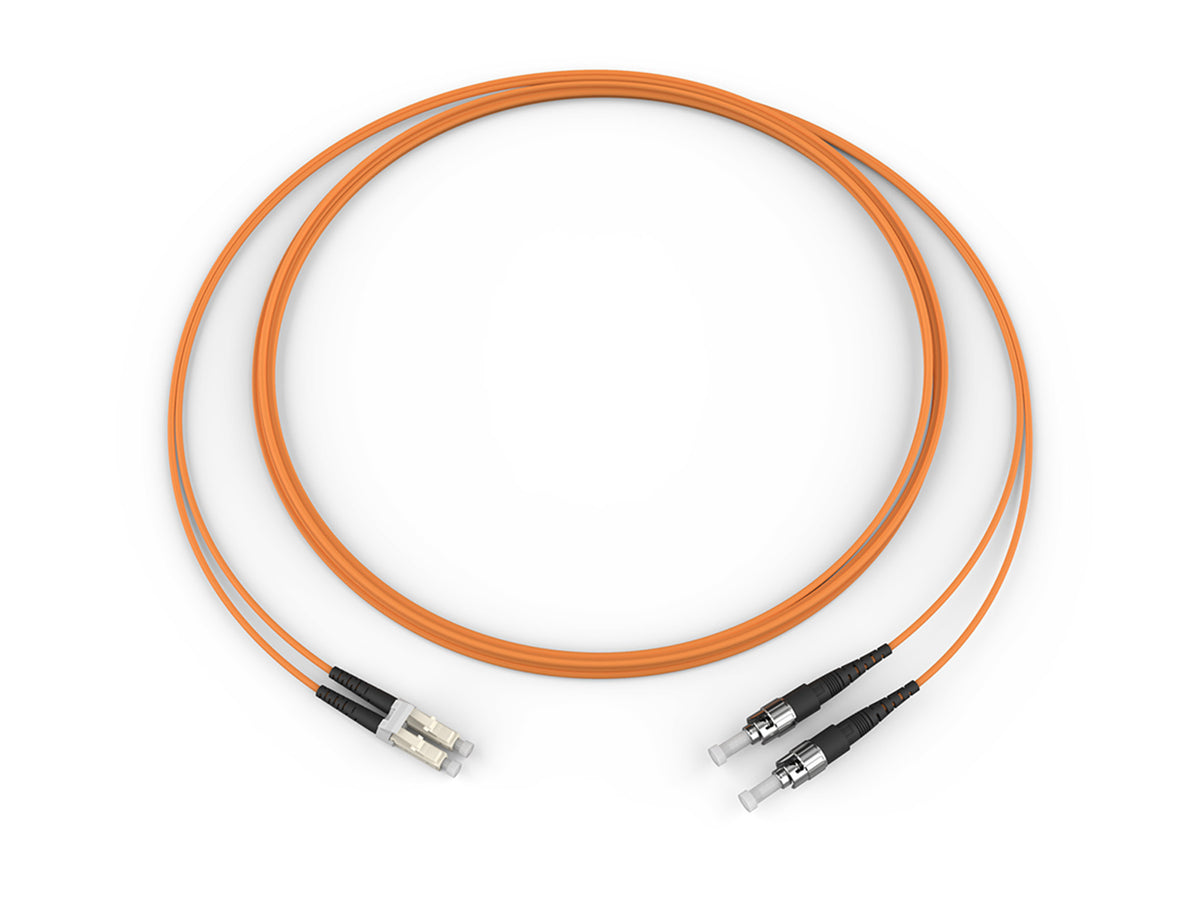

Corning 055002K5820002M | Fiber Optic Jumper, 2 F, LC Duplex to ST compatible, Zipcord Cable, Plenum, 2.0 mm legs
Regular price
$55.90
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 055002K5820002M | Fiber Optic Jumper, 2 F, LC Duplex to ST ...
Regular price
$55.90
Unit price
Description
Description
Corning 055002K5820002M | Fiber Optic Jumper, 2 F, LC Duplex to ST compatible, Zipcord Cable, Plenum, 2.0 mm legs Standard LC Duplex MM / Standard ST MM, OM1 62.5um, 2F, Zipcord Plenum, Standard Orange Jacket 2 Meters
LC to ST, Duplex, Orange, Multimode - OM1, 2 m, 2
Corning - 055002K5820002M - Features
- Flame-retardant jacket
- Rugged and durable
- Superior Performance Testing
- Every termination is tested to ensure the highest in network performance
- State-Of-The-Art Manufacturing Processes
- Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency
- Corning advantage
- Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
Specifications
Specifications
Corning - 055002K5820002M - Product Categories
- Shop by Manufacturer/Corning
- DataComm
- Patch Cables
- Fiber Patch Cables
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
Corning - 055002K5820002M - Specifications
| General Specifications | - |
|---|---|
| Product Number | 055002K5820002M |
| EAN Code | 4056418605500 |
| Flame Rating | Plenum (OFNP) |
| Fiber Category | 62.5 µm MM (OM1) |
| Cable Assembly Type | Two Fiber |
| Application | General Building Applications, Indoor Horizontal, Plenum |
| Cable Type | Tight-Buffered |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 2 |
| Outer Jacket Color | Orange |
| Mechanical Specifications | - |
| Cable Length | 66 ft |
| Specifications - Connector A | - |
| Insertion Loss, Typical | 0.35 dB |
| Boot Color | Black |
| Connector Type | LC Duplex |
| Ferrule Material | Ceramic |
| Housing Color | Beige |
| Housing Material | Composite |
| Specifications - Connector B | - |
| Insertion Loss, Typical | 0.35 dB |
| Boot Color | Black |
| Connector Type | ST compatible |
| Ferrule Material | Ceramic |
| Housing Color | Beige |
| Ordering Information | - |
| Units per Delivery | 1/1" |
| Furcation - Connector A | - |
| Leg Diameter | 2 mm (0.08 in) |
| Plug Type | Heat-shrink sleeve |
| Plug Height | 5.5 mm (0.22 in) |
| Plug Width | 3.5 mm (0.14 in) |
| Plug Depth | 25.4 mm (1 in) |
| Leg Length | 254 mm -0 / +38.1mm (10 in -0 / +1.5in) |
| Furcation - Connector B | - |
| Leg Diameter | 2 mm (0.08 in) |
| Plug Type | Heat-shrink sleeve |
| Plug Height | 5.5 mm (0.22 in) |
| Plug Width | 3.5 mm (0.14 in) |
| Plug Depth | 25.4 mm (1 in) |
| Leg Length | 0 mm +38.1mm (0 in +1.5in) |
