Brand: Corning
|
SKU:
373-COROS2-TBRD-72

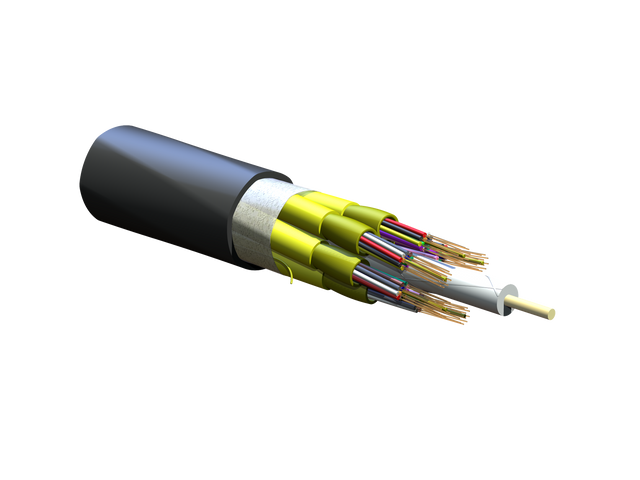

Corning 072E8F-T3131-29 | FREEDM One Unitized, Tight-Buffered Cable, Riser
Regular price
$13.03
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 072E8F-T3131-29 | FREEDM One Unitized, Tight-Buffered Cable...
Regular price
$13.03
Unit price
Brand: Corning
|
SKU:
373-COROS2-TBRD-72
Regular price
$13.03
Unit price
Description
Description
Corning 072E8F-T3131-29 | FREEDM One Unitized, Tight-Buffered Cable, Riser 72 F, Single-mode (OS2)
Corning - 072E8F-T3131-29 - Features
- 12-fiber jacketed subunits
- Quick and easy identification
- Waterblocking technology
- OSP (outdoor) applications
- Small diameter and bend radius
- Easy installation in space-constrained areas
- Color-coded fibers
- Quick and easy identification
- All-dielectric construction
- Requires no grounding or bonding
- UV-resistant, flame-retardant jacket
- Rugged, durable and easy to strip
Specifications
Specifications
Corning - 072E8F-T3131-29 - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Fiber Optic Cable
- Fiber Optic Indoor | Outdoor Cable
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 072E8F-T3131-29 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 072E8F-T3131-29 |
| EAN Code | 4056418176833 |
| Environment | Indoor/Outdoor |
| Cable Type | Tight-Buffered |
| Product Type | Distribution |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Riser (OFNR) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal, Vertical Riser |
| Fiber Count | 72 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, UL 1666, CSA FT-4, ICEA S-104-696 |
| Design and Test Criteria | ICEA S-104-696 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

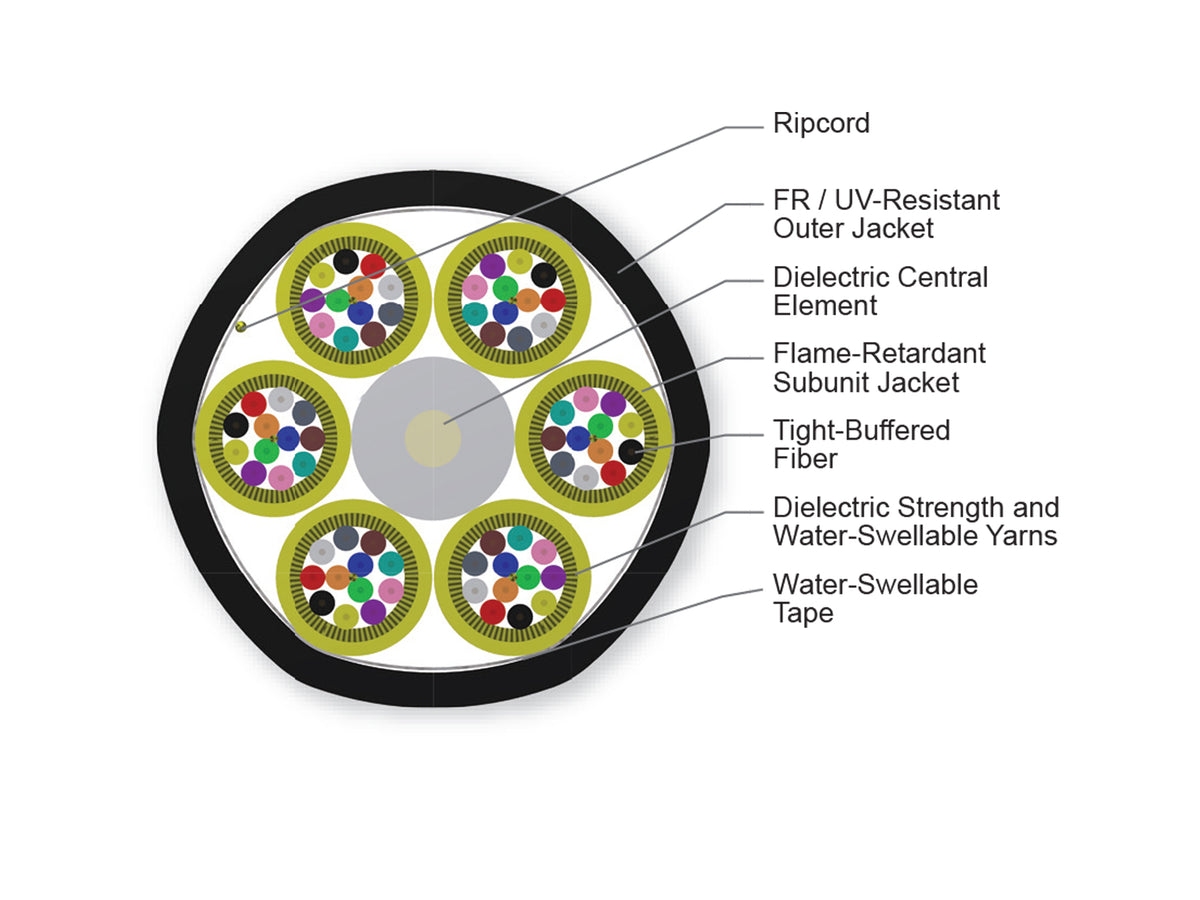

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 72 |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Fibers per Subunit | 12 |
| Number of Active Tubes | 6 |
| Subunit Color | Yellow |
| Subunit Diameter | 5.55 mm (0.22 in) |
| Tape | Water-swellable |
| Tight Buffer Color | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Flame Rating | Riser (OFNR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Min. Bend Radius Installation | 292.5 mm (11.52 in) |
| Min. Bend Radius Operation | 195 mm (7.68 in) |
| Nominal Outer Diameter | 19.5 mm (0.77 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | SMF-28e+ fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 31 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.4 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 2.871 kg/km (1.93 lb/1000 ft) |
| Type | Indoor/Outdoor Fiber Optic Cable |
| Application | Indoor/Outdoor |
| Cable Type | Tight Buffered |
| Transmission Mode | Singlemode |
| Fiber Type | OS2 |
| Jacket Flame Rating | OFNR FT4 |
| Jacket Color | Black |
| Fiber Count | 72 |
| Outside Diameter | 0.77 in. (19.5mm) |
| Construction | Tight Buffer |
