Brand: Corning
|
SKU:
372-COR8.3-RIBA-72

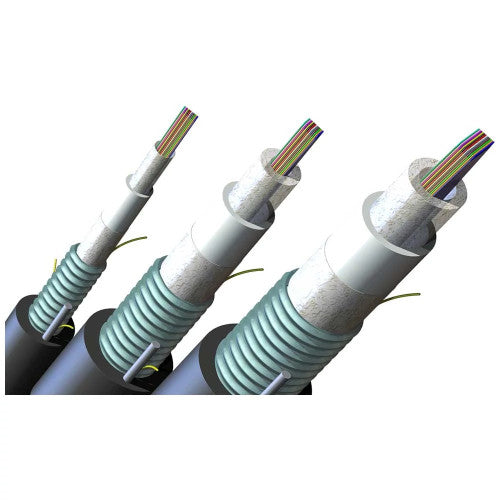

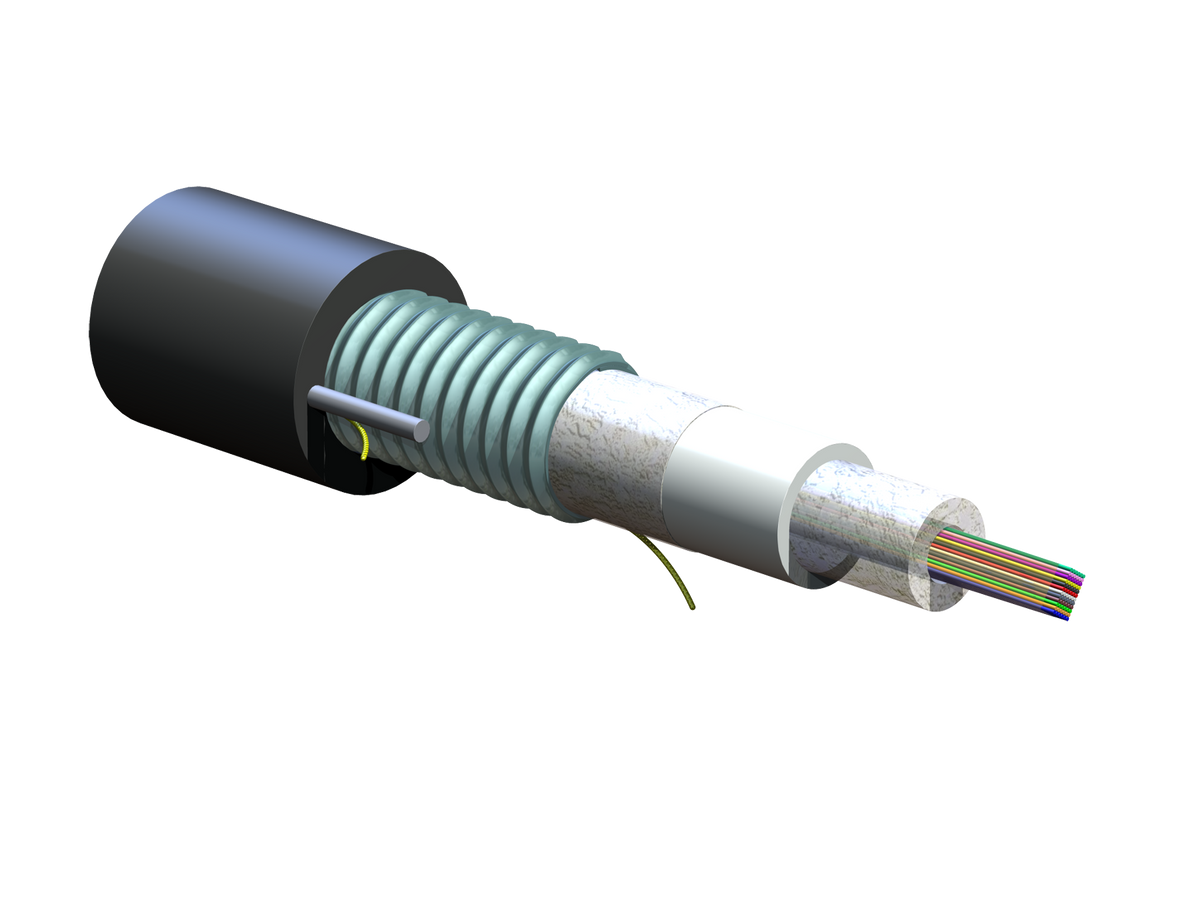

Corning 072EC5-14100D53 | SST-Ribbon Single-Tube, Gel-Free, Armored Cable
Regular price
$2.97
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 072EC5-14100D53 | SST-Ribbon Single-Tube, Gel-Free, Armored...
Regular price
$2.97
Unit price
Brand: Corning
|
SKU:
372-COR8.3-RIBA-72
Regular price
$2.97
Unit price
Shipping calculated at checkout.
Description
Description
Corning 072EC5-14100D53 | SST-Ribbon Single-Tube, Gel-Free, Armored Cable 72 F, Single-mode (OS2)
Corning - 072EC5-14100D53 - Features
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Innovative waterblocking technology
- Prevents water penetration
- 12-fiber ribbons with ribbon IDs
- Easy identification
- Up to 216 fibers in a compact design
- Easily fits in 1.0 inch inner diameter duct
Specifications
Specifications
Corning - 072EC5-14100D53 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Outdoor
- Outdoor Direct Buried Cables
Corning - 072EC5-14100D53 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 072EC5-14100D53 |
| EAN Code | 4056418190471 |
| Environment | Outdoor |
| Cable Type | Ribbon |
| Product Type | Armored |
| Fiber Category | Single-mode (OS2) |
| Application | Aerial, Duct, Direct Buried |
| Fiber Count | 72 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor lashed aerial, duct and direct-buried, indoor when installed according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-87-640, Telcordia GR-20, RDUP PE-90 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

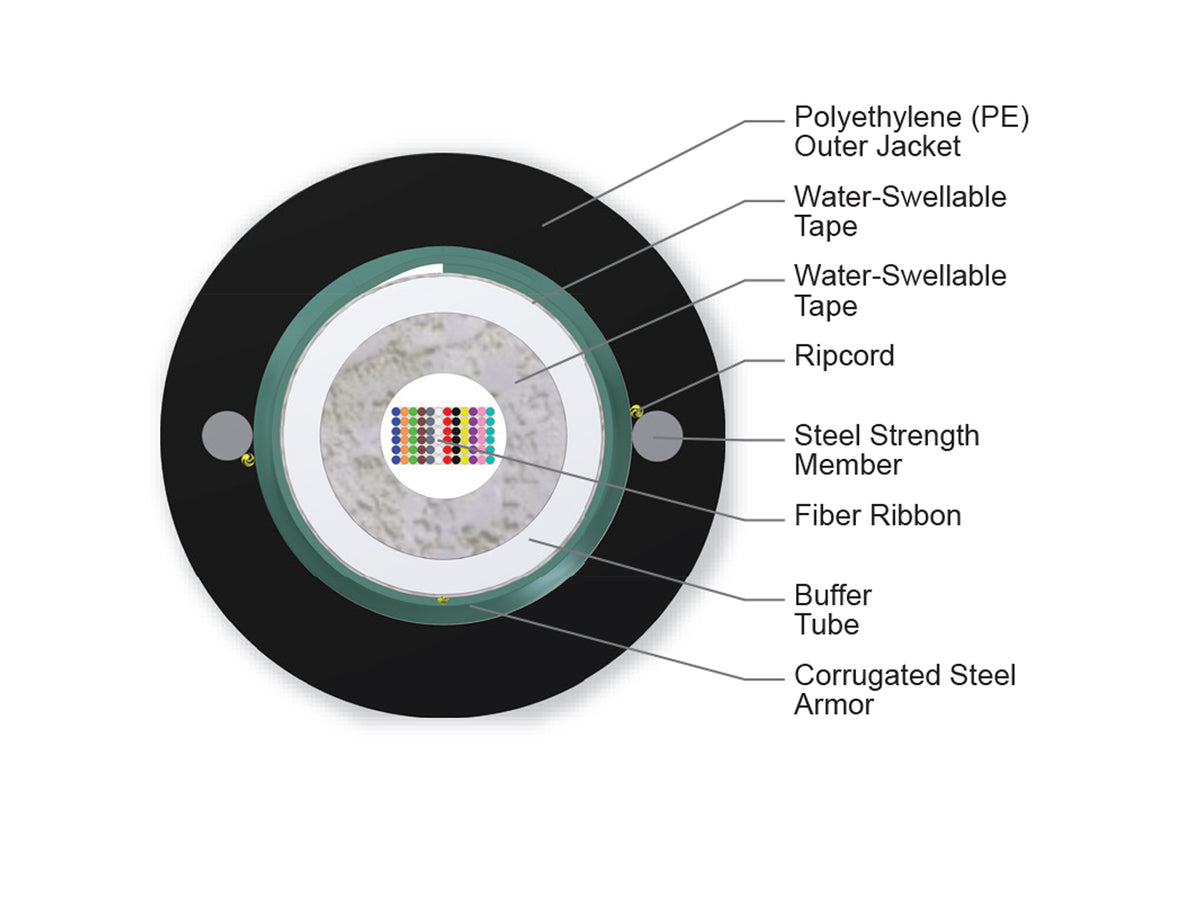

| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 72 |
| Buffer Tube Diameter | 61 mm (2.4 in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Steel strength members |
| Tape | Water-swellable |
| Tape, Layer 1 | Water-swellable |
| Tape, Layer 2 | Water-swellable |
| Ribbons per Tube | 6 |
| Fibers per Ribbon | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 890 N (200.08 lbf) |
| Min. Bend Radius Installation | 194 mm (7.64 in) |
| Min. Bend Radius Operation | 129 mm (5.08 in) |
| Nominal Outer Diameter | 12.9 mm (0.51 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 0 |
| Maximum Attenuation | 0.35 dB/km / 0.35 dB/km / 0.25 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 171 kg/km (114.91 lb/1000 ft) |
