Corning 072EN4-T4S01A20 | SOLO ADSS Short-Span, Loose Tube, Gel-Fil...
Description
Description

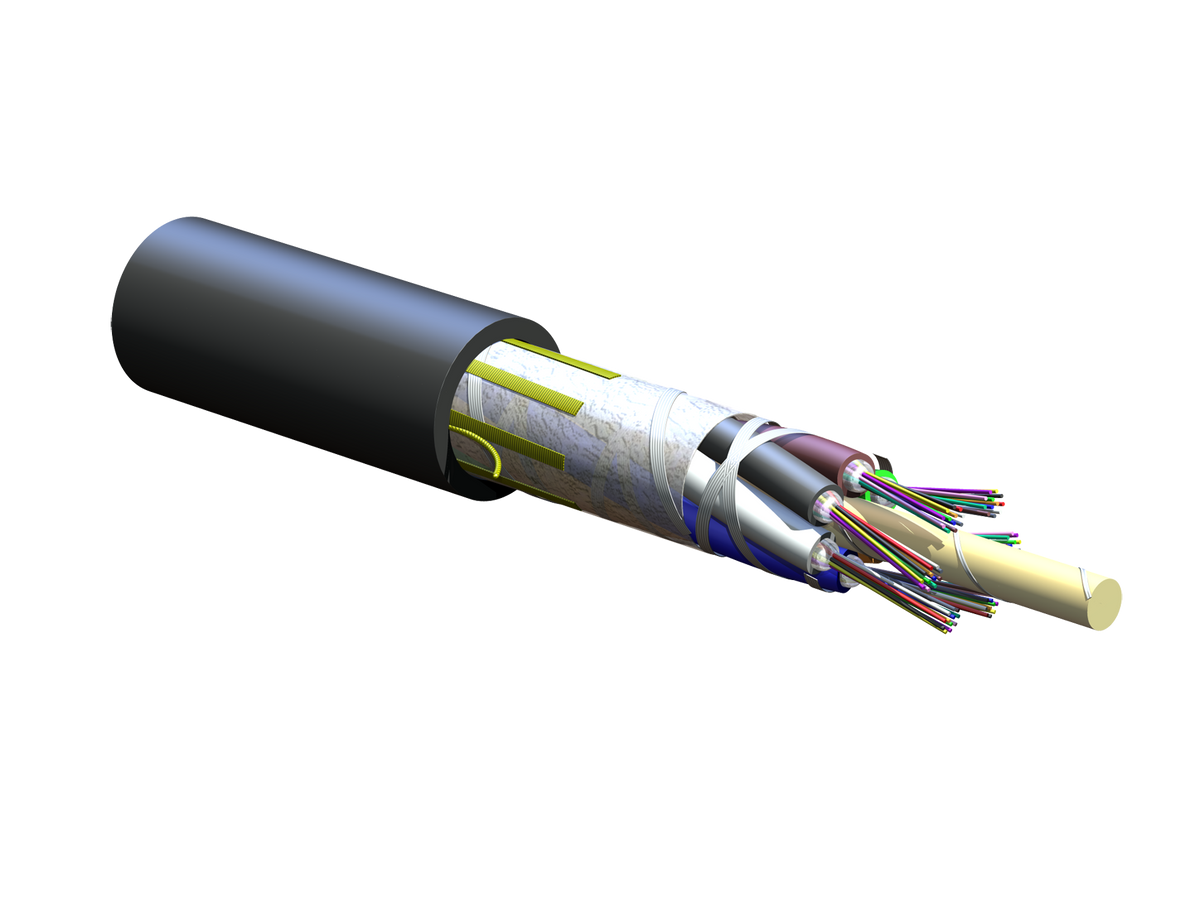

Corning SOLO ADSS short-span cables are all-dielectric, self-supporting cables designed for easy and economical one-step installation in campus backbones with self-supporting installations where metallic messengers cannot be used.
The economical single-jacket design can span distances up to 600 ft in NESC light conditions,500 ft in NESC medium conditions and 300 ft in NESC heavy conditions (see sag and tension chart for details).This cable incorporates innovative waterblocking materials, eliminating the need for traditional flooding compound and providing efficient and craft-friendly cable preparation. While the concentric, self-supporting cable design allows easy, one-step installation using standard hardware and installation methods, the SZ-stranded, loose tube design isolates optical Fiber from installation and environmental rigors and facilitates mid-span access.
Corning - 072EN4-T4S01A20 - Features
- Loose tube design
- Mechanical ruggedness and environmental durability
- Self-supporting
- Easy, one-step installation
- Track-resistant polyethylene (TRPE) jacket available
- Suitable for installations up to 25 kV electric field potential
- Innovative waterblocking design
- Provides efficient and craft-friendly cable preparation
Specifications
Specifications
Corning - 072EN4-T4S01A20 - Product Categories
- Shop by Manufacturer/Corning
- DataComm
- Communications Cable
- Fiber Optic Cable
- Fiber Optic Cables
- Outdoor
- Outdoor Aerial Cables
Corning - 072EN4-T4S01A20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 072EN4-T4S01A20 |
| EAN Code | 4056418197838 |
| Environment | Outdoor |
| Cable Type | Loose Tube |
| Product Type | Self-Supporting |
| Fiber Category | Single-mode (OS2) |
| Application | Self-Supporting |
| Fiber Count | 72 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | RDUP 7 CFR 1755.900 (formerly RUS) |
| Common Installations | Outdoor self-supporting aerial |
| Design and Test Criteria | ANSI/ICEA S-87-640 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

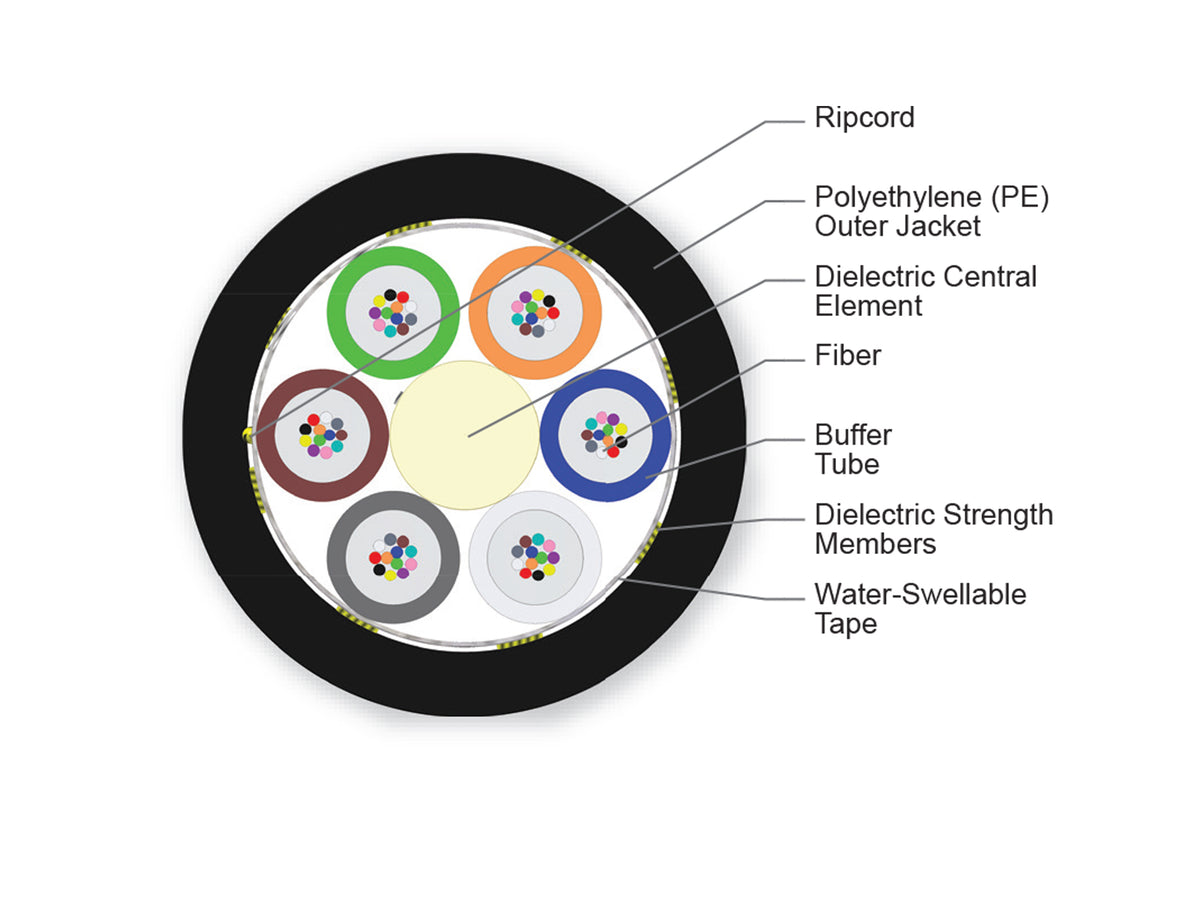

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 72 |
| Number of Ripcords | 1 |
| Buffer Tube Color Coding, Layer 1 | Blue, Orange, Green, Brown, Slate, White |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Number of Active Tubes | 6 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Min. Bend Radius Installation | 164 mm (6.46 in) |
| Min. Bend Radius Operation | 109 mm (4.29 in) |
| Nominal Outer Diameter | 10.9 mm (0.43 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 92 kg/km (61.82 lb/1000 ft) |
