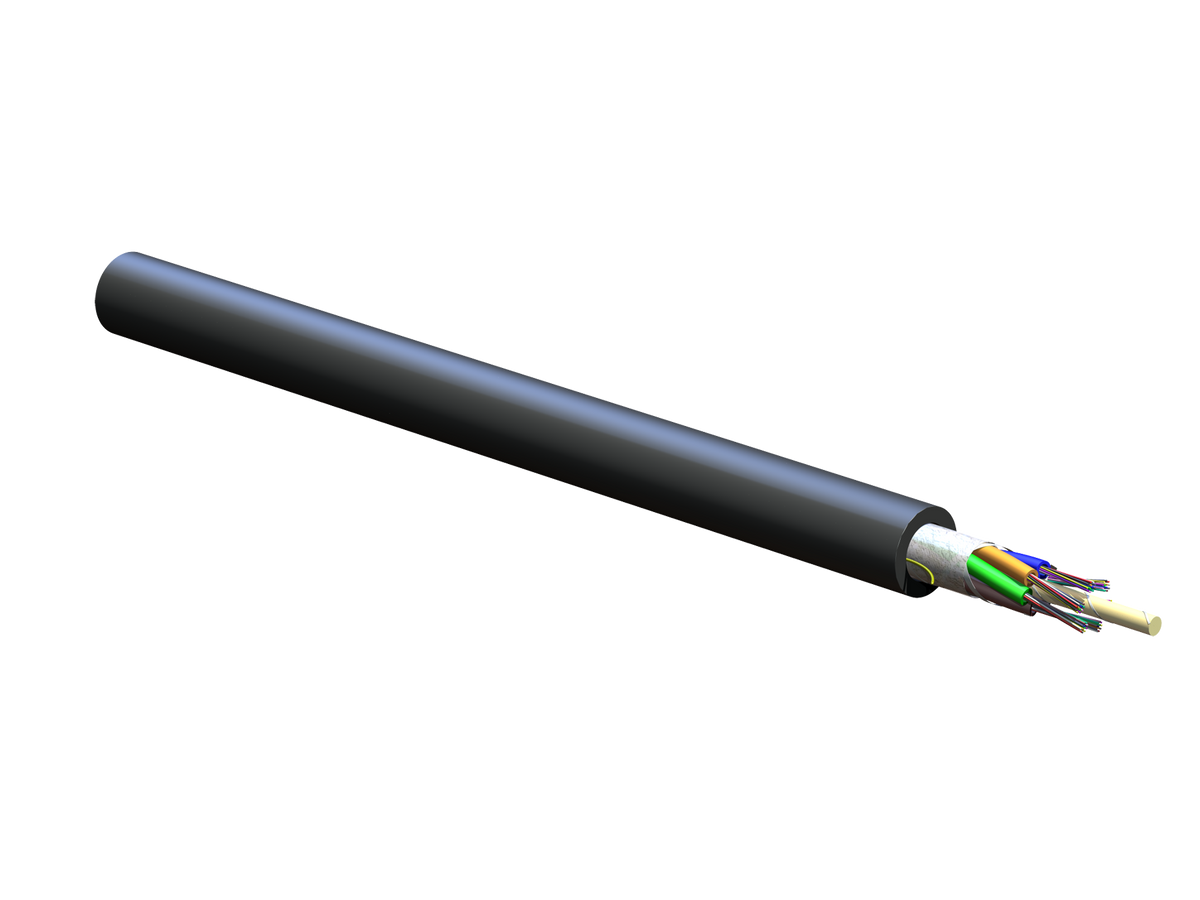

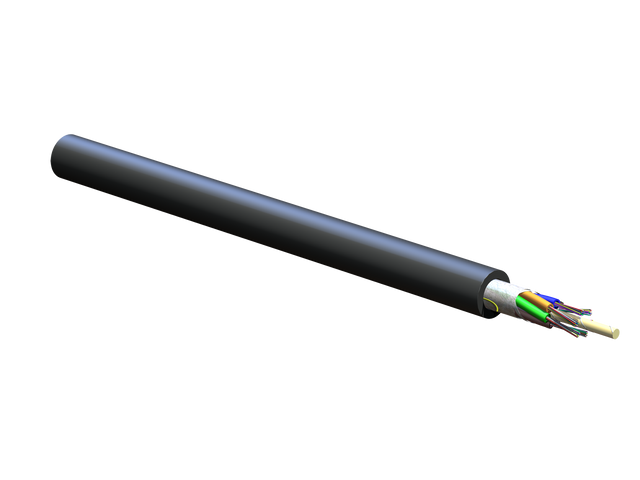

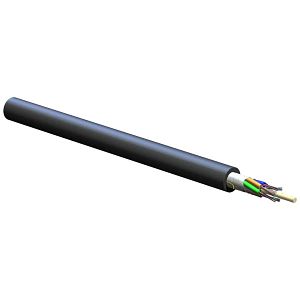

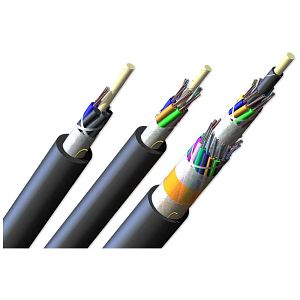

Corning 072KUF-T4130D20 | FREEDM Loose Tube, Gel-Free Cable, Riser
Description
Description
These cables are protected against water penetration by innovative water blocking materials that swell to absorb water. Waterblocking without the use of messy gels provides more efficient and craft-friendly cable preparation. It also makes cable access easier and simplifies the use of buffer tube fan-out kits. The buffer tubes and Fiber in each tube are color coded for quick, easy identification. The SZ stranded, loose tube design isolates Fiber from installation and environmental rigors and allows for easy mid-span access.
Standards RoHS: Free of hazardous substances according to RoHS 2011/65/EU Approvals and Listings: National Electrical Code (NEC) OFNR CSA OFN FT-4 Design and Test Criteria: ANSI/ICEA S-104-696
Corning - 072KUF-T4130D20 - Features
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Loose tube design
- Stable performance and compatibility with all common fiber types
- Color-coded tubes and fibers
- Quick and easy identification
- All-dielectric construction
- Requires no grounding or bonding
- Common installations
- Outdoor lashed aerial and duct
Specifications
Specifications
Corning - 072KUF-T4130D20 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 072KUF-T4130D20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 072KUF-T4130D20 |
| EAN Code | 4056418174488 |
| Environment | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Product Type | Dielectric |
| Fiber Category | 62.5 µm MM (OM1) |
| Flame Rating | Riser (OFNR) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal |
| Fiber Count | 72 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, CSA OFN FT-4 |
| Common Installations | Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-104-696 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to -10 °C (14 °F to 14 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 72 |
| Buffer Tube Color Coding | Blue, Orange, Green, Brown, Slate, White |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Buffer Tube Color | Blue, Orange, Green, Brown, Slate, White |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Number of Active Tubes | 6 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 810 N (182.1 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Min. Bend Radius Installation | 195 mm (7.68 in) |
| Min. Bend Radius Operation | 130 mm (5.12 in) |
| Nominal Outer Diameter | 13 mm (0.51 in ) |
| Optical Characteristics | - |
| Fiber Code | K |
| Fiber Type | Multimode |
| Performance Option Code | 30 |
| Fiber Core Diameter | 62.5 µm |
| Minimum Effective Modal Bandwidth (EMB) | 220 MHz*km / - |
| Maximum Attenuation | 3.4 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 300 MHz*km / 550 MHz*km |
| Serial 10 Gigabit Ethernet | 33 MHz*km/ - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM1 |
| Ordering Information | - |
| Weight | 380 kg/km (255.35 lb/1000 ft) |
| ECCN | 5A991.d |
| Country of Origin | US - United States |
| UNSPSC | 26121607 |
| Brand | FREEDM |
| Flammability Rating | Riser |
| Fiber Count | 72 |
