Corning 072ZC8-14101-A3 | Ribbon Cable Plenum 72F Bend-Improved Sin...
Regular price
$8.82
Unit price
Brand: Corning
|
SKU:
MERCK-000009
Regular price
$8.82
Unit price
Description
Description

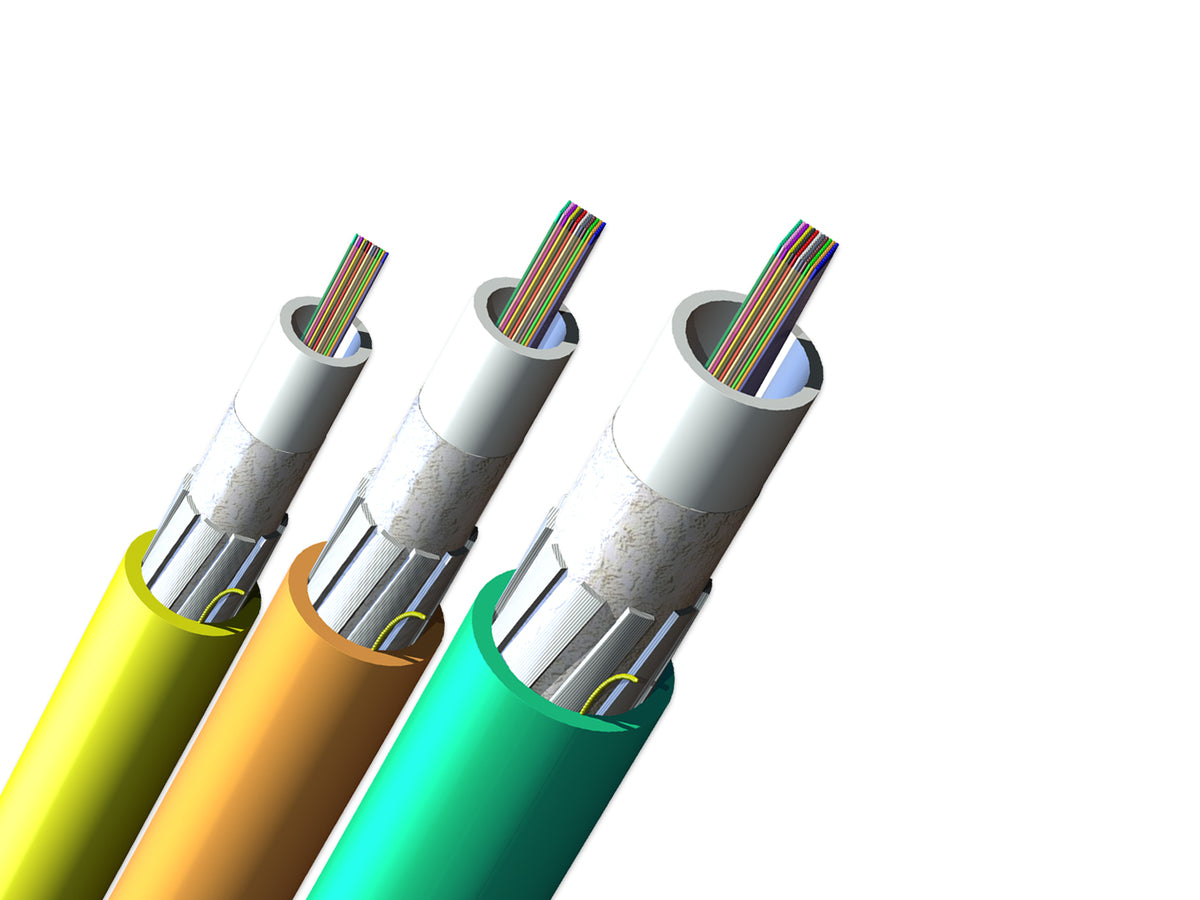

Corning 072ZC8-14101-A3 | Ribbon Cable Plenum 72F Bend-Improved Single-Mode OS2
Corning - 072ZC8-14101-A3 - Features
- Ribbon ID numbers and fiber colors
- Easily identifiable
- Flame-retardant jacket
- Rugged and durable
- Available with interlocking armor
- Additional mechanical durability
- Common installations
- Indoor plenum, riser and general building applications
Specifications
Specifications
Corning - 072ZC8-14101-A3 - Specifications
| Product Number | 072ZC8-14101-A3 |
|---|---|
| Installation Methods | Horizontal, Plenum, Riser |
| Cable Type | Ribbon |
| Environment | Indoor |
| Product Type | Interlocking Armor |
| Fiber Category | Bend-Improved SM (OS2) |
| Flame Rating | Plenum (OFNP) |
| Cable Geometry | Round |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals And Listings | National Electrical Code® (NEC®) OFCP, CSA FT-6 |
| Design And Test Criteria | ANSI/ICEA S-83-596, NFPA 262 |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F) |
