Brand: Corning
|
SKU:
372-COROS2-LTDB-72

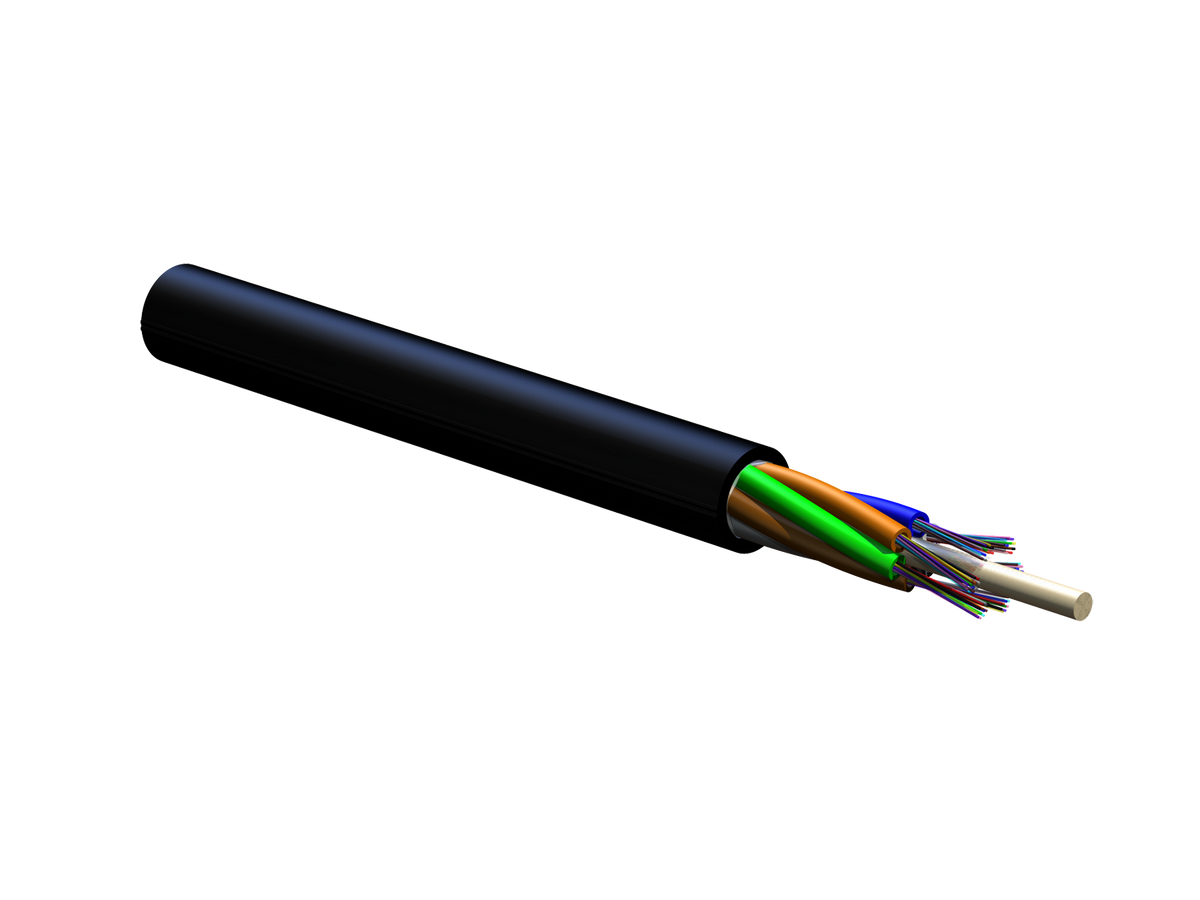

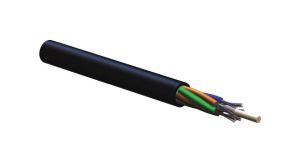

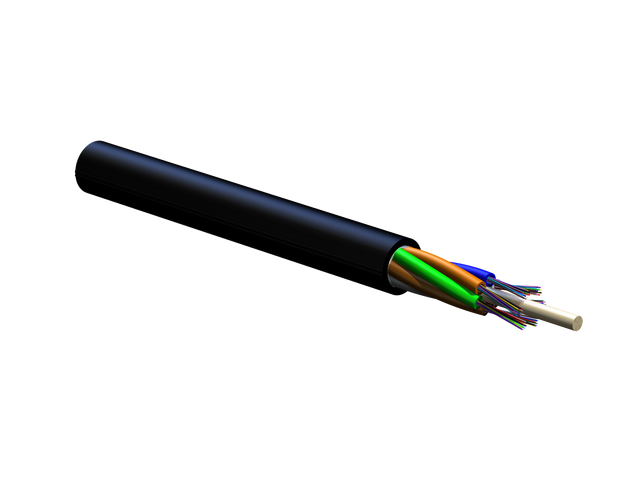

Corning 072ZU4-T4F22D20 | ALTOS Loose Tube, Gel-Free, All-Dielectric Cables with Binderless FastAccess Technology
Regular price
$2.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 072ZU4-T4F22D20 | ALTOS Loose Tube, Gel-Free, All-Dielectri...
Regular price
$2.65
Unit price
Brand: Corning
|
SKU:
372-COROS2-LTDB-72
Regular price
$2.65
Unit price
Shipping calculated at checkout.
Description
Description
Corning 072ZU4-T4F22D20 | ALTOS Loose Tube, Gel-Free, All-Dielectric Cables with Binderless FastAccess Technology 72 F, SMF-28 Ultra fiber, Single-mode (OS2)
Corning - 072ZU4-T4F22D20 - Features
- Binderless* FastAccess Technology
- Corning's Binderless FastAccess Technology refers to the combination of a Corning FastAccess Technology jacket with an innovative technology used to bind cable construction through the manufacturing process, eliminating the use of binder yarns and waterblocking tapes and resulting in a 25 percent improvement in cable access time. These technologies also reduce the overall risk of inadvertent fiber damage by reducing the need for sharp cable access tools.
- Binderless stranded optical core
- Elimination of overlapping yarn binders around stranded tubes to reduce end access time
- Fully waterblocked loose tube, gel-free design
- Simple access and no clean up
- Polyethylene jacket
- Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)
- Available with G.652.D and/or G.657.A1 fiber
- Ready for any application
Specifications
Specifications
Corning - 072ZU4-T4F22D20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Outdoor Fiber Optic Cable
- Data Communications and Networking
- Fiber Optic Cables
- Outdoor
- Outdoor Duct Cables
Corning - 072ZU4-T4F22D20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 072ZU4-T4F22D20 |
| EAN Code | 4056418344454 |
| Environment | Outdoor |
| Cable Type | Loose Tube |
| Product Type | Dielectric |
| Fiber Category | Single-mode (OS2) |
| Application | Aerial, Duct |
| Fiber Count | 72 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor lashed aerial and duct, indoor when installed according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-87-640, Telcordia GR-20, RDUP PE-90 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to -30 °C (-22 °F to -22 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Notes | Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results. |

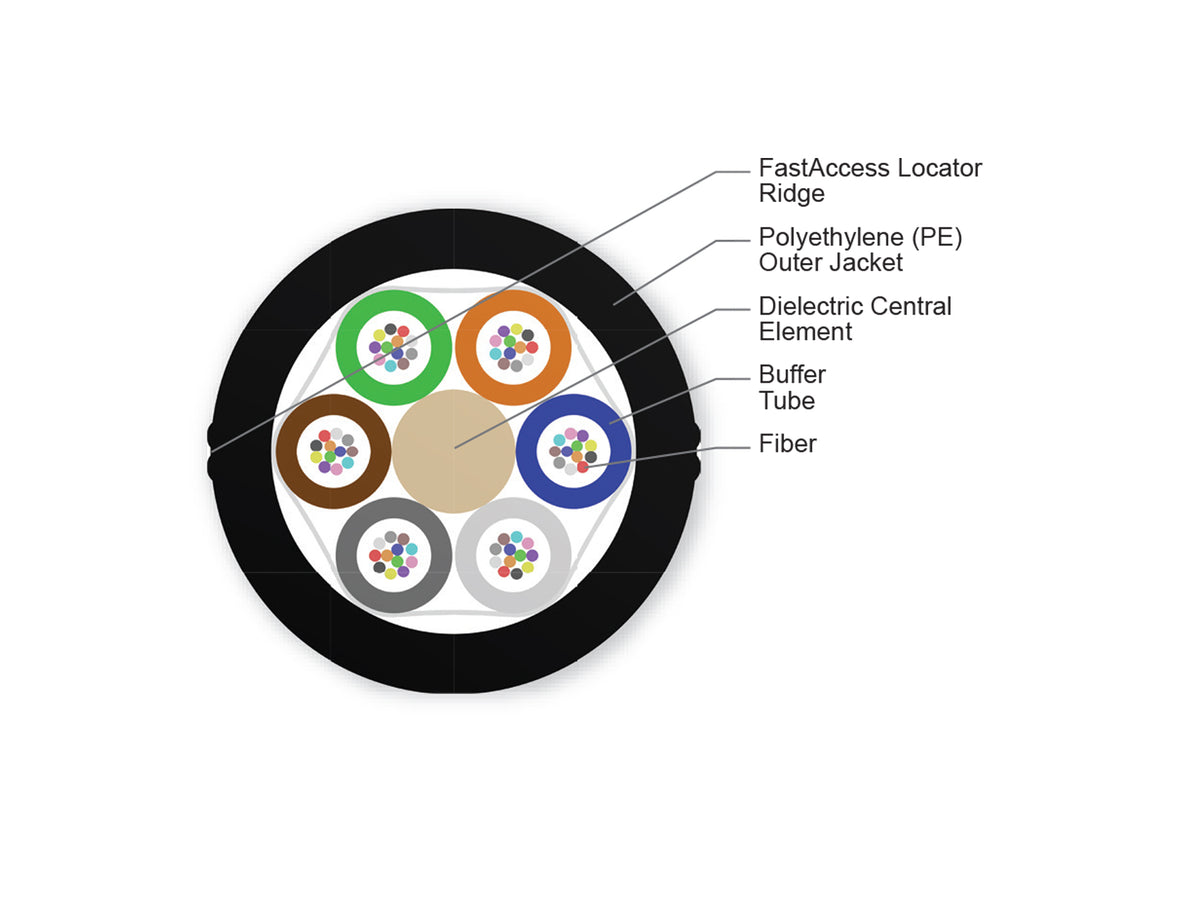

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 72 |
| Buffer Tube Color Coding | Blue, Orange, Green, Brown, Slate, White |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Buffer Tube Color | Blue, Orange, Green, Brown, Slate, White |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Number of Active Tubes | 6 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| SAP Powder | Water-swellable |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Min. Bend Radius Installation | 153 mm (6.02 in) |
| Min. Bend Radius Operation | 102 mm (4.02 in) |
| Nominal Outer Diameter | 10.2 mm (0.4 in ) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 22 |
| Maximum Attenuation | 0.34 dB/km / 0.34 dB/km / 0.22 dB/km |
| Typical Attenuation | 0.32 / 0.32 / 0.18 |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D/G.657.A1 |
| Ordering Information | - |
| Weight | 668 kg/km (448.88 lb/1000 ft) |
| Type | Outdoor Fiber Optic Cable |
| Application | Outdoor |
| Cable Type | Loose Tube |
| Transmission Mode | Singlemode |
| Fiber Type | OS2 |
| Jacket Material | Polyethylene |
| Jacket Color | Black |
| Fiber Count | 72 |
| Speed | (G.652.D, G.657.A1) |
| Outside Diameter | 0.4 in. (10.2mm) |
| Armored | No |
| Water Blocking | Gel-free |
| Construction | Loose Tube, Gel-Free |
