Brand: Corning
|
SKU:
10126366-KIO

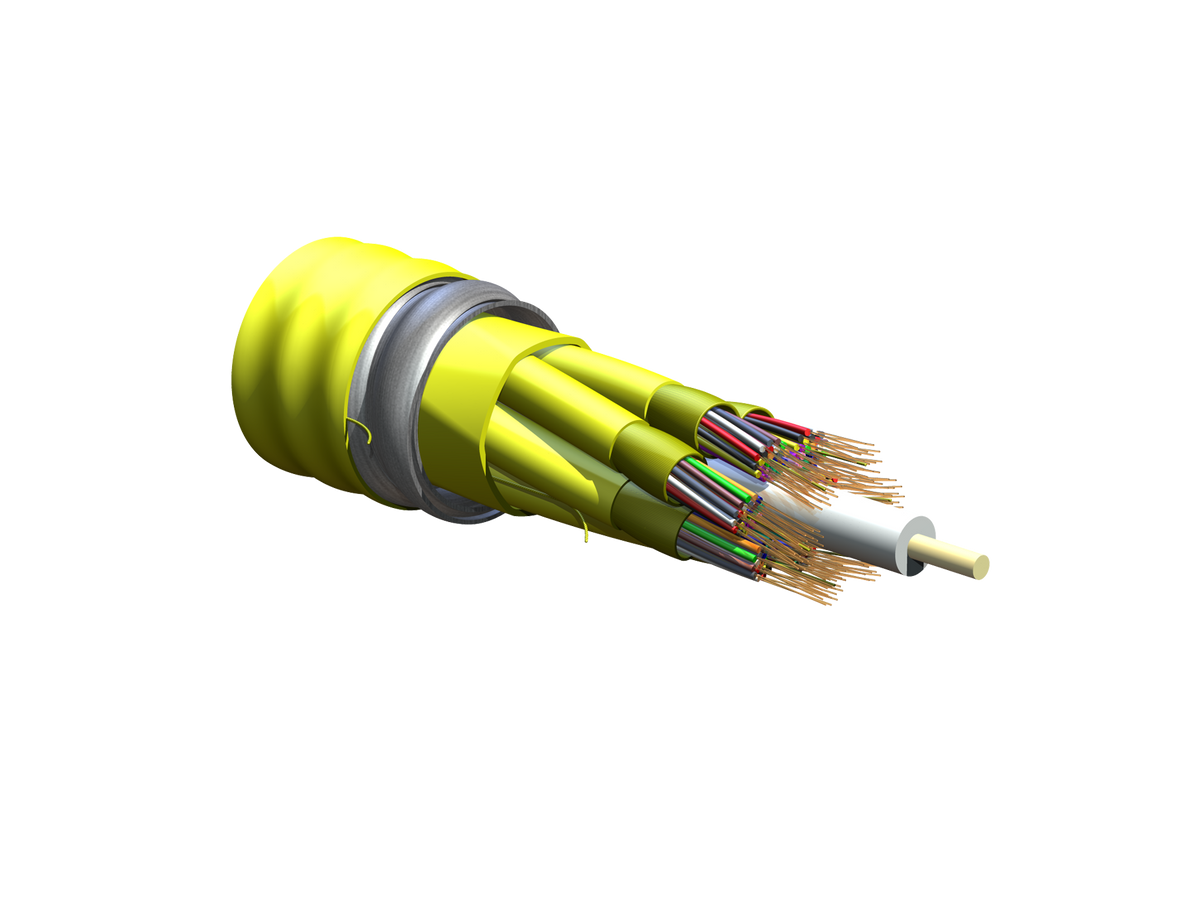

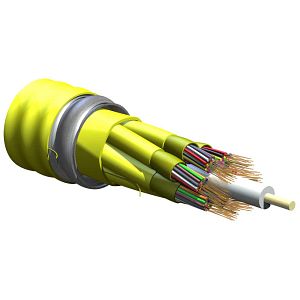

Corning 144E88-Y3131-A3 | MIC Unitized Tight-Buffered, Interlocking Armored Cable, Plenum
Regular price
$70.82
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 144E88-Y3131-A3 | MIC Unitized Tight-Buffered, Interlocking...
Regular price
$70.82
Unit price
Brand: Corning
|
SKU:
10126366-KIO
Regular price
$70.82
Unit price
Description
Description
Corning 144E88-Y3131-A3 | MIC Unitized Tight-Buffered, Interlocking Armored Cable, Plenum 144 F, Single-mode (OS2)
Standards RoHS: Free of hazardous substances according to RoHS 2011/65/EU Approvals and Listings: National Electrical Code (NEC) OFNP, CSA FT-6, ICEA S-83-596
Corning - 144E88-Y3131-A3 - Features
- 24-fiber jacketed subunits
- Quick and easy identification
- Flexible, interlocking armor design
- Seven times crush protection compared to non-armored cables
- TBII buffered fibers
- Easy, consistent stripping
- Flame-retardant jacket
- Rugged and durable
- 24-fiber jacketed subunits - Quick and easy identification
- 900 ? buffered fibers - Easy, consistent stripping
- All-dielectric construction - Requires no grounding or bonding
- Flame-retardant jacket - Rugged and durable
Specifications
Specifications
Corning - 144E88-Y3131-A3 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 144E88-Y3131-A3 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 144E88-Y3131-A3 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Interlocking Armor |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Plenum (OFCP) |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 144 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCP, CSA FT-6, ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Cable Design | - |
| Central Element | Jacketed GRP |
| Fiber Count | 144 |
| Number of Ripcords | 2 |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Fibers per Subunit | 24 |
| Inner Jacket Material | Flame-retardant |
| Number of Active Tubes | 6 |
| Subunit Color | Yellow |
| Subunit Diameter | 7 mm (0.28 in) |
| Tensile Strength Elements and/or Armoring - Layer 3 | Interlocking Armor |
| Tight Buffer Color Subunit, Layer 2 | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 200 N (44.96 lbf) |
| Max. Tensile Strength, Short-Term | 660 N (148.37 lbf) |
| Min. Bend Radius Operation | 313 mm (12.32 in) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | SMF-28e+ fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 31 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.4 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 72405 kg/km (48653.91 lb/1000 ft) |
| Country of Origin | US - United States |
| Brand | MIC Unitized |
| Flammability Rating | Plenum |
| Fiber Count | 144 |
