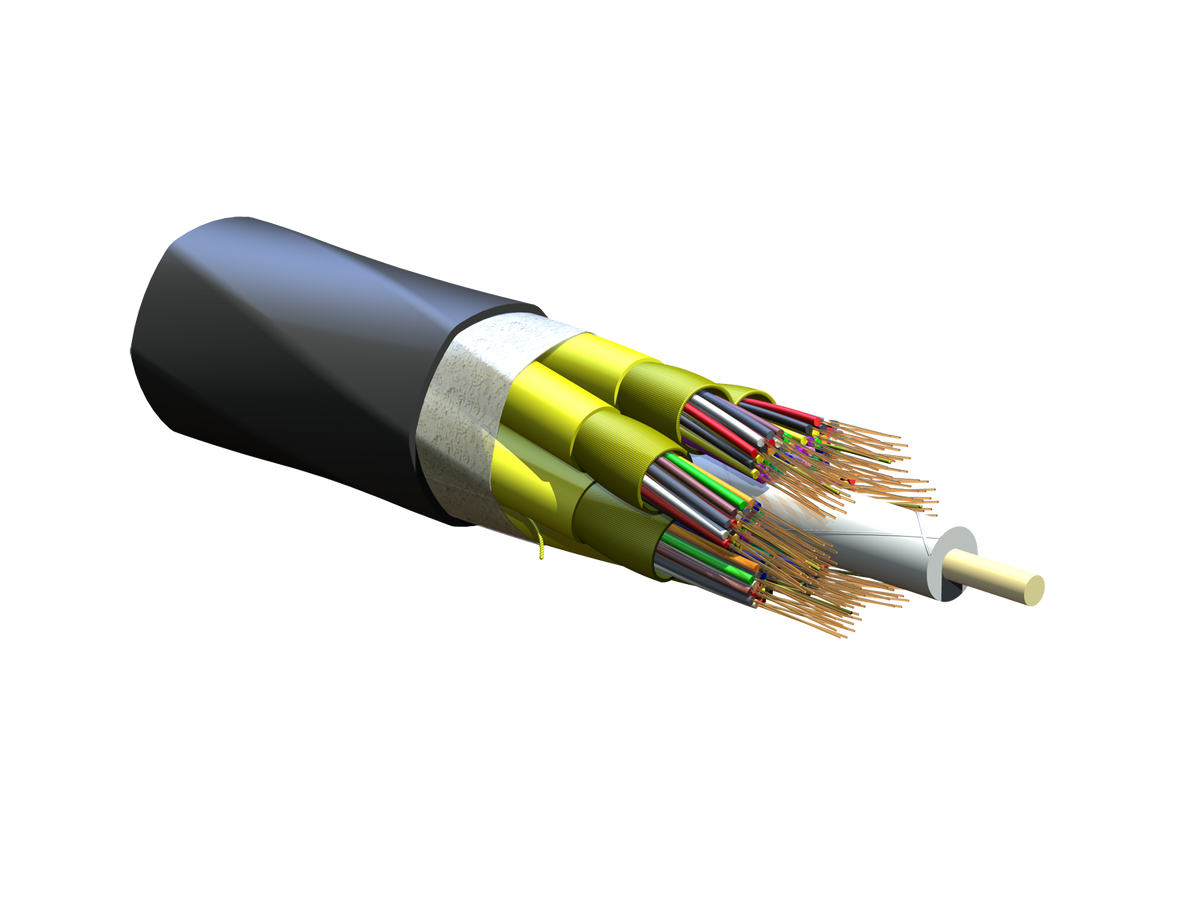

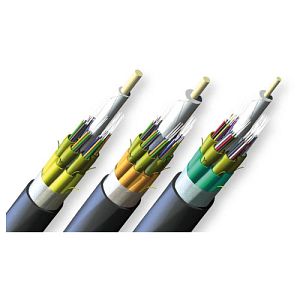

Corning 144E8P-Y3131-29 | FREEDM One Unitized, Tight-Buffered Cable, Plenum

Corning FREEDM One unitized plenum cables are flame-retardant, UV-resistant, indoor/outdoor cables designed for aerial and duct applications with no need for a transition splice when entering the building. Available in fiber counts up to 144 fibers, the tight-buffered construction facilitates easy termination for high-fiber-count applications in the local area network (LAN) and eliminates the need for fan-out kits. The design features TIA-598 color-coded 900 ?m buffered fibers for easy identification, consistent stripping and direct termination. The fibers are grouped into 6-, 12-, or 24-fiber jacketed subunits and surrounded by a dielectric central member.

Available in 50 ?m, 62.5 ?m, single-mode and hybrid versions, the cable design meets ICEA S-104-696 test criteria and is also OFNP and FT-6 listed for plenum, riser and general purpose use. The small diameter and bend radius of the cable allow for easy installation in space-constrained areas while the innovative waterblocking technology is ideal for OSP applications. The all-dielectric cable construction requires no grounding or bonding, and the UV-resistant, flame-retardant jacket is rugged, durable and easy to strip. This cable is also available with interlocking armor for special applications requiring additional mechanical durability.
