Brand: Corning
|
SKU:
372-COROS2-LTADJ-144

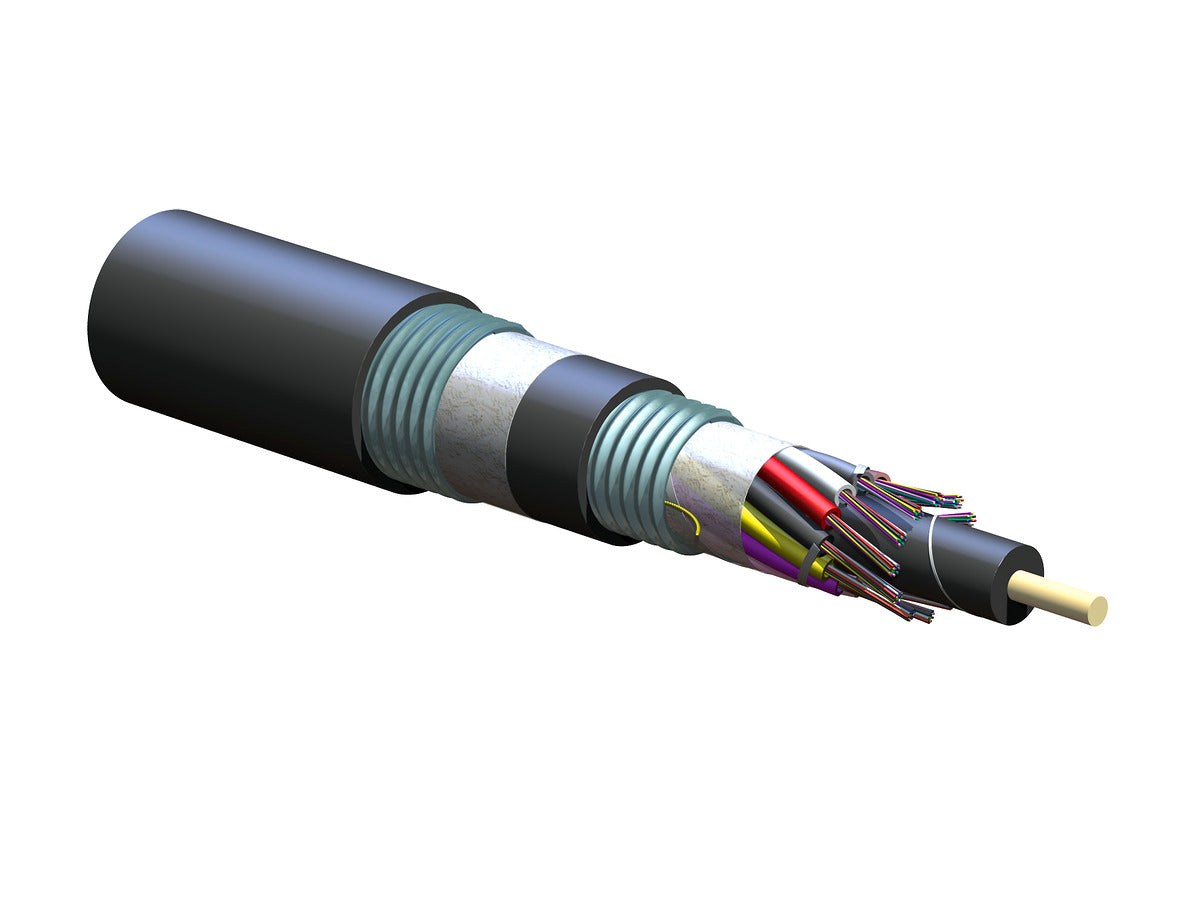

Corning 144EUD-T4101D20 | ALTOS Lite Loose Tube, Gel-Free, Double-Jacket, Double-Armored Cable 144 F, Single-mode (OS2)
Regular price
$5.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 144EUD-T4101D20 | ALTOS Lite Loose Tube, Gel-Free, Double-J...
Regular price
$5.39
Unit price
Brand: Corning
|
SKU:
372-COROS2-LTADJ-144
Regular price
$5.39
Unit price
Shipping calculated at checkout.
Description
Description
Corning 144EUD-T4101D20 | ALTOS Lite Loose Tube, Gel-Free, Double-Jacket, Double-Armored Cable 144 F, Single-mode (OS2)
Specifications
Specifications
Corning - 144EUD-T4101D20 - Product Categories
- Fiber Optic Cables
- Outdoor
- Outdoor Direct Buried Cables
Corning - 144EUD-T4101D20 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 144EUD-T4101D20 |
| Item Description | ALTOS Lite Loose Tube, Gel-Free, Double-Jacket, Double-Armored Cable 144 F, Single-mode (OS2) |
| General Specifications | - |
| Product Number | 144EUD-T4101D20 |
| EAN Code | 4056418167848 |
| Environment | Outdoor |
| Cable Type | Loose Tube |
| Product Type | Armored |
| Fiber Category | Single-mode (OS2) |
| Application | Direct Buried |
| Fiber Count | 144 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | USDA Rural Development Programs |
| Design and Test Criteria | ANSI/ICEA S-87-640 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30°C to 70°C (-22°F to 158°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

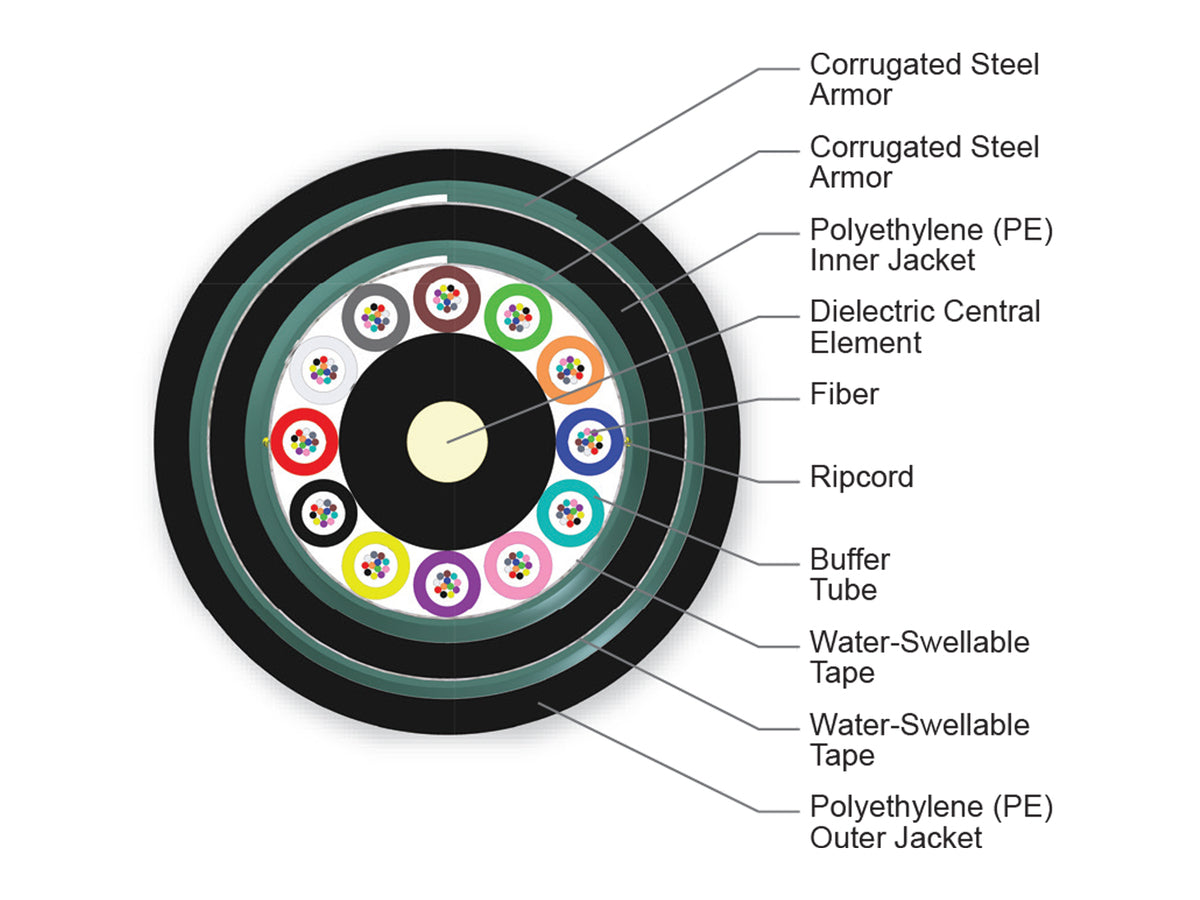

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 144 |
| Number of Ripcords | 4 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Corrugated steel tape armor |
| Tensile Strength Elements and/or Armoring - Layer 2 | Corrugated steel tape armor |
| Buffer Tube Color | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Buffer Tube Diameter | 2.5mm (0.1in) |
| Inner Jacket Material | Polyethylene (PE) |
| Number of Active Tubes | 12 |
| Number of Tube Positions | 12 |
| Tape | Water-swellable |
| Tape, Layer 1 | Water-swellable |
| Tape, Layer 2 | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Color Code Standards | Telcordia |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890N (200.08lbf) |
| Max. Tensile Strength, Short-Term | 2700N (606.98lbf) |
| Nominal Outer Diameter | 21.6mm (0.85in) |
| Min. Bend Diameter Installation | 648mm (25.51in) |
| Min. Bend Diameter Operation | 432mm (17.01in) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 01 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Dimensions | - |
| Cable Weight | 412kg/km (276.85lb/1000 ft) |
