Corning 144T81-Y3190-24 | Unitized Tight-Buffered Cable, Riser 144 F, 50 µm multimode (OM4)
Regular price
$44.38
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 144T81-Y3190-24 | Unitized Tight-Buffered Cable, Riser 144...
Regular price
$44.38
Unit price
Brand: Corning
|
SKU:
371-COROM4-TBD-144
Regular price
$44.38
Unit price
Shipping calculated at checkout.
Description
Description

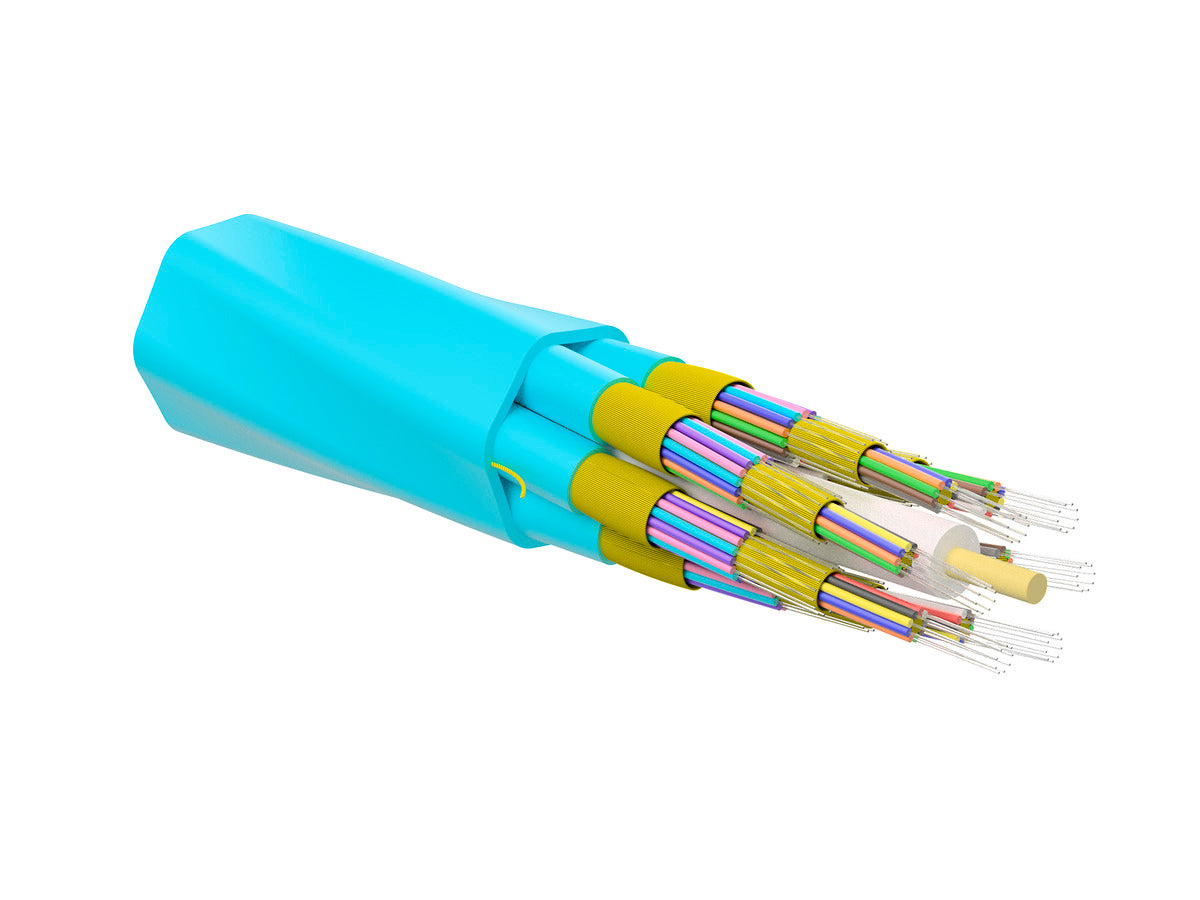

Corning 144T81-Y3190-24 | MIC Unitized Tight-Buffered Cable, Riser 144 F, 50 µm multimode
Corning - 144T81-Y3190-24 - Features
- Quick and easy identification
- Easy, consistent stripping
- Requires no grounding or bonding
- Rugged and durable
Specifications
Specifications
Corning - 144T81-Y3190-24 - Specifications
| Product Number | 144T81-Y3190-24 |
|---|---|
| EAN Code | 4056418780382 |
| Cable Type | Tight-Buffered |
| Environment | Indoor |
| Product Type | Distribution |
| Fiber Category | 50 µm MM (OM4) |
| Flame Rating | Riser (OFNR) |
| Application | General purpose, Horizontal |
| Cable geometry | Round |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, CSA FT-4 |
| Design and Test Criteria | ICEA S-83-596 |
| Temperature Range, Installation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Temperature Range, Operation | -20 °C to 70 °C (-4 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

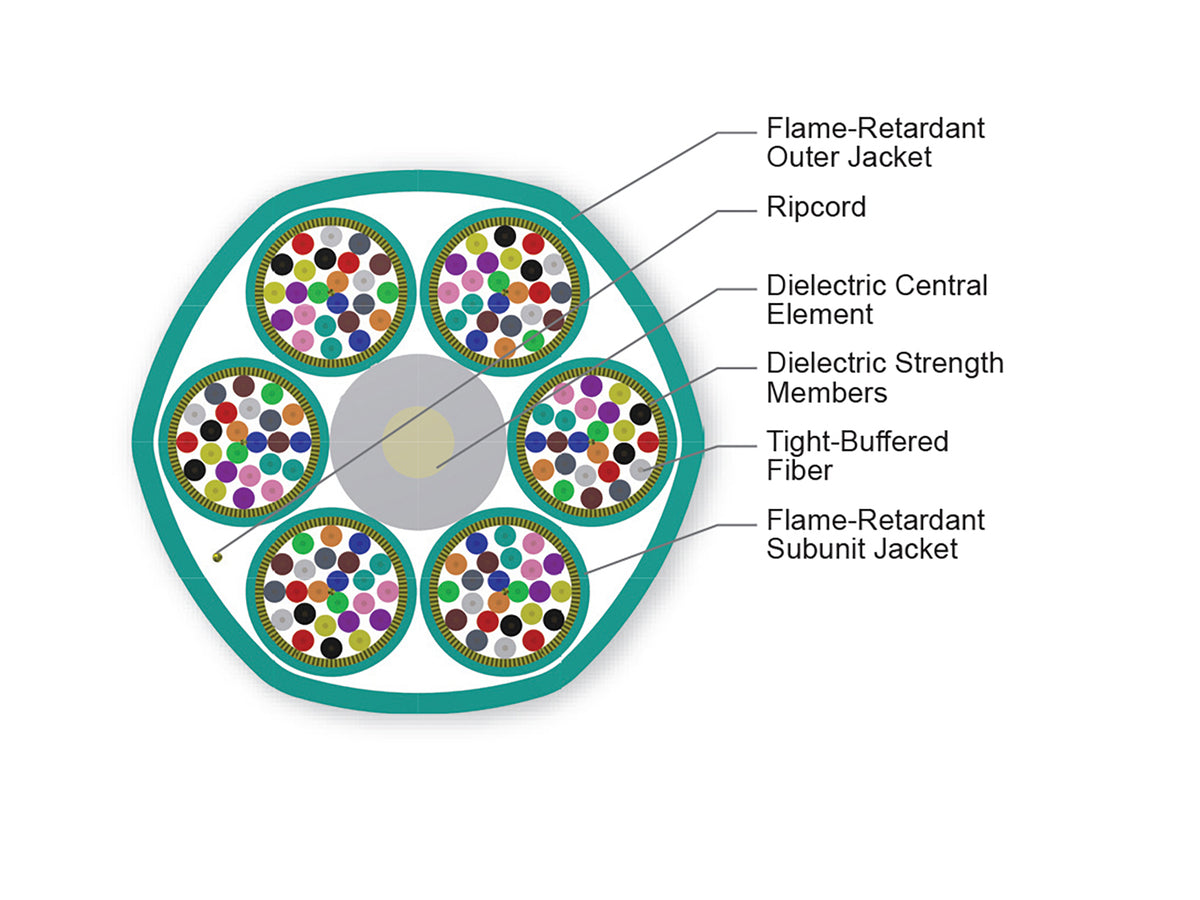

| Central Element | Jacketed GRP |
| Fiber Count | 144 |
| Number of Ripcords | 13 |
| Outer Jacket Color | Aqua |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Fibers per Subunit | 24 |
| Number of Active Tubes | 6 |
| Subunit Color | Aqua |
| Subunit Diameter | 6.8 mm (0.27 in) |
| Tight Buffer Color Subunit | Blue, Orange, Green |
| Tight-Buffer Color Subunit, Layer 1 | Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Tight Buffer Color Subunit, Layer 2 | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Flame Rating | Riser (OFNR) |
| Max. Tensile Strength, Short-Term | 1320 N (296.75 lbf) |
| Min. Bend Radius Installation | 352.5 mm (13.88 in) |
| Min. Bend Radius Operation | 235 mm (9.25 in) |
| Nominal Outer Diameter | 23.5 mm (0.93 in ) |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 90 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 550 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM4 |
| Cable Weight | 4336 kg/km (2913.66 lb/1000 ft) |
