Brand: Corning
|
SKU:
372-COROS2-LTAUM-144

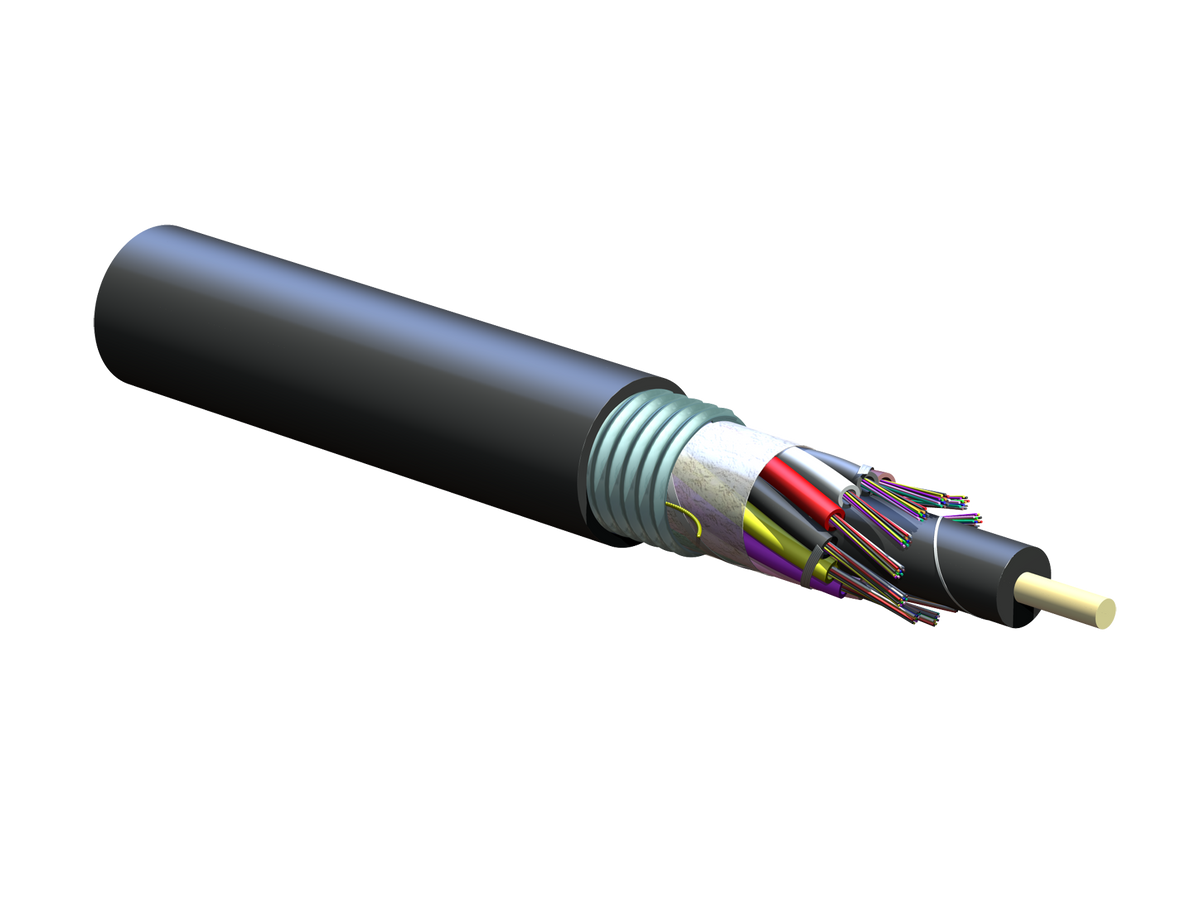

Corning 144ZUC-T4122D20 | ALTOS Lite Loose Tube, Gel-Free, Single-Jacket, Single-Armored Cable
Regular price
$3.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 144ZUC-T4122D20 | ALTOS Lite Loose Tube, Gel-Free, Single-J...
Regular price
$3.98
Unit price
Brand: Corning
|
SKU:
372-COROS2-LTAUM-144
Regular price
$3.98
Unit price
Shipping calculated at checkout.
Description
Description
Corning 144ZUC-T4122D20 | ALTOS Lite Loose Tube, Gel-Free, Single-Jacket, Single-Armored Cable 144 F, SMF-28 Ultra fiber, Single-mode (OS2)
Corning ALTOS Lite gel-free, single armored cables are designed for direct-buried installations. The loose tube design provides stable and highly reliable transmission parameters for a variety of voice, data, video and imaging applications.
Corning - 144ZUC-T4122D20 - Features
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Polyethylene jacket
- Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)
- Corrugated steel tape armor
- Provides rodent resistance for direct-buried applications
- Gel-free waterblocking technology - Craft-friendly cable preparation
- Polyethylene jacket - Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)
- Corrugated steel tape armor - Provides rodent resistance for direct-buried applications
Specifications
Specifications
Corning - 144ZUC-T4122D20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Outdoor Fiber Optic Cable
- DataComm
- Communications Cable
- Fiber Optic Cable
- Fiber Optic Cables
- Outdoor
- Outdoor Direct Buried Cables
Corning - 144ZUC-T4122D20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 144ZUC-T4122D20 |
| Environment | Outdoor |
| Cable Type | Loose Tube |
| Product Type | Armored |
| Fiber Category | SMF-28 Ultra fiber |
| Application | Aerial, Direct Buried, Duct |
| Fiber Count | 144 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor lashed aerial, duct and direct-buried, indoor when installed according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-87-640 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to -30 °C (-22 °F to -22 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Notes | Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results. |
| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 144 |
| Buffer Tube Color Coding | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Corrugated steel tape armor |
| Buffer Tube Color | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Number of Active Tubes | 12 |
| Number of Tube Positions | 12 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Min. Bend Radius Installation | 263 mm (10.35 in) |
| Min. Bend Radius Operation | 175 mm (6.89 in) |
| Nominal Outer Diameter | 17.5 mm (0.69 in ) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 22 |
| Maximum Attenuation | 0.34 dB/km / 0.34 dB/km / 0.22 dB/km |
| Typical Attenuation | 0.32 / 0.32 / 0.18 |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D/G.657.A1 |
| Ordering Information | - |
| Weight | 245 kg/km (164.63 lb/1000 ft) |
