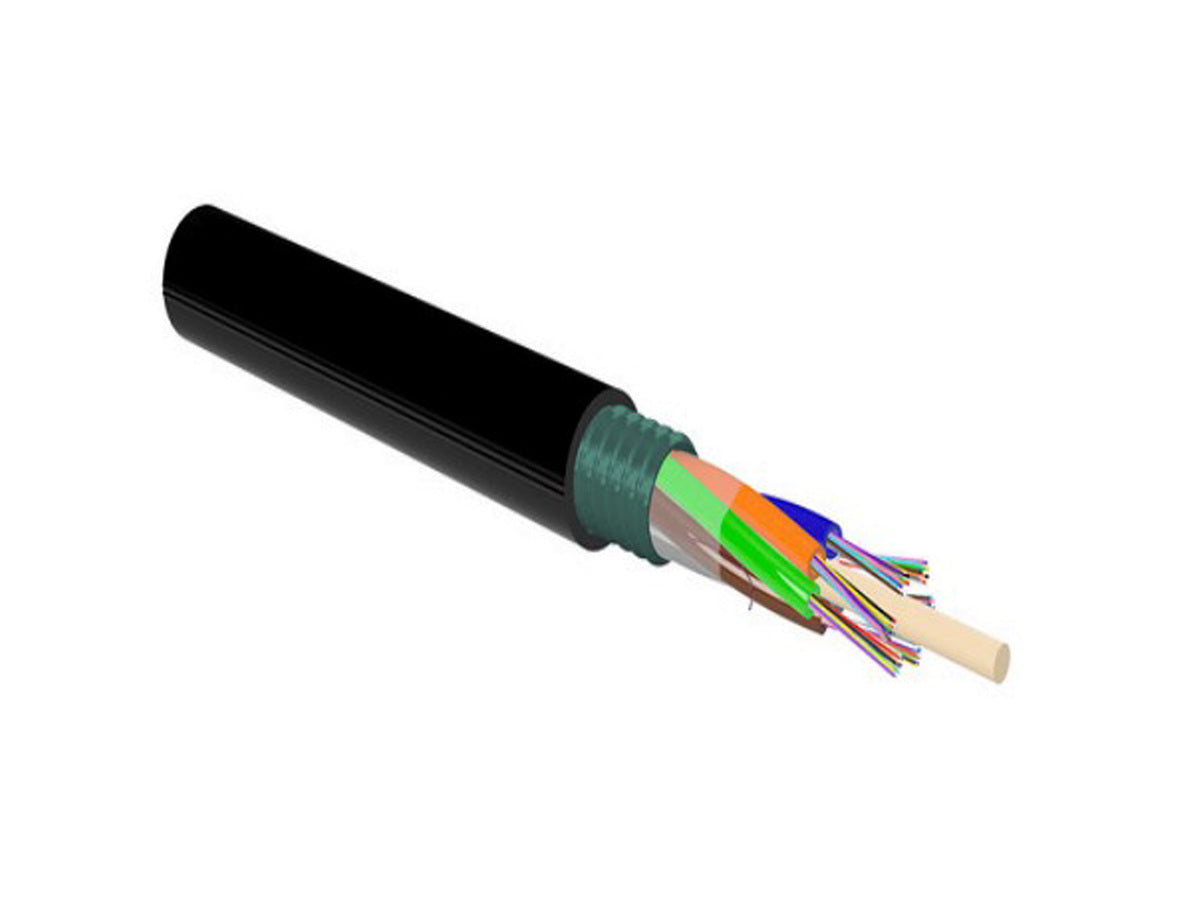

Corning 144ZUC-Y4F22D20 | Altos Hd Lite, Gel-Free, Single-Jacket, S...
Description
Description

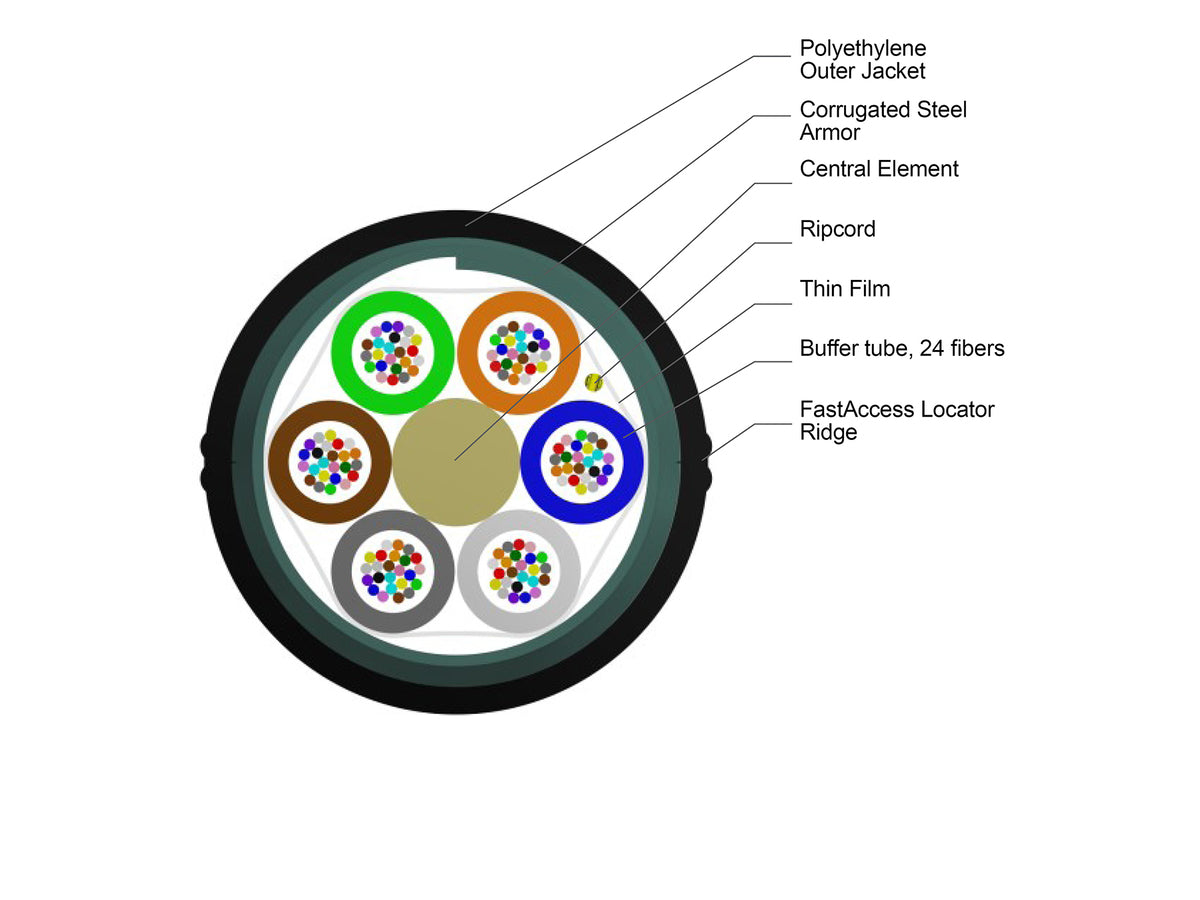

Corning® ALTOS® HD Lite gel-free, single-jacket, singlearmored cables with FastAccess® technology are designedfor direct-buried installations.The 24 fiber high-density buffer tube provides a 30 oercentreduction in cable OD resulting in a 2x increase in fiberdensity. This improved density equals additional space formaximizing duct capacity. The innovative FastAccesstechnology feature combined with the gel-free loose tubedesign simplifies jacket removal and buffer tube access.The gel-free cable is fully waterblocked using craft-friendlywater-swellable materials for simple access with no cleanup.The loose tube design employs Corning's suite of opticalfiber to provide reliable transmission parameters for avariety of voice, data, video, imaging and networkapplications. The flexible buffer tubes are easy to route inclosures, and the SZ-stranded, loose tube design isolatesfibers from installation and environmental rigors whileallowing easy midspan access. The single-armoredconstruction provides additional crush and rodentprotection. These cables have a polyethylene jacket that isrugged, durable and easy to strip
Corning - 144ZUC-Y4F22D20 - Features
- ALTOS® HD FastAccess® Technology With the combination of a jacket with an innovative technology used to bind cable construction through the manufacturing process, eliminating the use of binder yarns and waterblocking tapes and up to a 60 percent improvement in cable access time. These technologies also reduce the overall risk of inadvertent fiber damage by reducing the need for sharp cable access tools.
- Polyethylene jacket Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)
- Fully waterblocked loose tube all-dielectric gel-free design Simple access and no clean up
- Single-armored construction
- Available in Corning's 62.5 µm and 50 µm multimode, standard single-mode (G.652.D, G.657.A1), dispersion shifted single-mode (G.655, G.654), and hybrid versions
Specifications
Specifications
Corning - 144ZUC-Y4F22D20 - Specifications
| Cable Type | Loose Tube |
|---|---|
| Environment | Outdoor |
| Product Type | Dielectric armor |
| Fiber Category | SMF-28® Ultra |
| Application | Aerial, Direct Buried, Duct |
| Cable | geometry Round |
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Central Element | Dielectric |
| Fiber Count | 144 |
| Buffer Tube Diameter | 2.7 mm (0.11 in) |
| Number of Active Tubes | 6 |
| Tape | Thin Film |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 24 |
| Cable Weight | 139 kg/km (93.4 lb/1000 ft) |
