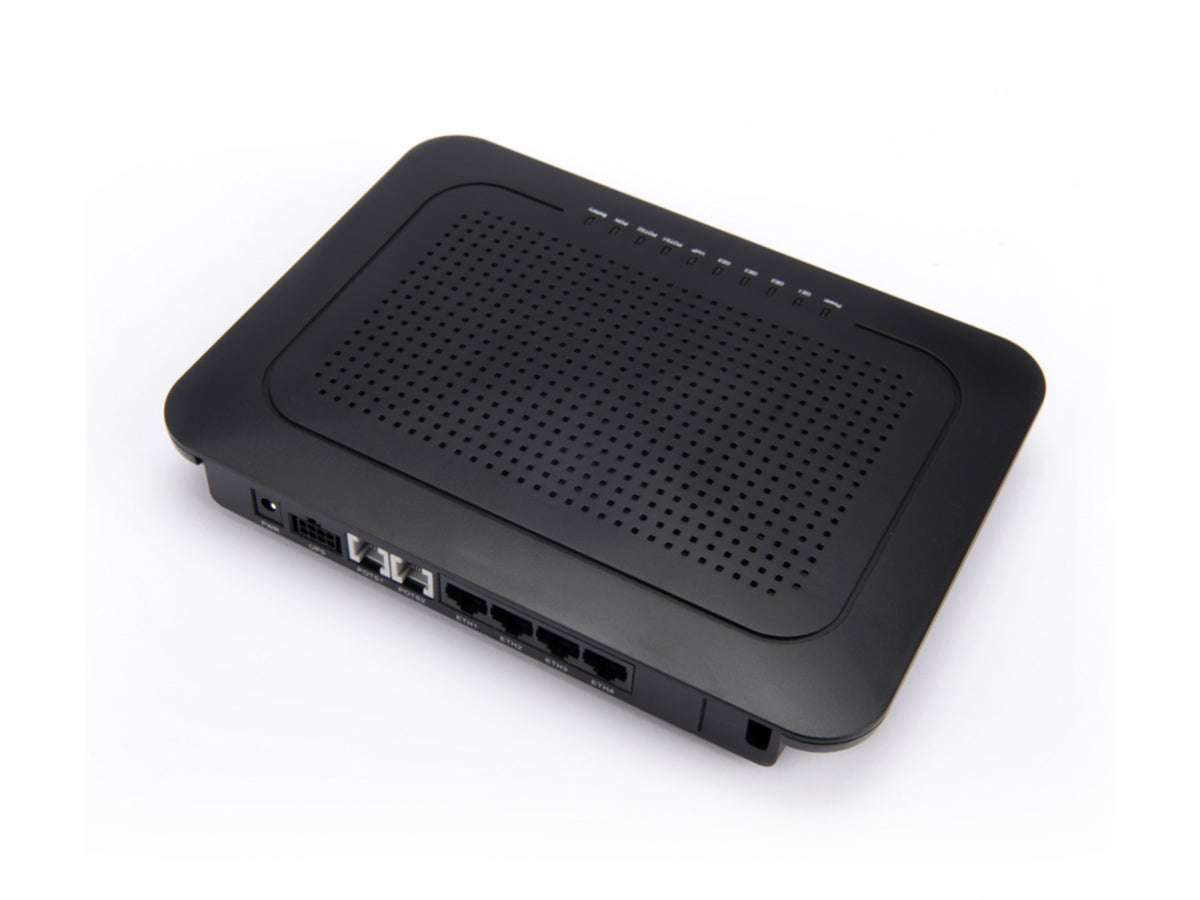

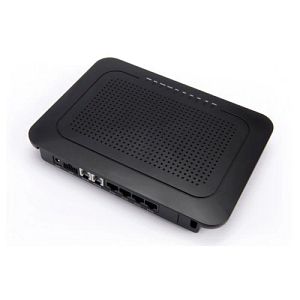

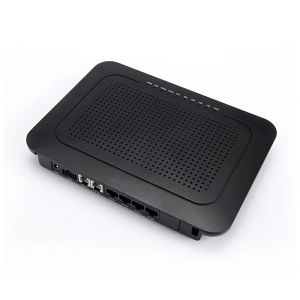

Corning 1LAN-SDAN-7291 | Software-Defined Access Node (SDAN), 7200 ...
Regular price
$585.38
Unit price
Brand: Corning
|
SKU:
1018763
Regular price
$585.38
Unit price
Description
Description
Corning 1LAN-SDAN-7291 | Software-Defined Access Node (SDAN), 7200 Series 2P+4GE POE
The SDAN terminates GPON or Active Ethernet fiber via a single SC/APC type optical connector and complies with GPON Standard ITU-T Rec. G984.2 Amendments. In GPON mode, the SDAN receives data at 2.488 Gbps and sends upstream data at 1.244 Gbps over 1490 nm, 1310 nm wavelengths respectively. In Active Ethernet mode, the SDAN transmits and receives at 1 Gbps. The following physical layer features are supported
Corning - 1LAN-SDAN-7291 - Features
- Multiple port configurations
- Supports both GPON and Active ethernet
- Easy connections to PoE devices
- Remote or local power options available
- Supports multiple PoE types
- Class B+ and optionally Class C optics
- Class I laser Transceiver complies with FDA21 CFR 1040.10 and 1040.11
- Received Optical Power monitoring
Specifications
Specifications
Corning - 1LAN-SDAN-7291 - Product Categories
- Shop by Manufacturer/Corning
- Networking
- In-building Wireless
- In-building Wireless
- Products
- SD-LAN Solutions
Corning - 1LAN-SDAN-7291 - Specifications
| Standards | - |
|---|---|
| Standards | G.726-32, TR-143, EMC - EN 300 386, IEEE 802.1p marking/remarking, DSCP mapping, ITU-T G.984.4 management, G.711 (? and a law), Plenum-Rated, ITU-T G.988 management, TR-111, G.722, H.248 (RFC 3525), TR-124, FDA - FCC 47 CFR Part 15, Class B, FDA - FDR 21 CFR 1040.10, Class I, GR-909 Metallic Loop Testing, Safety - UL/CSA 60950, WEEE Emissions, ITU-T G.988, IEEE 802.1d Ethernet bridging and switching, ETSI, RFC 3435 - MGCP, RoHS6 Emissions, G.726-32, FDA - FDR 21 CFR 1040.11, Class I, Safety - IEC 60950, EMC - EN 55024 Class B, RFC 3261 - SIP, G.729, CE: Compliant, EMC - EN 55022 Class B, IEEE 802.1Q including VLAN translation, filtering, tagging, stacking (Q-in-Q), IEEE 802.3at Type 1, 2, and 3 (8GE Port Variant ONLY), ITU-T G.984, EMC - FCC PART 15, SUBPART B, CLASS B, TR-101 |
| Environmental Conditions | - |
| Temperature Range, Operation | -5 °C to 50 °C (23 °F to 122 °F ) |
| Temperature Range, Storage | -5 °C to 50 °C (23 °F to 122 °F ) |
| Relative Humidity, Operation | 5% to 95% (non-condensing) |
| Relative Humidity, Storage | 5% to 90% (non-condensing) |
| Hardware | - |
| Optical Network | GPON/Active Ethernet Configurable |
| Ports | 2 POTS ports, Four independent power sourcing equipment PSE gigabit ethernet port |
| Physical/Mechanical | - |
| LED Indicators | LAN Data, POTS, Battery, Management, Power, Fail, Network |
| Mounting/Installation Options | In-Wall, Wall-Mount, Desk-Mount |
| Optical Characteristics | - |
| Receiver Sensitivity | -27 dBm |
| Optical Wavelength | 1490 +/- 10 nm Rx, 1310 +/- 20 nm Tx |
| Upstream Data Rate | GPON: 1.25 Gbps, Active Ethernet: 1 Gbps |
| Average Launch Power | -0.5 to +5 dBm |
| SD-LAN Networking | - |
| Enterprise LAN | MDI/MDIX Auto Sensing and Auto Negotiation, Up to 12 VLAN groups per port, Up to 256 multicast groups, IGMP V2/V3 Snooping with Immediate Leave, Up to 1024 MAC address entries |
| GE PoE Ethernet Port | Independent Power Sourcing Equipment (PSE) Gigabit Ethernet Ports, Four independent power sourcing equipment PSE gigabit ethernet port, Regulate port power up to 15.4W for Type 1 Power, 2-Point Forced Voltage, Very High Reliability 4-Point PD Detection, 60W Total PoE power allocated to any combination of ports, 2-Point Forced Current, Advanced Power Management: Fast Shutdown of Preselected Ports, Current/Voltage Monitoring |
| GPON | pBit based GEM port and upstream Priority queue selection, Serial number discovery, Registration ID provisioning, DBA support via mode-0 DBRu (piggy-back) reporting, Downstream Advanced Encryption Standard (AES) support, Multiple GEM ports with flexible mapping between TCONTs and Priority queues, Forward Error Correction (FEC), Upstream Traffic Management using priority-based or rate-controlled scheduling, Dying Gasp, Support for up to 8 T-CONTS with multiple priority queues per T-CONT, IPTV traffic filtering (Multicast GEM port) |
| Layer 2 | Automatic MAC address learning, aging and filtering |
| OAM and Management | automatic rollback, Remote firmware upgrade, ACS - CWMP configuration, performance monitoring, diagnostics and software download |
| Security | Remote Mirror |
| Voice | Country specific coefficients and tones, CLASS service support: Caller ID, Call Waiting, Call Forwarding, Call Transfer etc., Official Metaswitch and BroadSoft Certifications, DHCP Client or static IP configuration, Metallic loop testing, T.38 and IN-BAND Fax, Voice Activity Detection, Echo Cancellation, Comfort Noise Generation, Proven interoperability with major soft switch and voice gateway vendors, DTMF dialing and encoding by RELAY or IN-BAND method, 5 REN per line, Loop start, Balanced and unbalanced ringing |
| Performance | - |
| Downstream Data Rate | GPON: 2.5 Gbps, Active Ethernet: 1 Gbps |
| MAC Address | Up to 1024 MAC address entries |
| Upstream Data Rate | GPON: 1.25 Gbps, Active Ethernet: 1 Gbps |
| VLAN | Up to 12 VLAN groups |
| Dimensions | - |
| Height | 25 mm (0.98 in) |
| Width | 222 mm (8.74 in) |
| Depth | 152 mm (5.98 in) |
| Ordering Information | - |
| Weight | 9 kg |
| Units per Delivery | 1/1" |
| Brand | ONE |
| Dimenions | 6 W x 1 D x 8.75 H in. |
| Additional Features | RJ-11 |
| Frequency Rating | 54 to 870 MHz |
