Brand: Corning
|
SKU:
KLA-1018766

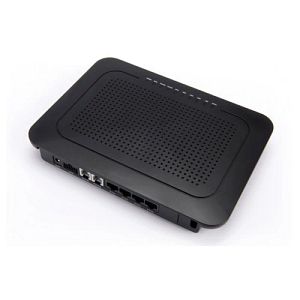

Corning 1LAN-SDAN-7298 | ONE, Software Defined Access Node, ONT, PoE, 8-Port, RJ-11 Connector, 8.75 H x 6 W x 1 D in.
Regular price
$592.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 1LAN-SDAN-7298 | ONE, Software Defined Access Node, ONT, Po...
Regular price
$592.00
Unit price
Description
Description
ONE Software Defined Access Node (SDAN) with Power over Ethernet incorporates a highly scalable integrated networking approach leveraging Optical Fibers inherent reach and passive nature to deliver advanced network access solutions.
The SDAN terminates GPON or Active Ethernet fiber via a single SC/APC type optical connector and complies with GPON Standard ITU-T Rec. G984.2 Amendments. In GPON mode, the SDAN receives data at 2.488 Gbps and sends upstream data at 1.244 Gbps over 1490 nm, 1310 nm wavelengths respectively. In Active Ethernet mode, the SDAN transmits and receives at 1 Gbps. The following physical layer features are supported
Features
- Class B+ and optionally Class C optics
- Class I laser Transceiver complies with FDA21 CFR 1040.10 and 1040.11
- Received Optical Power monitoring
Specifications
Specifications
Specifications
| ECCN | 5A991 |
|---|---|
| Country of Origin | CN - China |
| Brand | ONE |
| Dimenions | 6 W x 1 D x 8.75 H in. |
| Additional Features | RJ-11 |
| Frequency Rating | 54 to 870 MHz |
