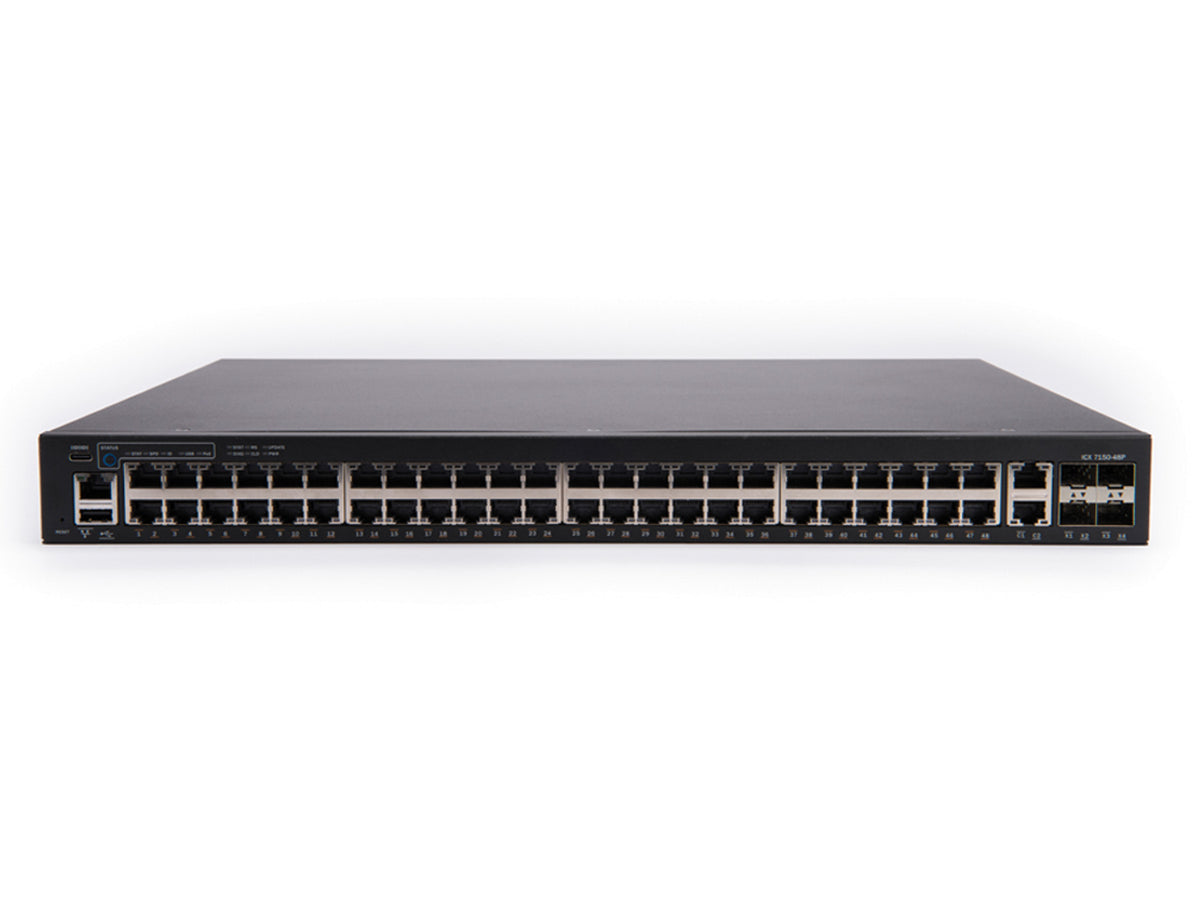

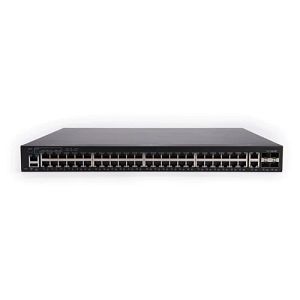

Corning 1LAN-SDDP-24-P2 | Software-Defined Data Plane (SDDP)
Regular price
$1,624.42
Unit price
Brand: Corning
|
SKU:
1018753
Regular price
$1,624.42
Unit price
Description
Description
Corning 1LAN-SDDP-24-P2 | Software-Defined Data Plane (SDDP) 24 Port Gigabit Expandable PoE Switch Plus 4 SFP Uplink Ports (370W PoE Budget)
Corning - 1LAN-SDDP-24-P2 - Features
- Provides high-performance, availability, and network-scaling demands in today’s enterprise
- Deployed as a Top-of-Rack switch forming a non-blocking data fabric
- Full line forwarding rate of 1.28 Tbps
- Port grouping into one 40G port
Specifications
Specifications
Corning - 1LAN-SDDP-24-P2 - Product Categories
- Shop by Manufacturer/Corning
- Networking
- In-building Wireless
- In-building Wireless
- Products
- SD-LAN Solutions
Corning - 1LAN-SDDP-24-P2 - Specifications
| Standards | - |
|---|---|
| Standards | IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), IEEE 802.1D Spanning Tree Protocol (STP), IEC-60825 Class I Laser Safety Standard, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), IPv4/IPv6 Dual Protocol Stack, IEEE 802.1x Security, IEEE 802.3at (30W) on each port, G.8032, IEEE 802.3ad Link Aggregation Control Protocol (LACP), IEEE 802.3af (15.4 W) on each port, IEEE 802.3az |
| Environmental Conditions | - |
| Temperature Range, Operation | 0 °C to 0 °C (32 °F to 32 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Altitude | 3000 m (9840 ft) |
| Relative Humidity, Operation | 10% to 95% (non-condensing) |
| Relative Humidity, Storage | 10% to 95% (non-condensing) |
| Hardware | - |
| Ports | 370 W Power budget without extender, 4 x 1G SFP Uplink Ports, 24 x RJ-45 10/100/1000 Ports (POE/POE+), 1 x RJ-45 serial console |
| Physical/Mechanical | - |
| Mounting/Installation Options | Rack Mount |
| SD-LAN Networking | - |
| GPON | Module Temperature |
| Layer 2 | BDPU Filter/Guard, Jumbo Frame packet, Link Aggregation: Static Trunk, SNMP (Simple Network Management Protocol), Green-Saving: No Link Power-Saving, Port Mirroring (One to One) TX/RX (both), Q-in-Q, SNMP-SNMP V1, V2, V3, Auto Voice VLAN, IGMP Immediate leave, IGMP v1/v2/v3 snooping, MLD Snooping, SNMP, Supports 4K VLANs, Port-Based/MAC-Based/Protocol-Based VLANs, Loopback Detection, mDNS, Cable Diagnostic, Green-Saving: Cable Length, Memory Flash Log, IGMP Filtering/Throttling, Root Guard, SNMP over IPv6, IGMP Queries, IGMP Snooping, LLDP/LLDP-MED, SNMP-SNMP Standard Private Mib, Guest VLAN, BDPU Forward, IP Clustering |
| Layer 3 | IPv4/IPv6 Dual Protocol Stack, IPv6 Ping/Trace, HTTP over IPv6, IPv6, IPv6 Management, IPv6 Syslog, IPv6 TFTP, IPv6 Telnet, Static Routing |
| OAM and Management | DHCP Snooping Option82, Dynamic Provision (via Option 66, 67), NTP (Network Time Protocol), Web authentication storm control, Auto Firmware Upgrade, DHCP v4/v6 Client//DHCP Snooping, System password protection, Event/Error Log/Syslog, Configuration upload/download (HTTP/TFTP/FTP/SFTP), Dual Image/Configuration, DHCP Relay v4 (v6), Management Access: (Console/SNMP/Web /Telnet ), Firmware upload/download (HTTP/TFTP/FTP/SFTP) |
| Security | Sflow (52T/26T trace multiport), MAC Authentication, ACL:L2/L3/L4, AAA (RADIUS/TACACS+), Sflow (10T/P/PE/28T/28P/28PP Trace on port -Ingress only), Port max count per port, ACL:IPv4/IPv6, DNS Client without DNS proxy, Port Security, CPU Guard (CPU Protection), Dynamic VLAN Assignment, ACL:Ingress Only, Port Mirror (One to One, One to Many), Web authentication storm control, SSL v1/v2/v3, SSL IPv4/IPv6, DDOS Protection, Dynamic ARP Inspection, Broadcast/Multicast/Unknown Storm Control, ACL entry: 512, MAC Filter, ACL:TCP/UDP-Based, MAC-Based ACL, SSH v1.5/v2.0, Port Isolation, Remote Mirror, IP Source Guard |
| Power Management | Dynamic Power Allocation, Auto disable after exceeding power budget |
| Performance | - |
| Acoustic Noise | 79.7 dBa |
| DRAM | 256 MB |
| Flash Memory | 32 MBit/s |
| Forwarding Rate | 41.7 Mpps |
| Heat Dissipation | 1680 BTU/h |
| Jumbo Frames | 10K |
| MAC Address | 8K |
| MTBF (Mean Time Between Failure) | 370636 Hours |
| Packet Buffer Memory | 12 MB, 4.1 Megabyte per Second |
| Switching Capacity | 56 |
| Power | - |
| Input Voltage | 100-270 VAC, 50-60 Hz |
| Power Supply | 490 W (950 W with optional extender) |
| Total PoE Power Budget | Up to 740W using extension370 W |
| Dimensions | - |
| Height | 44 mm (1.73 in) |
| Width | 440 mm (17.32 in) |
| Depth | 218 mm (8.58 in) |
| Ordering Information | - |
| Weight | 31 kg |
| Units per Delivery | 1/1" |
