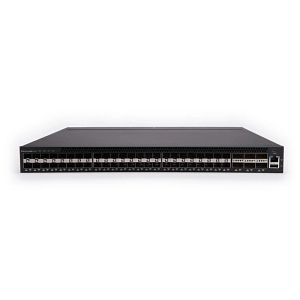

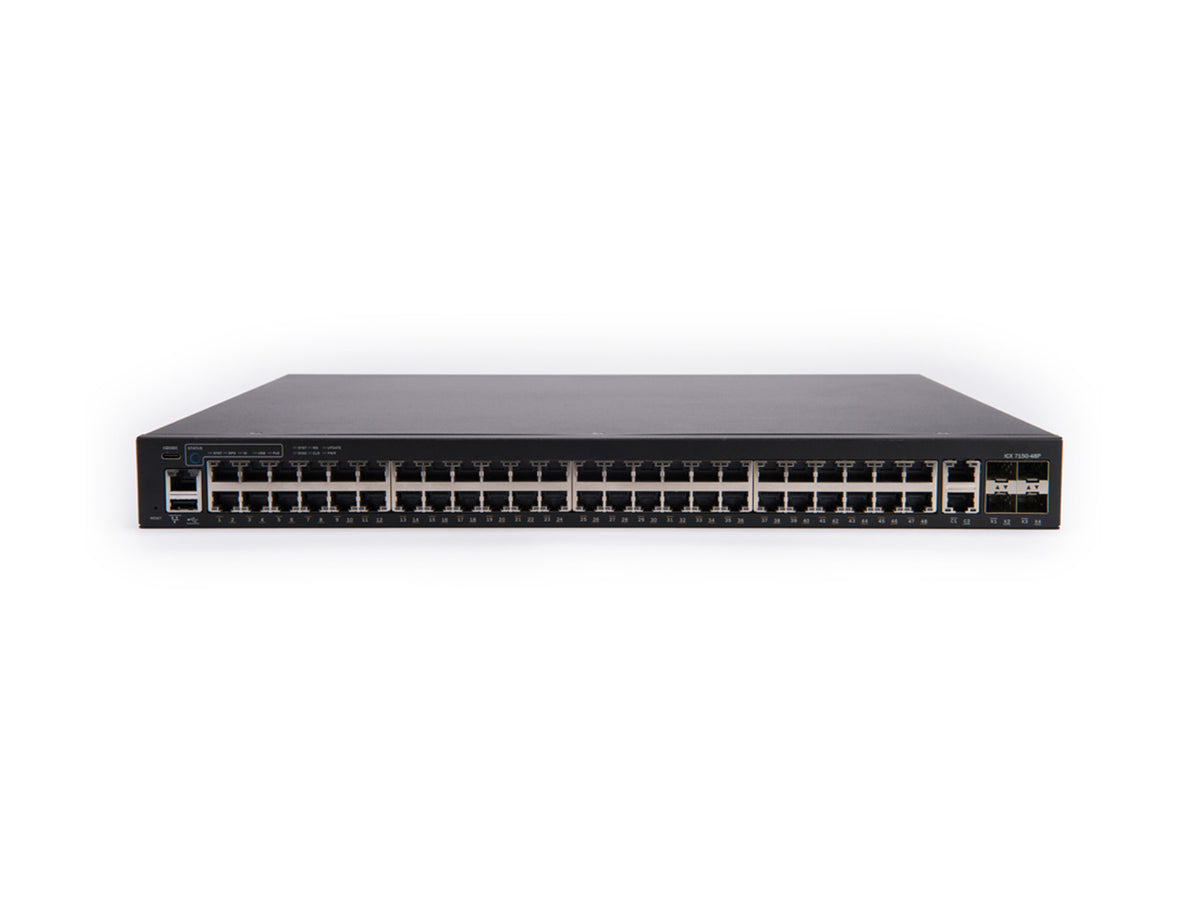

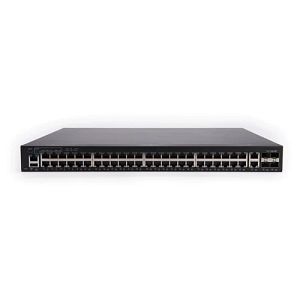

Corning 1LAN-SDDP-48P | Software-Defined Data Plane (SDDP)
Regular price
$8,300.58
Unit price
Brand: Corning
|
SKU:
1018772
Regular price
$8,300.58
Unit price
Description
Description
Corning 1LAN-SDDP-48P | Software-Defined Data Plane (SDDP) 48 Port Dual SC PSU, front to back airflow
Integra manufactures the highest quality GSFP transceivers in the industry, designed to be 100% interoperable with all OEM platforms.
Corning - 1LAN-SDDP-48P - Features
- Provides high-performance, availability, and network-scaling demands in today’s enterprise
- Deployed as a Top-of-Rack switch forming a non-blocking data fabric
- Full line forwarding rate of 1.28 Tbps
- Port grouping into one 40G port
Specifications
Specifications
Corning - 1LAN-SDDP-48P - Product Categories
- Shop by Manufacturer/Corning
- Networking
- Networking
- Switches
- Products
- SD-LAN Solutions
Corning - 1LAN-SDDP-48P - Specifications
| Standards | - |
|---|---|
| Standards | FCC - Emission, RoHS6, CCC - Emission, CB - Emissions |
| Environmental Conditions | - |
| Temperature Range, Operation | 0 °C to 0 °C (32 °F to 32 °F ) |
| Relative Humidity, Operation | 5% to 95% (non-condensing) |
| Hardware | - |
| CPU | Rangeley C2558 2.4G 4-Core |
| Ports | 1x 10/100/1000BaseT Out-of-Band-Management Port, 1 x Mini USB serial console port with mini-USB to RJ-45 converter cable, 48 x 10G SFP+, 6 x 40G QSFP+, 1 x USB 2.0 host |
| Switch ASICS | Broadcom BCM56854 (Trident 2) |
| System Memory | DDR3 8GB with ECC SODIMM |
| Transceivers Supported | CR, SR, SR4, CR4 |
| Physical/Mechanical | - |
| Airflow and FAN | Front-to-Back or Back-to-Front, 3+1 redundant FAN FRU |
| LED Indicators | Status, Power, Link status, Fan, PSU |
| Mounting/Installation Options | Rack Mount |
| Optical Characteristics | - |
| Transceiver Type | CR4, CR, SR, SR4 |
| Performance | - |
| Flash Memory | 16 MBit/s |
| Latency | < 0.7 microsecond |
| Packet Buffer Memory | 12 MB |
| Switching Capacity | 1440 |
| Power | - |
| Input Voltage | AC: 100V-240V~, 8-4A, 50Hz-60Hz, DC: 180V~310V |
| Power Supply | 1+1 Redundant 550W AC/DC PSU FRU |
| Dimensions | - |
| Height | 44 mm (1.73 in) |
| Width | 440 mm (17.32 in) |
| Depth | 407 mm (16.02 in) |
| Ordering Information | - |
| Weight | 9 kg |
| Units per Delivery | 1/1" |
| Standard | IEEE Std. 802.3, RoHS Compliant, UL Listed |
| Connection Type | PoE |
| Product Includes | Gigabit Switch |
| Temp. Rating | 5 to 40 Deg. C |
