Corning 1LAN-SDOLT-0588 | Software-Defined Optical Line Terminal (S...
Regular price
$12,873.11
Unit price
Brand: Corning
|
SKU:
1018773
Regular price
$12,873.11
Unit price
Description
Description

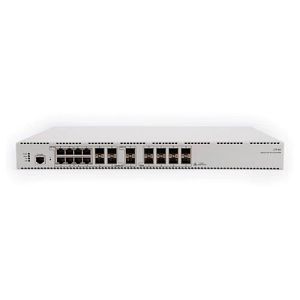

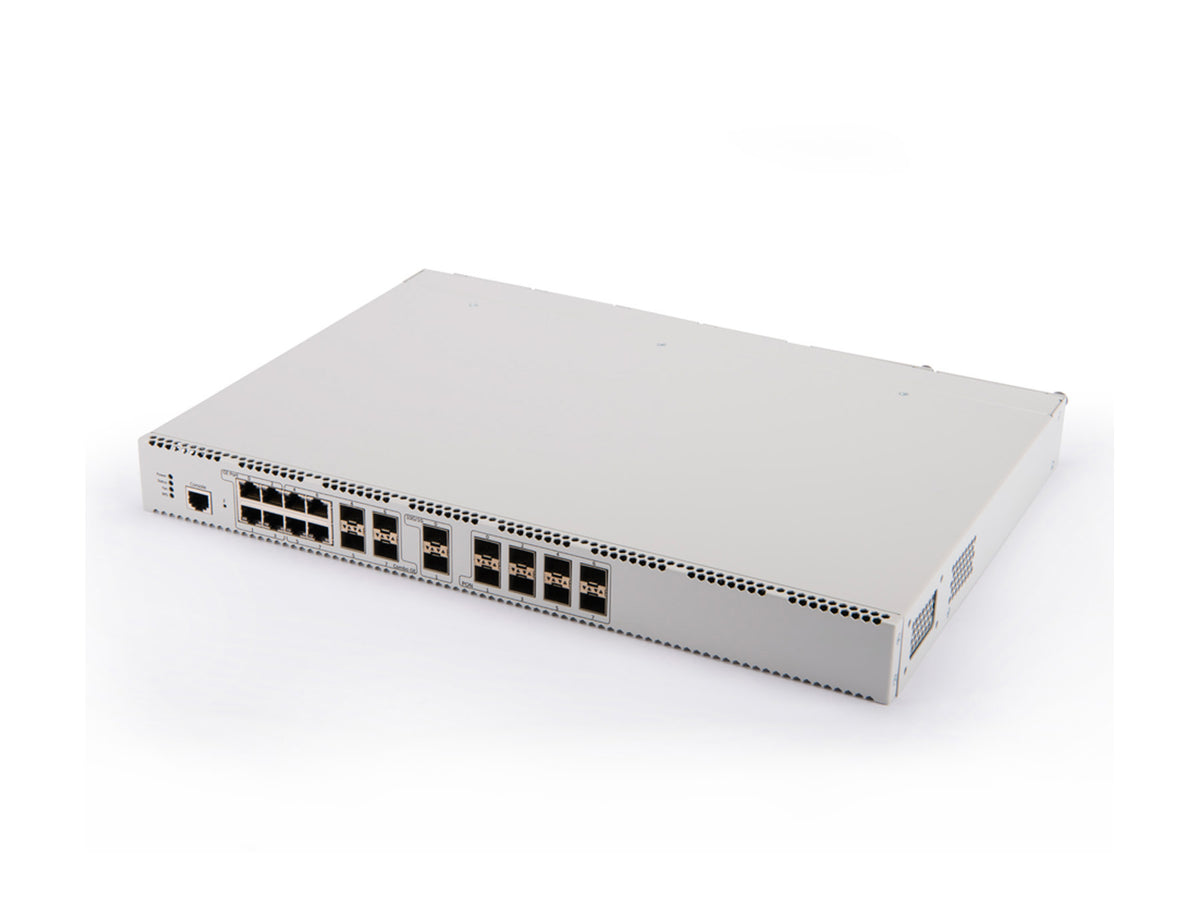

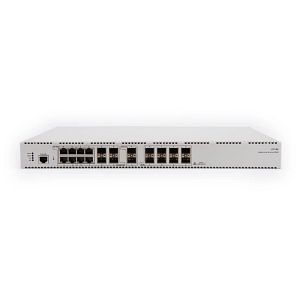

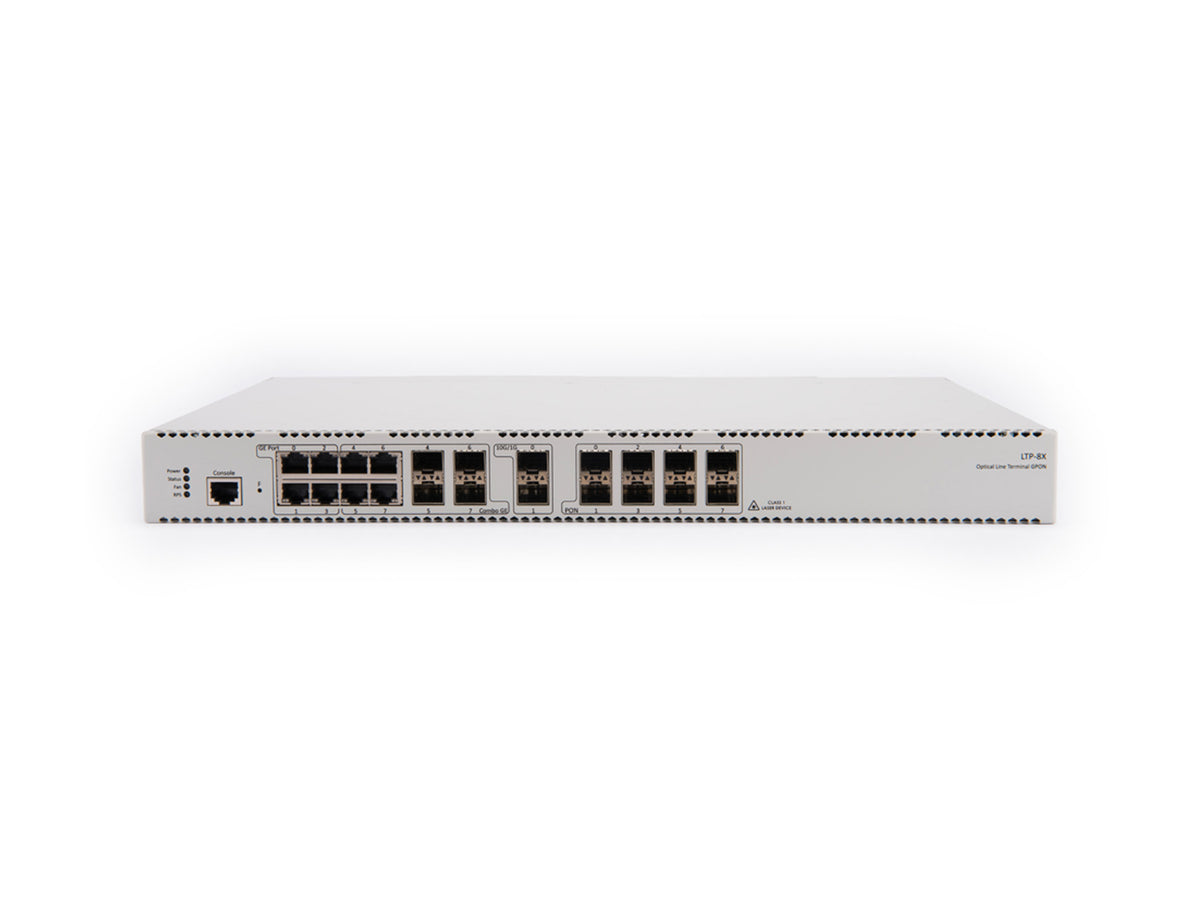

Corning 1LAN-SDOLT-0588 | Software-Defined Optical Line Terminal (SDOLT) 8 Ports, SFP-xPON
Integra manufactures the highest quality GSFP transceivers in the industry, designed to be 100% interoperable with all OEM platforms.
Corning - 1LAN-SDOLT-0588 - Features
- Broadband access over all
- Allows the optical network engineer to build scalable, fault tolerant point-to-multipoint networks to ensure the highest reliability
- Connect up to 64 SDANs to each interface
- Access to the network is provided through up to two SFP+ high speed uplink interfaces
Specifications
Specifications
Corning - 1LAN-SDOLT-0588 - Product Categories
- Shop by Manufacturer/Corning
- Networking
- In-building Wireless
- In-building Wireless
- Products
- SD-LAN Solutions
Corning - 1LAN-SDOLT-0588 - Specifications
| Standards | - |
|---|---|
| Standards | IEEE 802.1ad Provider Bridges (Q-in-Q), IEEE 802.3u 100BASE-T Fast Ethernet, IEEE 802.1d MAC bridges, IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), IEC-60825 Class I Laser Safety Standard, ITU-T G.988 GPON, IEEE 802.1v VLAN Classification by Protocol andPort, G.652 Single-mode (OS) fiber, IEEE 802.1q Double Tagging (Q-in-Q), IEEE 802.3z Fiber Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol (LACP), SFF-8472 (Transceiver-enhanced digital diagnostic monitoring interface), IEEE 802.1ad Double Tagging (Q-in-Q), IEEE 802.3x Full Duplex and flow control, ITU-T G.984.2 Class B+, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.1p Protocol for Traffic Prioritization, FSAN Class B+, IEEE 802.3ac VLAN tagging, IEEE 802.3i 10BASE-T Ethernet, ITU-T G.984 GPON, ANSI/IEEE 802.3 NWay auto-negotiation |
| Environmental Conditions | - |
| Temperature Range, Operation | 5 °C to 40 °C (41 °F to 104 °F ) |
| Relative Humidity, Operation | Up to 80% (non-condensing) |
| Hardware | - |
| CPU | Ethernet switcher: Marvell Packet Processor |
| Physical/Mechanical | - |
| Mounting/Installation Options | Rack Mount |
| Optical Characteristics | - |
| Max-Link Distance | 20 km |
| Receiver | 1310nm APD/TIA Detector/Amplifier |
| Receiver Optical Overload | -8 dBm |
| Receiver Sensitivity | -28 dBm |
| Spectral Line Width | 20 dBm (1.0 mm) |
| Optical Wavelength | 1490 +/- 10 nm Rx, 1310 +/- 20 nm Tx |
| Upstream Data Rate | GPON: 1.25 Gbps |
| SD-LAN Networking | - |
| GPON | Supply Voltage, Up to 1:64 splitting radio, Laser Bias Current, Digital RSSI, Support DDM (show parameters in CLI), Tx Optical Power Output, Module Temperature, Received Signal Strength Indication (RSSI) |
| Layer 2 | IEEE 802.1D Spanning Tree Protocol (STP), MAC-address learning/aging, MAC address table limit, Handling multi-address traffic, MSTP, IGMP Proxy, Handling unknown MAC-address, RSTP, Support to 1024 multicast groups, SNMP (Simple Network Management Protocol), IGMP fast leave |
| OAM and Management | SDOP (Software Defined Orchestration Platform), CLI (Command Line Interface) |
| Performance | - |
| Downstream Data Rate | GPON: 2.5 Gbps |
| MAC Address | 16K |
| Max-Link Distance | 20 km |
| Switching Capacity | 128 |
| Upstream Data Rate | GPON: 1.25 Gbps |
| VLAN | 4K |
| Power | - |
| Max Power | 20 W |
| Power | 48 V DC |
| Dimensions | - |
| Height | 44 mm (1.73 in) |
| Width | 430 mm (16.93 in) |
| Depth | 218 mm (8.58 in) |
| Ordering Information | - |
| Units per Delivery | 1/1" |
| Country of Origin | CN - China |
| Standard | IEEE Std. 802.3, RoHS Compliant, UL Listed |
| Connection Type | no SFPs |
| Temp. Rating | 5 to 40 Deg. C |
