Corning 1LAN-SRV-50195L | Software-Defined Virtual Application Host...
Regular price
$6,705.10
Unit price
Brand: Corning
|
SKU:
1018752
Regular price
$6,705.10
Unit price
Description
Description

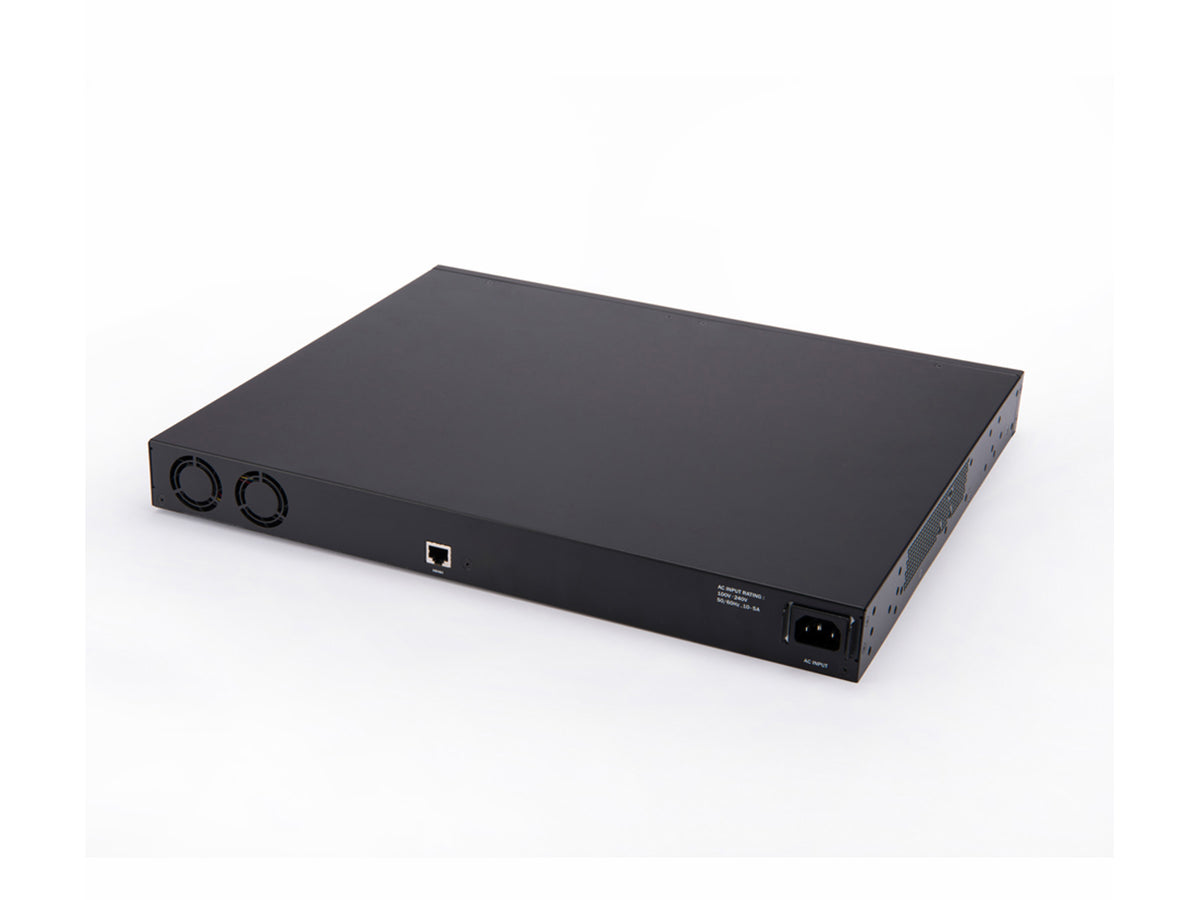

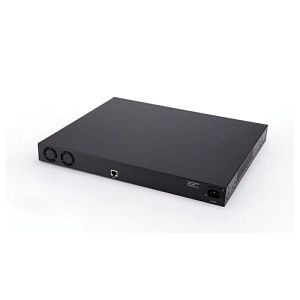

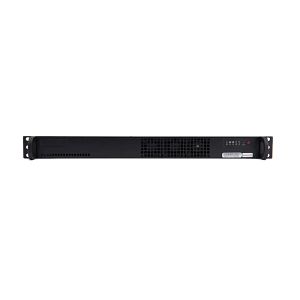

Corning 1LAN-SRV-50195L | Software-Defined Virtual Application Host (SDVAH) 1RU Rack-mountable server for VNETC, VFC and Virtual Apps
StandardsRoHS Complaint
Corning - 1LAN-SRV-50195L - Features
- Hosts SDN LAN orchestration system for centralized Network Control
- Configure as a virtual router with up to sixteen virtual applications
- Intel Xeon processor - proven performance
- System memory of 32GB DDR4 with error detection
- Single server using a multicore Intel Xeon processor
- SSD storage and memory capacity to host SDN LAN orchestration system, virtual router, and up to sixteen virtual applications
- 2 GbE ports with Intel i210-AT 1 shared IPMI port
- 1 VGA, 1 COM, 2 USB 3.0, 2 USB 2.0
- 200W Multioutput power supply
Specifications
Specifications
Corning - 1LAN-SRV-50195L - Product Categories
- Shop by Manufacturer/Corning
- Networking
- In-building Wireless
- In-building Wireless
- Products
- SD-LAN Solutions
Corning - 1LAN-SRV-50195L - Specifications
| Standards | - |
|---|---|
| Standards | RoHS Halogen Free, RoHS, 80 plus Gold Certified |
| Environmental Conditions | - |
| Temperature Range, Operation | 10 °C to 10 °C (50 °F to 50 °F ) |
| Relative Humidity, Operation | 8% to 90% (non-condensing) |
| Relative Humidity, Storage | 5% to 95% (non-condensing) |
| Hardware | - |
| CPU | Single Socket H4 (LGA 1151), Intel Xeon processor E3-1200 v6/v5 |
| Ports | 1 VGA port, 2 RJ-45 Gigabit Ethernet LAN ports, 2 USB 2.0 ports, 2 USB 3.0 ports, 1 RJ-45 Shared IPMI LAN port, 1 COM port (1 rear), 2 SATA3 (6 Gbps) ports LAN |
| System Bios Features | DMI 2.3, USB Keyboard support, SMBIOS 2.3, ACPI 1.0 / 2.0 |
| System Bios Type | PCI 2.3, 8MB SPI Flash EEPROM with AMI BIOS |
| Physical/Mechanical | - |
| Airflow and FAN | 3 x 40 x 28 mm 4-pin PWM Cooling Fans, 1x FAN-0147L4 option for 80W CPU |
| Buttons | System Reset, Power On/Off |
| Color | Black |
| LED Indicators | Power, UID/Remote UID LED, Hard drive activity, Information LED (temp., status), System Overheat, Suspend static indicator LED |
| Mounting/Installation Options | Rack Mount |
| Rack Units (Rus) | 1 RU |
| SD-LAN Networking | - |
| PC Health Monitoring | FAN: Low noise fan speed control, FAN: Status monitor for speed control, FAN: Temperature, FAN: Pulse Width Modulated (PWM) fan connectors, CPU and chassis environment: PECI, FAN: 3 fans with tachometer status monitoring, Voltage - Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages, CPU and chassis environment: CPU thermal trip support, Chassis intrusion detection, Chipkill support, Chassis intrusion header, CPU and chassis environment: I2C temperature sensing logic, CPU and chassis environment: Thermal Monitor 2 (TM2) support, FAN: Status monitor for on/off control |
| TC (Transmission Convergence) Layer | ACL entry: 512 |
| Power | - |
| Power Supply | +12V: 16 Amp (max.)-12V: 0.5 Amp (max.)AC Voltage: 100 - 240V, 50-60Hz, 2.6 Amp Max+3.3V: 8.0 Amp (max.)200W Low Noise AC-DC power supply with PFC+5V: 8.0 Amp (max.)Plus 5 Volt Option Standby 2 Amp Max. |
| Dimensions | - |
| Height | 43 mm (1.69 in) |
| Width | 437 mm (17.2 in) |
| Depth | 287 mm (11.3 in) |
| Ordering Information | - |
| Weight | 383 kg |
| Units per Delivery | 1/1" |
| Width | 17.2 in. |
| Height | 1.7 in. |
| Depth | 11.3 in. |
| Application | VNETC, VFC, and Virtual Apps |
| Mounting Type | Rack Mount |
| Color | Black |
| Rack Units | 1 |
