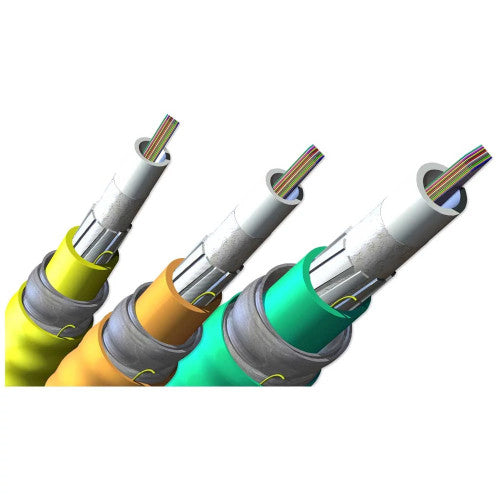

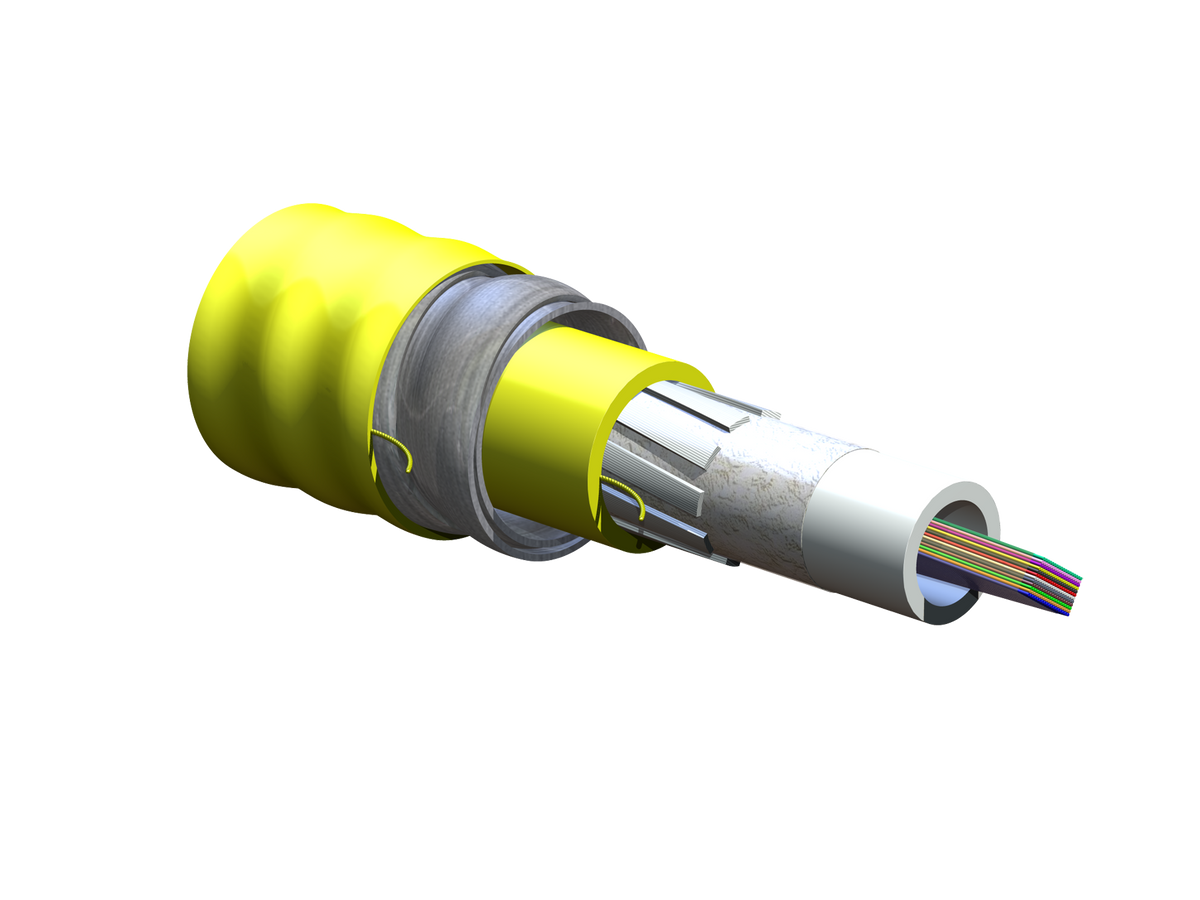

Corning 216EC8-14101-A3 | Ribbon Interlocking Armored Cable, Plenum
Regular price
$18.45
Unit price
Brand: Corning
|
SKU:
370-COROS2-RIBA-216
Regular price
$18.45
Unit price
Description
Description
Corning 216EC8-14101-A3 | Ribbon Interlocking Armored Cable, Plenum 216 F, Single-mode (OS2)
Corning - 216EC8-14101-A3 - Features
- Ribbon ID numbers and fiber colors
- Easily identifiable
- Precise fiber and ribbon geometries
- Excellent mass splicing yields
- Flame-retardant jacket
- Rugged and durable
- Flexible interlocking armor
- Up to seven times the crush protection compared to non-armored cables
- Common installations
- Indoor plenum, riser and general building applications
- Ribbon ID numbers and fiber colors
- Easily identifiable Precise fiber and ribbon geometries
- Excellent mass splicing yields Flame-retardant jacket
- Rugged and durable Flexible interlocking armor
- Up to seven times the crush protection compared to non-armed cables Common installations
- Indoor plenum, riser and general building applications
Specifications
Specifications
Corning - 216EC8-14101-A3 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Indoor Fiber Optic Cable
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 216EC8-14101-A3 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 216EC8-14101-A3 |
| EAN Code | 4056418172354 |
| Environment | Indoor |
| Cable Type | Ribbon |
| Product Type | Interlocking Armor |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Plenum (OFCP) |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 216 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP, CSA FT-6, ICEA S-83-596 |
| Design and Test Criteria | ANSI/ICEA S-83-596, CSA FT-6 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 0 °C (32 °F to 32 °F ) |
| Temperature Range, Operation | 0 °C to 0 °C (32 °F to 32 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 216 |
| Buffer Tube Diameter | 11 mm (0.43 in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Inner Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape | Water-swellable |
| Tensile Strength Elements and/or Armoring - Layer 3 | Interlocking Armor |
| Ribbons per Tube | 18 |
| Fibers per Ribbon | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 400 N (89.92 lbf) |
| Min. Bend Radius Installation | 3375 mm (132.87 in) |
| Min. Bend Radius Operation | 225 mm (8.86 in) |
| Nominal Outer Diameter | 22.5 mm (0.89 in ) |
| Nominal Inner Cable Diameter | 155 mm (6.1 in) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 400 kg/km (268.79 lb/1000 ft) |
