Brand: Corning
|
SKU:
1055326

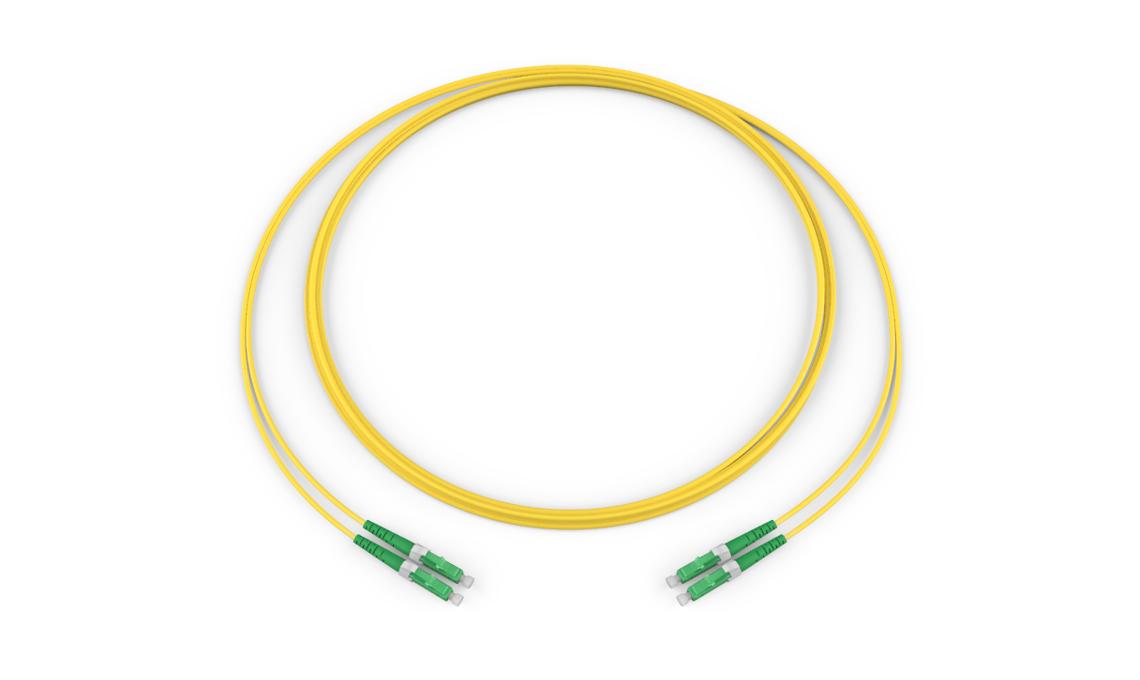

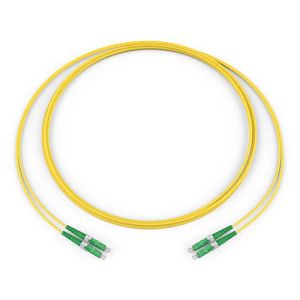

Corning 222202R5120003M | LC APC to LC APC Patch cord, 2 F, Zipcord Tight-Buffered Cable, Riser, 2.0 mm legs
Regular price
$42.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 222202R5120003M | LC APC to LC APC Patch cord, 2 F, Zipcord...
Regular price
$42.24
Unit price
Description
Description
Corning 222202R5120003M | LC APC to LC APC Patch cord, 2 F, Zipcord Tight-Buffered Cable, Riser, 2.0 mm legs Standard LCAPC Simplex SM / Standard LCAPC Simplex SM, SMF, 2F, Zipcord Riser, Standard Yellow Jacket 3 Meters
LC/APC to LC/APC, Yellow, Singlemode - OS2, 3 m, 2
Corning - 222202R5120003M - Features
- State-of-the-art manufacturing processes
- Advanced technology results in unsurpassed product consistency and quality
- Global operations
- Mitigates trade barriers or supply disruptions
- Flexible design options
- Choice of materials for strength elements and fiber properties for various application requirements
- Superior performance testing
- Each termination is tested to ensure the highest network performance
Specifications
Specifications
Corning - 222202R5120003M - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- DataComm
- Patch Cables
- Fiber Patch Cables
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
Corning - 222202R5120003M - Specifications
| General Specifications | - |
|---|---|
| Product Number | 222202R5120003M |
| EAN Code | 4056418759920 |
| Flame Rating | Riser (OFCR) |
| Fiber Category | Single-mode (OS2) |
| Cable Assembly Type | Two Fiber |
| Cable Type | Tight-Buffered |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Environmental Conditions | - |
| Temperature Range, Installation | -5 °C to 50 °C (23 °F to 122 °F ) |
| Temperature Range, Operation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Temperature Range, Storage | -10 °C to 60 °C (14 °F to 140 °F ) |
| Design | - |
| Fiber Count | 2 |
| Outer Jacket Material | LSZH/FRNC |
| Mechanical Specifications | - |
| Minimum Bend Radius | 30 mm (1.18 in) |
| Tensile Strength | 300 N (67.44 lbf) |
| Crush Resistance | 1000 N/10 cm |
| Cable Length | 3 m (9.84 ft) |
| Specifications - Connector A | - |
| Reflectance, Typical | ? -58 dB |
| Polish | APC |
| Insertion Loss, Typical | 0.1 dB |
| Insertion Loss, Max. | 0.3 dB |
| Tensile Strength Jacketed Cable | 44 N (9.89 lbf) |
| Durability | ? 0.2 dB change, 500 rematings, FOTP-21 |
| Keyed (security) | No |
| Boot Color | Green |
| Connector Type | LC |
| Ferrule Material | Ceramic |
| Housing Color | Green |
| Housing Material | Composite |
| Boot Type | Individual |
| Specifications - Connector B | - |
| Reflectance, Typical | ? -58 dB |
| Polish | APC |
| Insertion Loss, Typical | 0.1 dB |
| Insertion Loss, Max. | 0.3 dB |
| Tensile Strength Jacketed Cable | 44 N (9.89 lbf) |
| Durability | ? 0.2 dB change, 500 rematings, FOTP-21 |
| Keyed (security) | No |
| Boot Color | Green |
| Connector Type | LC |
| Ferrule Material | Ceramic |
| Housing Color | Green |
| Boot Type | Individual |
| Dimensions | - |
| Outer Diameter | 2 mm (0.08 in) |
| Shipping Dimensions | - |
| Height | 180 mm (7.09 in) |
| Width | 250 mm (9.84 in) |
| Depth | 380 mm (14.96 in) |
| Ordering Information | - |
| Weight | 0.0183 kg |
| Packing Type | Cardboard box |
| Units per Delivery | 1/1" |
