Brand: Corning
|
SKU:
372-COROS2-LTDFP-288
Corning 288EU4-T4700D20 | ALTOS Loose Tube, Gel-Free, All-Dielectric Cable with FastAccess Technology
Regular price
$5.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 288EU4-T4700D20 | ALTOS Loose Tube, Gel-Free, All-Dielectri...
Regular price
$5.34
Unit price
Brand: Corning
|
SKU:
372-COROS2-LTDFP-288
Regular price
$5.34
Unit price
Shipping calculated at checkout.
Description
Description

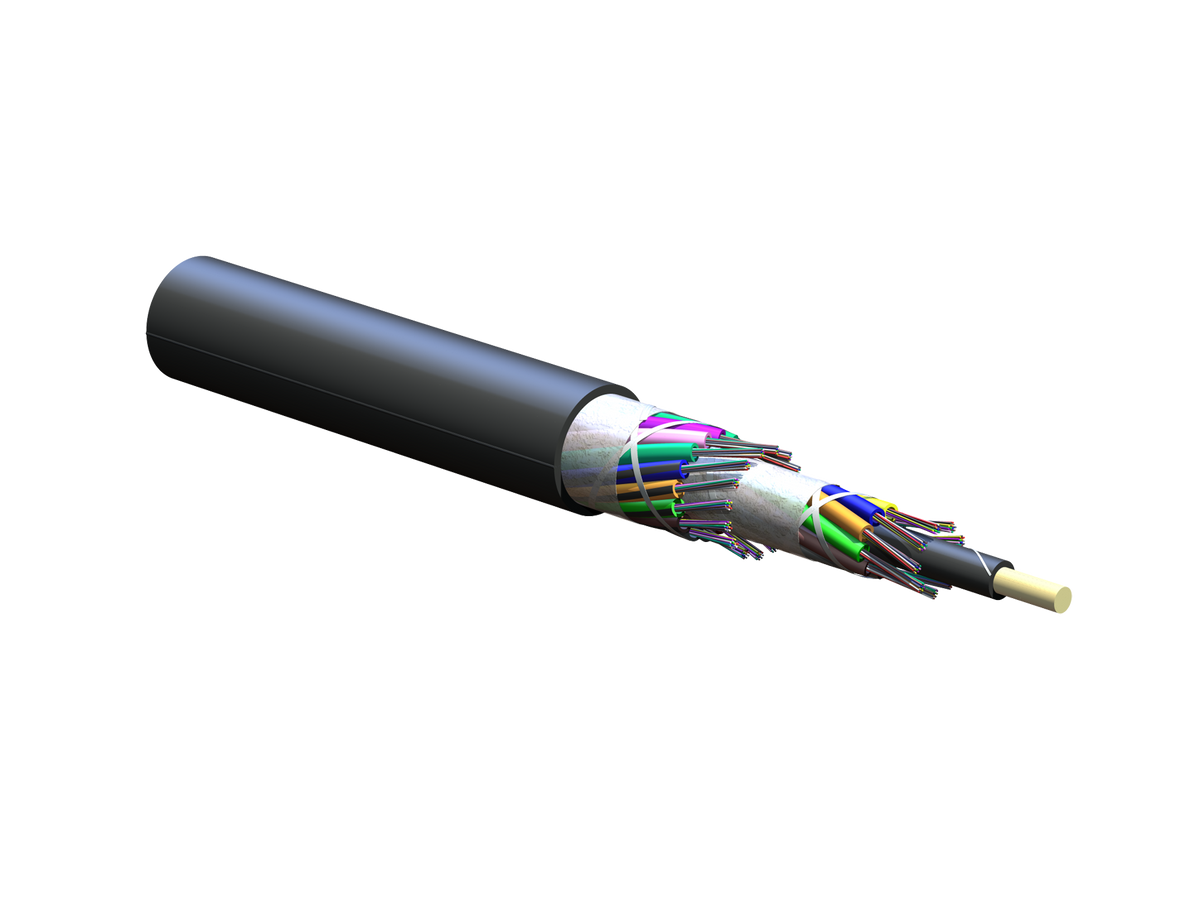

Corning 288EU4-T4700D20 | ALTOS Loose Tube, Gel-Free, All-Dielectric Cable with FastAccess Technology 288 F, Single-mode (OS2)
Corning - 288EU4-T4700D20 - Features
- Contains FastAccess technology
- Innovative cable jacket feature reduces cable end access time, reduces overall risk of inadvertent fiber damage, as well as, risk to installers from sharp cable access tools
- Polyethylene jacket
- Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)
- Fully waterblocked loose tube all-dielectric gel-free design
- Simple access and no clean up
- Industry-standard performance
- Meets the requirements of Telcordia GR-20, Issue 3 and ICEA S-87-640
- Available in 62.5 µm, 50 µm, single-mode and hybrid versions
- Ready for any application including Gigabit Ethernet and 10 Gigabit Ethernet
Specifications
Specifications
Corning - 288EU4-T4700D20 - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Fiber Optic Cable
- Fiber Optic Outdoor Cable
- Fiber Optic Cables
- Outdoor
- Outdoor Duct Cables
Corning - 288EU4-T4700D20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 288EU4-T4700D20 |
| EAN Code | 4056418152011 |
| Environment | Outdoor |
| Cable Type | Loose Tube |
| Product Type | Dielectric |
| Fiber Category | Single-mode (OS2) |
| Application | Aerial, Duct |
| Fiber Count | 288 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor lashed aerial and duct, indoor when installed according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-87-640 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to -30 °C (-22 °F to -22 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Notes | Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results. |

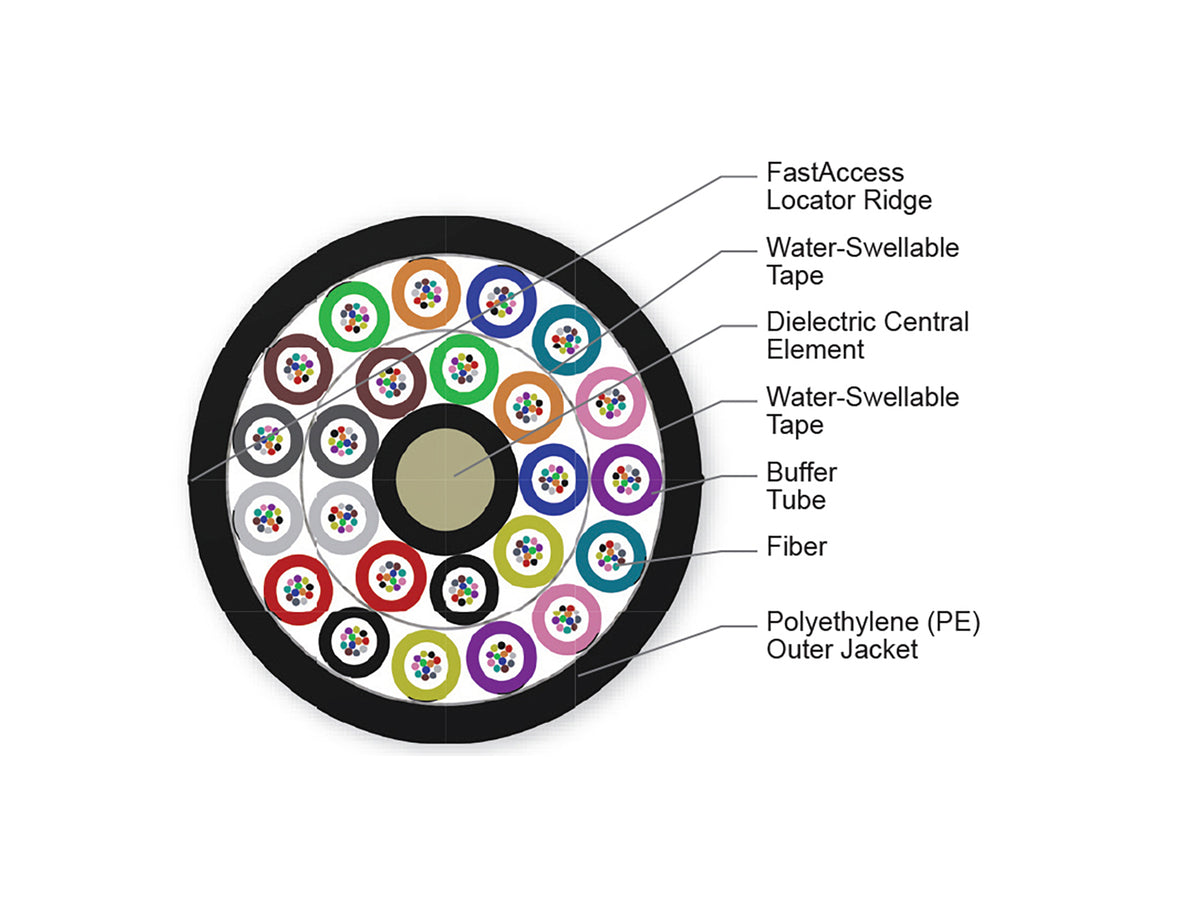

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 288 |
| Buffer Tube Color Coding, Layer 1 | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Buffer Tube Color Coding, Layer 2 | Violet, Rose, Aqua, Blue*, Orange*, Green*, Brown*, Slate*, White *, Red*, Black*, Yellow*, Violet*, Rose*, Aqua* |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Number of Active Tubes | 24 |
| Number of Tube Positions | 24 |
| Tape | Water-swellable |
| Tape, Layer 2 | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Min. Bend Radius Installation | 273 mm (10.75 in) |
| Min. Bend Radius Operation | 182 mm (7.17 in) |
| Nominal Outer Diameter | 18.2 mm (0.72 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 0 |
| Maximum Attenuation | 0.35 dB/km / 0.35 dB/km / 0.25 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 196 kg/km (131.71 lb/1000 ft) |
| Type | Outdoor Fiber Optic Cable |
| Application | Outdoor |
| Cable Type | Loose Tube |
| Transmission Mode | Singlemode |
| Fiber Type | OS2 |
| Jacket Material | Polyethylene |
| Jacket Color | Black |
| Fiber Count | 288 |
| Outside Diameter | 0.72 in. (18.2mm) |
| Water Blocking | Gel-free |
| Construction | Loose Tube, Gel-Free |
