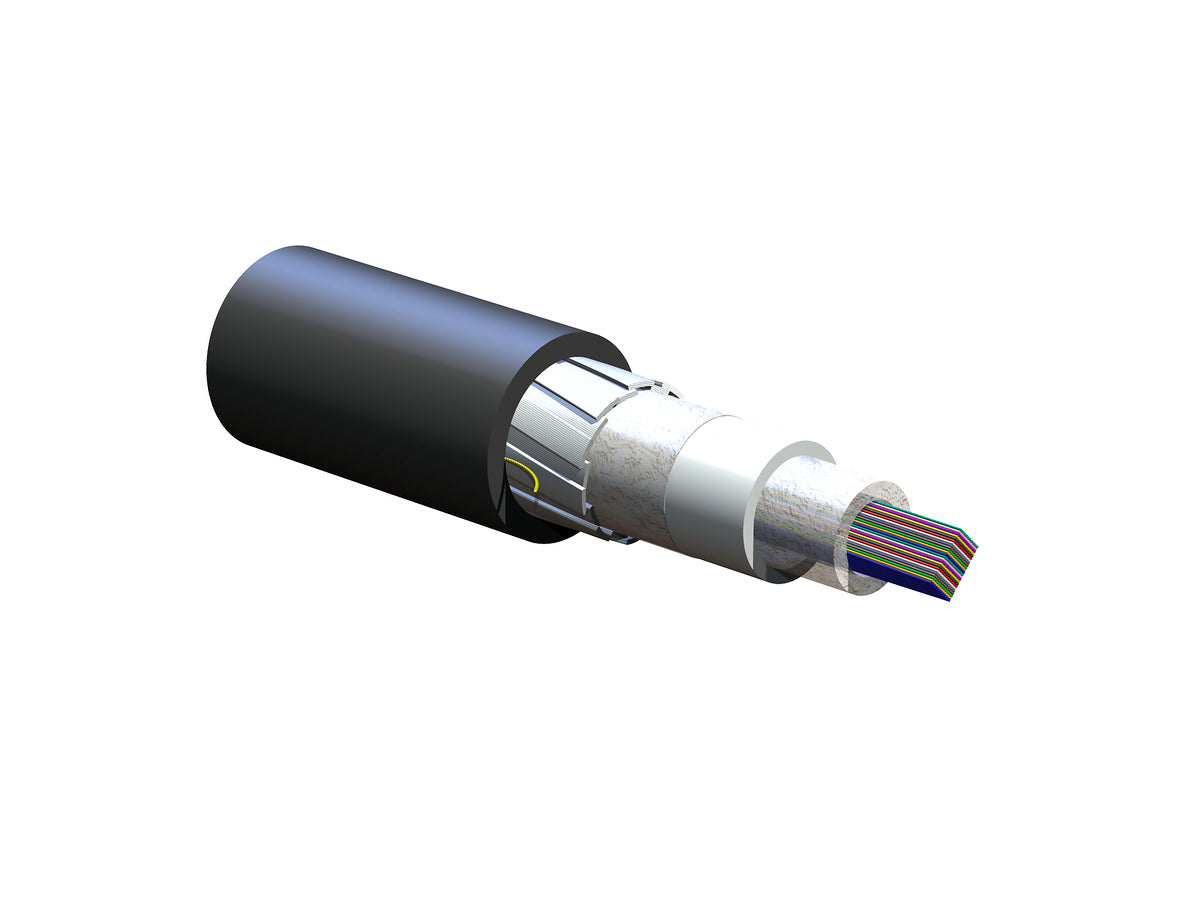

Corning 288EVZ-14101D20 | LSZH UltraRibbon Gel-Free Cables 288 F, Single-mode (OS2)
Regular price
$52.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 288EVZ-14101D20 | LSZH UltraRibbon Gel-Free Cables 288 F, ...
Regular price
$52.18
Unit price
Description
Description
Corning 288EVZ-14101D20 | LSZH UltraRibbon Gel-Free Cables 288 F, Single-mode (OS2)
Specifications
Specifications
Corning - 288EVZ-14101D20 - Product Categories
- Fiber Optic Cables
- Indoor/Outdoor
- Indoor/Outdoor Aerial Cables
Corning - 288EVZ-14101D20 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 288EVZ-14101D20 |
| Item Description | LSZH UltraRibbon Gel-Free Cables 288 F, Single-mode (OS2) |
| General Specifications | - |
| Product Number | 288EVZ-14101D20 |
| Environment | Indoor/Outdoor |
| Cable Type | Ribbon |
| Product Type | Interlocking Armor |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | LSZH (OFN-LS) |
| Application | Aerial, Duct, General Purpose Horizontal, Direct Buried |
| Fiber Count | 288 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFN-LS |
| Design and Test Criteria | ANSI/ICEA S-104-696, Telcordia GR-409, UL-1666, CSA FT-4 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10°C to 60°C (14°F to 140°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

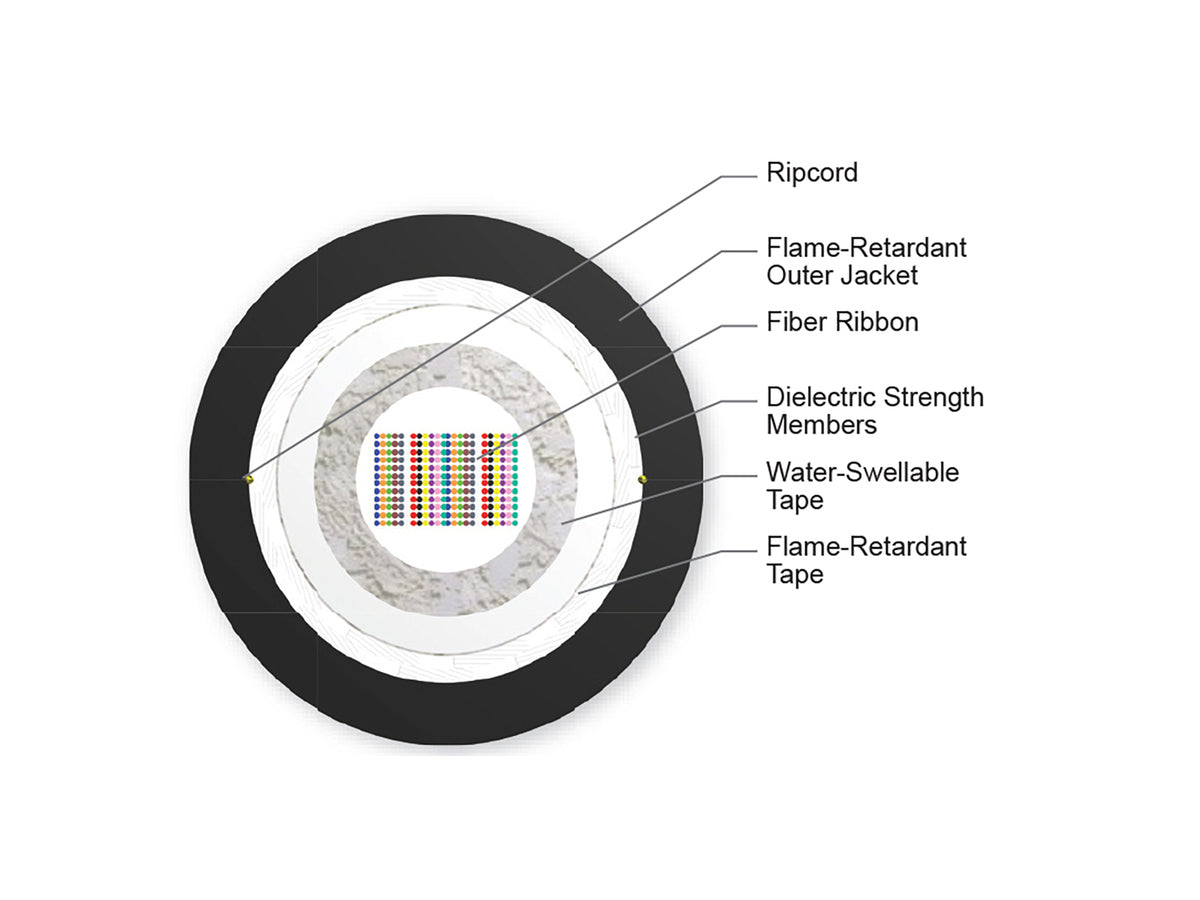

| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 288 |
| Buffer Tube Diameter | 14mm (0.55in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape | Water-swellable |
| Tape, Layer 1 | Flame-retardant tape |
| Tape, Layer 2 | Flame-retardant tape |
| Tape, Layer 3 | Water-swellable |
| Ribbons per Tube | 12 |
| Fibers per Ribbon | 24 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 810N (182.1lbf) |
| Max. Tensile Strength, Short-Term | 810N (182.1lbf) |
| Min. Bend Radius Installation | 3225mm (126.97in) |
| Min. Bend Radius Operation | 215mm (8.46in) |
| Nominal Outer Diameter | 21.5mm (0.85in) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 01 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Dimensions | - |
| Cable Weight | 359.49kg/km (241.57lb/1000 ft) |
