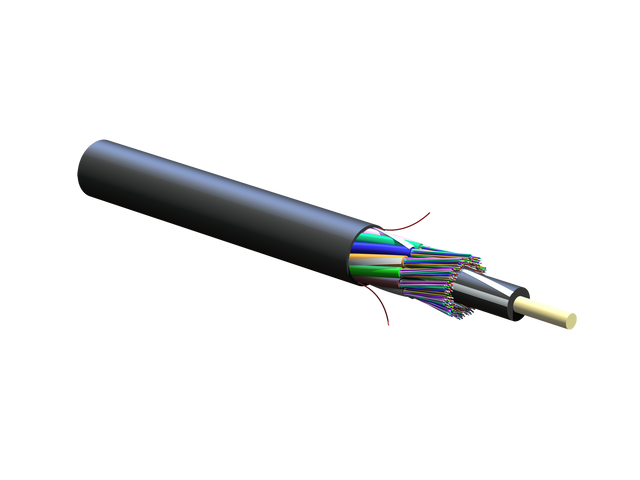

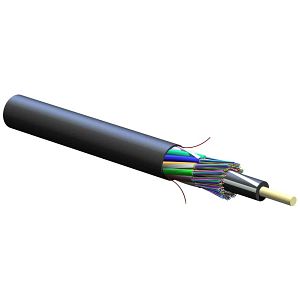

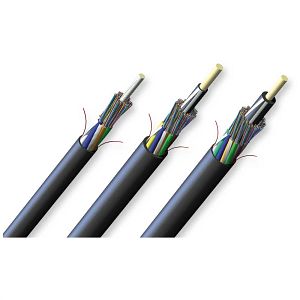

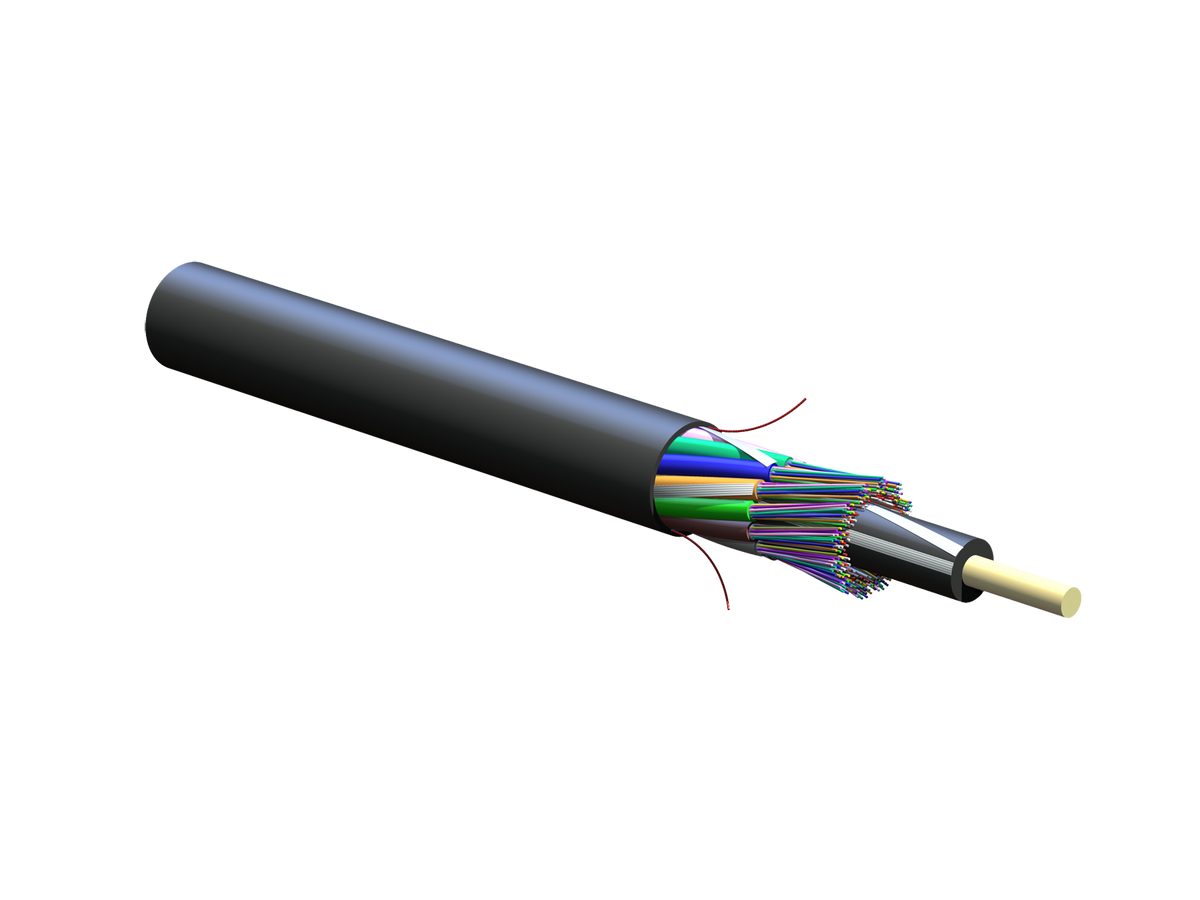

Corning 288ZH4-Y4140A20 | MiniXtend HD Cable
Regular price
$7.59
Unit price
Brand: Corning
|
SKU:
372-COROS2-LTDHD-288
Regular price
$7.59
Unit price
Description
Description
Corning 288ZH4-Y4140A20 | MiniXtend HD Cable 288 F, SMF-28 Ultra, Single-mode (G.652.D/G.657.A1)
Corning - 288ZH4-Y4140A20 - Features
- Reduced outer cable diameter
- High fiber density in microduct systems
- Compact and light
- CapEx-optimized installations and upgrades
- Optimized cable stiffness
- Long installation lengths
- Fully dielectric
- No grounding required
- Color-coded tubes and fibers
- Easy identification of tubes and
- SMF-28 Ultra 200 fiber
- ITU-T G.652.D and G.657.A1-compliant 200 micron single-mode fiber with a 9.2 micron MFD, low loss and enhanced bend performance
Specifications
Specifications
Corning - 288ZH4-Y4140A20 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Outdoor
- Outdoor Duct Cables
Corning - 288ZH4-Y4140A20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 288ZH4-Y4140A20 |
| EAN Code | 4056418010465 |
| Environment | Outdoor |
| Cable Type | Stranded Loose Tube |
| Product Type | Dielectric |
| Fiber Category | SMF-28 Ultra 200 Optical Fiber |
| Application | Miniduct |
| Fiber Count | 288 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Environmental Conditions | - |
| Temperature Range, Installation | -15 °C to -15 °C (5 °F to 5 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

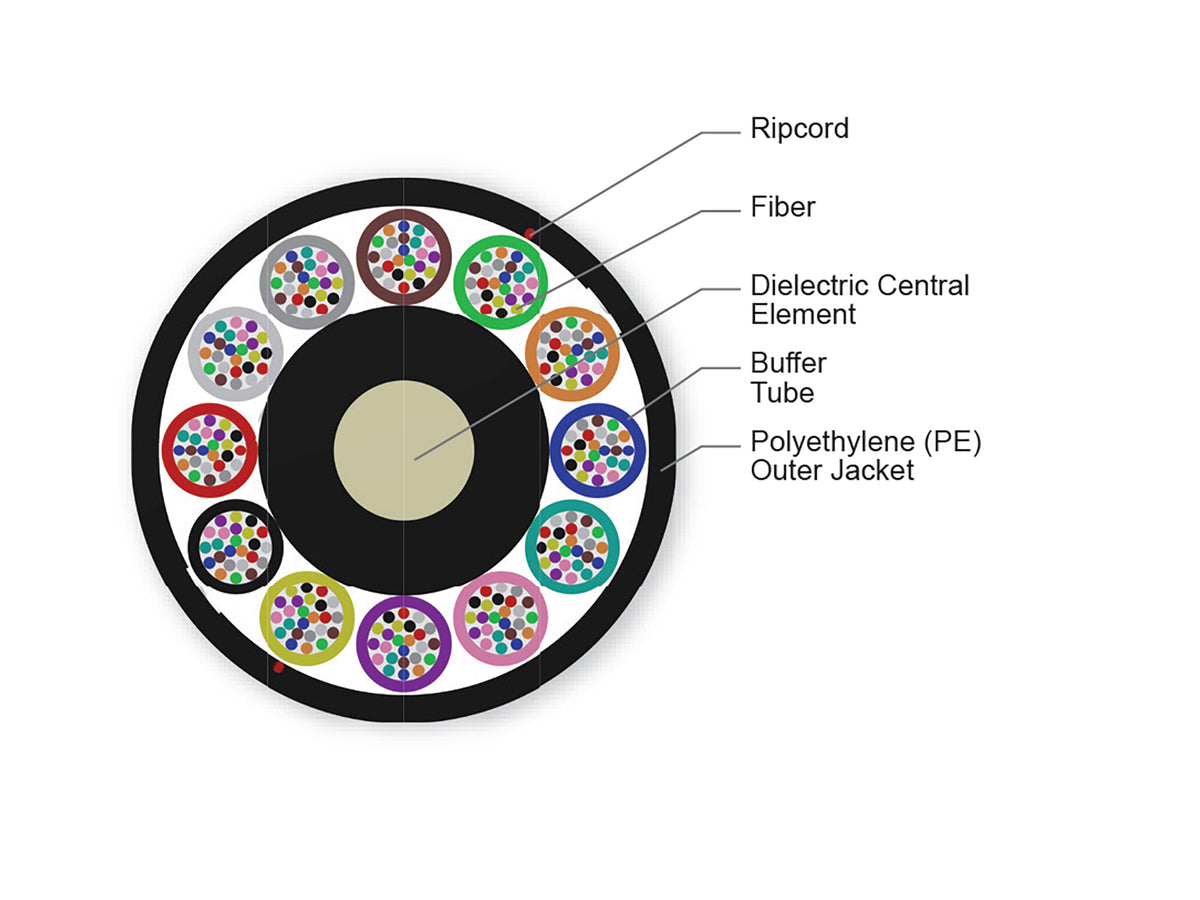

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 288 |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Outer Jacket Nominal Thickness | 0.5 mm (0.02 in) |
| Buffer Tube Color | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Buffer Tube Diameter | 1.7 mm (0.07 in) |
| Number of Active Tubes | 12 |
| Number of Tube Positions | 12 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 24 |
| Mechanical Specifications | - |
| Crush Resistance | 1000 N/10 cm |
| Max. Tensile Strength, Short-Term | 1334 N (299.9 lbf) |
| Min. Bend Radius Installation | 194 mm (7.64 in) |
| Min. Bend Radius Operation | 146 mm (5.75 in) |
| Nominal Outer Diameter | 9.7 mm (0.38 in ) |
| Water penetration (0.1bar/24 h) | 1 m (3.28 ft) |
| Optical Characteristics | - |
| Cable cutoff wavelength | 1260 nm |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra 200 Optical Fiber |
| Fiber Type | Single-mode |
| Fiber Compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Cladding diameter | 125 µm |
| Dispersion @ 1550 nm | 18 nm |
| Dispersion in the range 1285 to 1330 nm | 3.5 nm |
| Maximum Attenuation | 0.34 dB/km / 0.34 dB/km / 0.20 dB/km |
| Mode-Field Diameter at 1310 nm | 9.2 µm |
| Serial 1 Gigabit Ethernet | 5000 MHz*km / - / - |
| Serial 10 Gigabit Ethernet | 10000 MHz*km / 40000 MHz*km |
| Typical Attenuation | 0.32 / 0.32 / 0.18 |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| PMD Link Design Value | 0.04 ps/(nm*km) |
| PMD maximum individual fiber | 0.1 ps/(nm*km) |
| Coating diameter | 200 µm |
| Fiber Category | G.652.D/G.657.A1 |
| Ordering Information | - |
| Maximum Delivery Length | 6000 m (19680 ft) |
| Weight | 84 kg/km (56.45 lb/1000 ft) |
| ECCN | EAR99 |
| Country of Origin | PL - Poland |
| Fiber Category | Singlemode - OS1 |
| Fiber Count | 288 |
