Brand: Corning
|
SKU:
372-COROS2-LTUMX-288

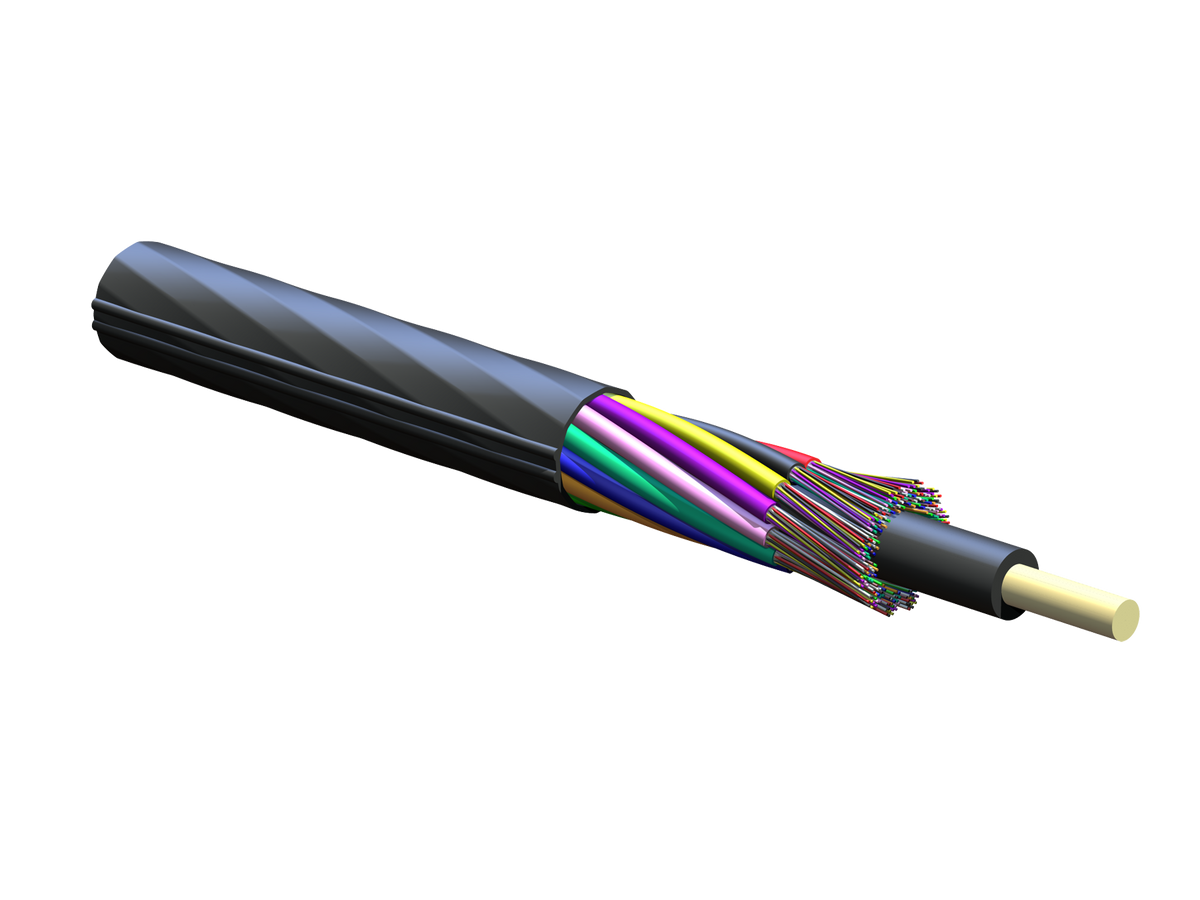

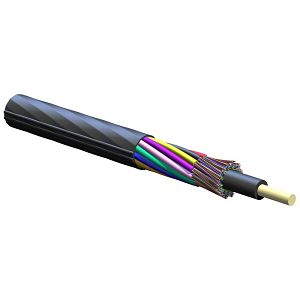

Corning 288ZH4-Y4F40A20 | MiniXtend HD Cable with Binderless FastAccess Technology
Regular price
$6.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 288ZH4-Y4F40A20 | MiniXtend HD Cable with Binderless FastAc...
Regular price
$6.70
Unit price
Brand: Corning
|
SKU:
372-COROS2-LTUMX-288
Regular price
$6.70
Unit price
Shipping calculated at checkout.
Description
Description
Corning 288ZH4-Y4F40A20 | MiniXtend HD Cable with Binderless FastAccess Technology 288 F (24F/Tube), SMF-28 Ultra fiber, Single-mode (OS2)
Corning - 288ZH4-Y4F40A20 - Features
- Binderless FastAccess Technology
- Innovative cable design that reduces cable access time up to 70 percent and lowers the risk of inadvertent fibre damage
- Reduced outer cable diameter
- High fiber density in microduct systems
- Compact and light
- CapEx-optimized installations and upgrades
- Fully dielectric
- No grounding required
- Color-coded tubes and fibers
- Easy identification of tubes and
- SMF-28 Ultra 200 fiber
- ITU-T G.652.D and G.657.A1-compliant 200 micron single-mode fiber with a 9.2 micron MFD, low loss and enhanced bend performance
- Binderless FastAccess Technology - Innovative cable design that reduces cable access time up to 70 percent and lowers the risk of inadvertent fiber damage
- Reduced outer cable diameter - High fiber density in micro duct systems
- Compact and light - CapEx-optimized installations and upgrades
- Optimized for air-assisted install in micro ducts - Capable of long installation distances
- Fully-dielectric - No grounding required
- Color-coded tubes and fibers - Easy identification of tubes and fibers
- SMF-28 Ultra 200 fiber - ITU-T G.652.D and G.657.A1-compliant 200 micron single-mode fiber with a 9.2 micron MFD, low loss and enhanced bend performance
Specifications
Specifications
Corning - 288ZH4-Y4F40A20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Outdoor Fiber Optic Cable
- DataComm
- Communications Cable
- Fiber Optic Cable
- Fiber Optic Cables
- Outdoor
- Outdoor Duct Cables
Corning - 288ZH4-Y4F40A20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 288ZH4-Y4F40A20 |
| Environment | Outdoor |
| Cable Type | Stranded Loose Tube |
| Product Type | Dielectric |
| Fiber Category | SMF-28 Ultra 200 Optical Fiber |
| Application | Microduct |
| Fiber Count | 288 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Environmental Conditions | - |
| Temperature Range, Installation | -15 °C to 60 °C (5 °F to 140 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 288 |
| Buffer Tube Color Coding | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Outer Jacket Nominal Thickness | 0.5 mm (0.02 in) |
| Buffer Tube Color | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Buffer Tube Diameter | 1.7 mm (0.07 in) |
| Number of Active Tubes | 12 |
| Number of Tube Positions | 12 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 24 |
| Mechanical Specifications | - |
| Crush Resistance | 1000 N/10 cm |
| Max. Tensile Strength, Short-Term | 1334 N (299.9 lbf) |
| Min. Bend Radius Installation | 194 mm (7.64 in) |
| Min. Bend Radius Operation | 146 mm (5.75 in) |
| Nominal Outer Diameter | 9.7 mm (0.38 in ) |
| Optical Characteristics | - |
| Cable cutoff wavelength | 1260 nm |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra 200 fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 40 |
| Cladding diameter | 125 µm ± 0.7µm |
| Dispersion @ 1550 nm | 18 nm |
| Maximum Attenuation | 0.34 dB/km / 0.34 dB/km / 0.20 dB/km |
| Fiber Bend Performance at 1550nm 7.5mm radius | 0.4 dB/turn |
| Mode-Field Diameter at 1310 nm | 8.6 µm ± 0.4µm |
| Mode-Field Diameter at 1550 nm | 9.6 µm ± 0.5µm |
| Typical Attenuation | 0.32 dB/km / 0.32 dB/km / 0.18 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| PMD Link Design Value | 0.06 ps/(nm*km) |
| PMD maximum individual fiber | 0.2 ps/(nm*km) |
| Fiber Category | G.652.D/G.657.A1 |
| Ordering Information | - |
| Maximum Delivery Length | 6000 m (19680 ft) |
| Weight | 84 kg/km (56.45 lb/1000 ft) |
