Brand: Corning
|
SKU:
373-COROS2-RIBDR-288

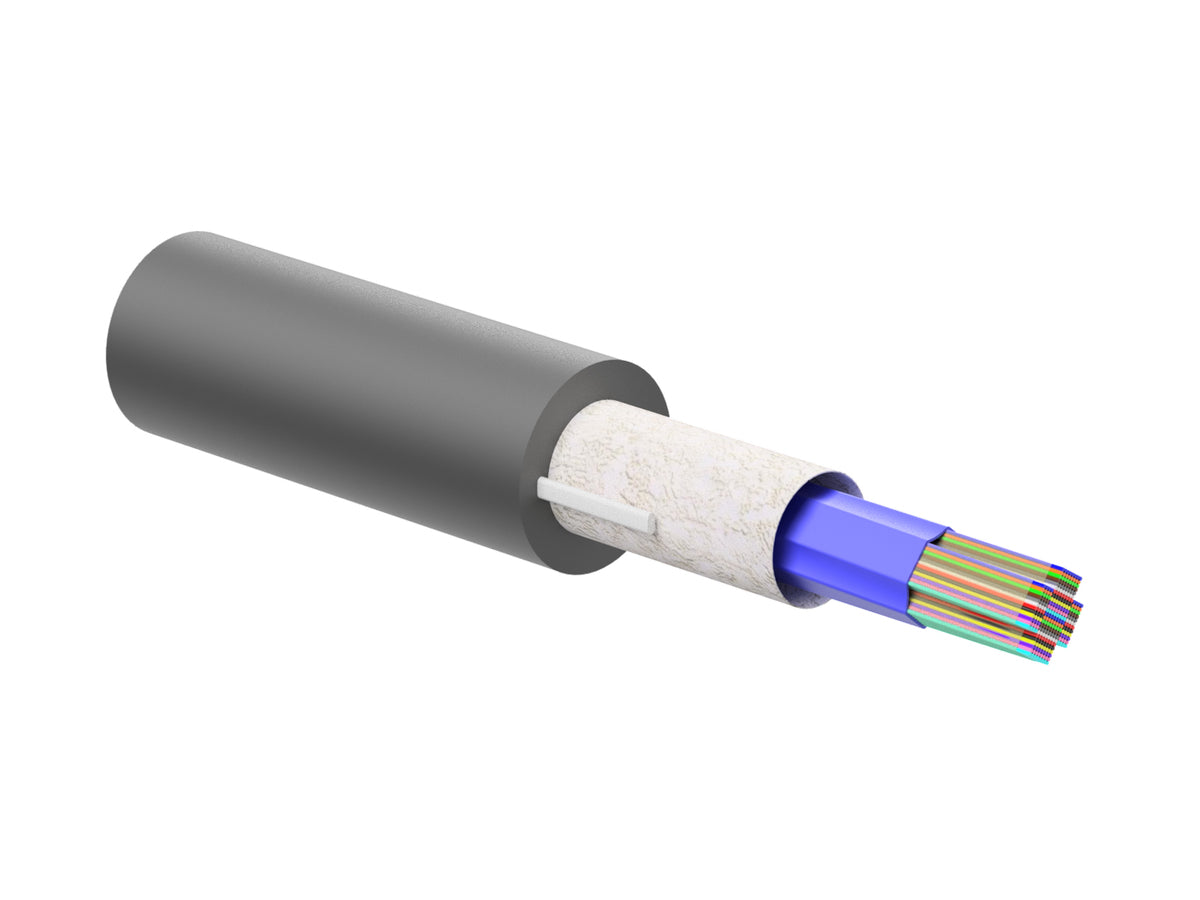

Corning 288ZQZ-14001R20 | Indoor/Outdoor Cable-250 Riser-LSZH 288F
Regular price
$15.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 288ZQZ-14001R20 | Indoor/Outdoor Cable-250 Riser-LSZH 288F
Regular price
$15.99
Unit price
Brand: Corning
|
SKU:
373-COROS2-RIBDR-288
Regular price
$15.99
Unit price
Shipping calculated at checkout.
Description
Description
Corning 288ZQZ-14001R20 | Indoor/Outdoor Cable-250 Riser-LSZH 288F
Corning - 288ZQZ-14001R20 - Features
- Unique subunit design
- Flexible, routable subunit eliminates the need for furcation when routing directly into hardware and enabling individual access to each ribbon for efficient management in splice trays
- Gel-free with no filling compound
- Eliminates time and labor of cleaning
- Indoor/Outdoor Jacket
- Eliminates the need for a transition splice at building entry
- Dual Flame-Rated
- Allows cable to be used anywhere around the globe
Specifications
Specifications
Corning - 288ZQZ-14001R20 - Specifications
| Product Number | 288ZQZ-14001R20 |
|---|---|
| Installation Methods | Duct, Horizontal, Riser |
| Cable Type | Ribbon |
| Environment | Indoor/Outdoor |
| Product Type | Dielectric |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Riser (OFNR-LS) |
| Cable Geometry | Round |
| Reaction To Fire | Cca, s1, d1, a1 |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals And Listings | National Electrical Code® (NEC®) OFNR, CSA FT-4 |
| Design And Test Criteria | ANSI/ICEA S-104-696 |
| Reaction To Fire Requirements | Reaction to fire according to EN 50575 and EN 13501-6 |
| Temperature Range, Installation | -10 °C to 60 °C (14 °F to 140 °F) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F) |
