Brand: Corning
|
SKU:
GOOG-1025374

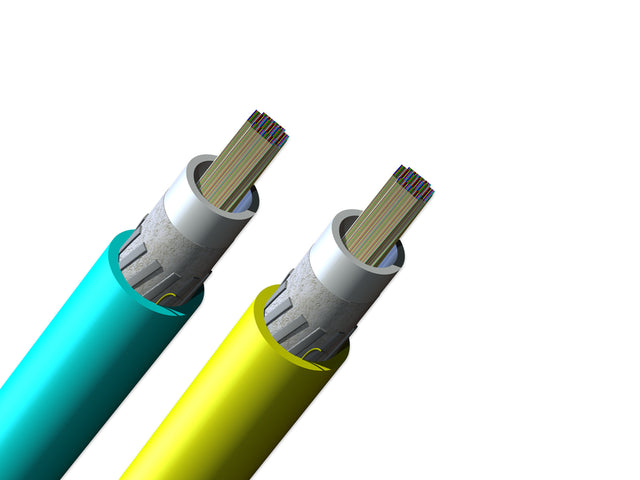

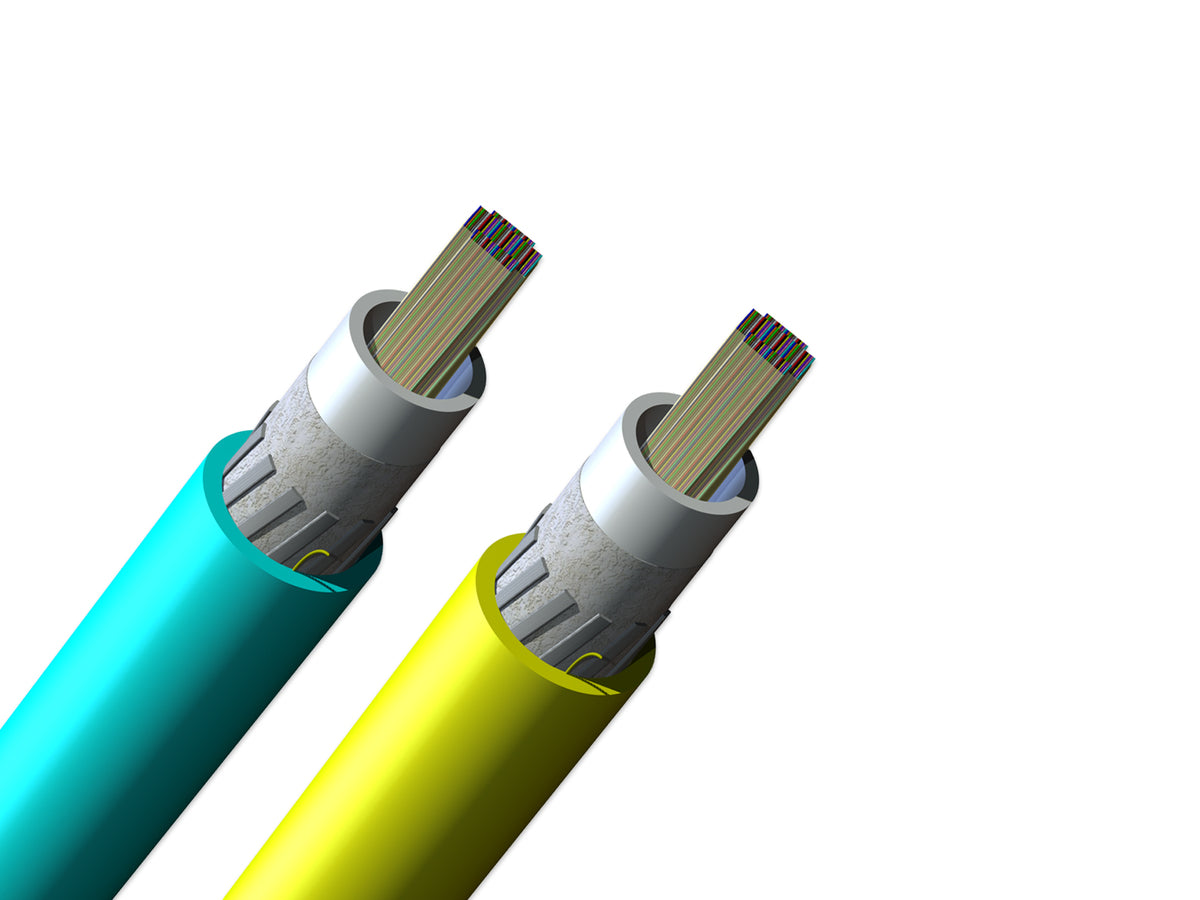

Corning 288ZV8-14101-20 | UltraRibbon Indoor, Dry Cables, Plenum 288 F, Single-mode (OS2)
Regular price
$42.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 288ZV8-14101-20 | UltraRibbon Indoor, Dry Cables, Plenum 2...
Regular price
$42.08
Unit price
Description
Description
Corning 288ZV8-14101-20 | UltraRibbon Indoor, Dry Cables, Plenum 288 F, Single-mode (OS2)
Specifications
Specifications
Corning - 288ZV8-14101-20 - Product Categories
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 288ZV8-14101-20 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 288ZV8-14101-20 |
| Item Description | UltraRibbon Indoor, Dry Cables, Plenum 288 F, Single-mode (OS2) |
| General Specifications | - |
| Product Number | 288ZV8-14101-20 |
| Environment | Indoor |
| Cable Type | Ribbon |
| Product Type | Distribution |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Plenum (OFNP) |
| Application | Plenum, General Purpose Horizontal, Vertical Riser |
| Fiber Count | 288 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP, CSA FT-6, ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0°C to 60°C (32°F to 140°F ) |
| Temperature Range, Operation | 0°C to 70°C (32°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |
| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 288 |
| Buffer Tube Diameter | 146mm (5.75in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Ribbons per Tube | 12 |
| Fibers per Ribbon | 24 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890N (200.08lbf) |
| Max. Tensile Strength, Short-Term | 890N (200.08lbf) |
| Min. Bend Radius Installation | 297mm (11.69in) |
| Min. Bend Radius Operation | 198mm (7.8in) |
| Nominal Outer Diameter | 19.8mm (0.78in) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 01 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | ITU-T G.657.A1 |
| Dimensions | - |
| Cable Weight | 343.44kg/km (230.78lb/1000 ft) |
