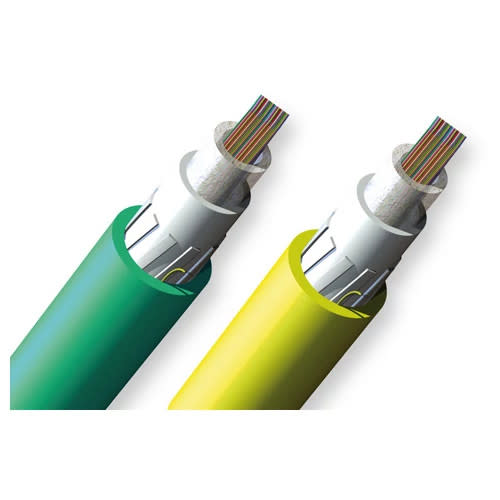

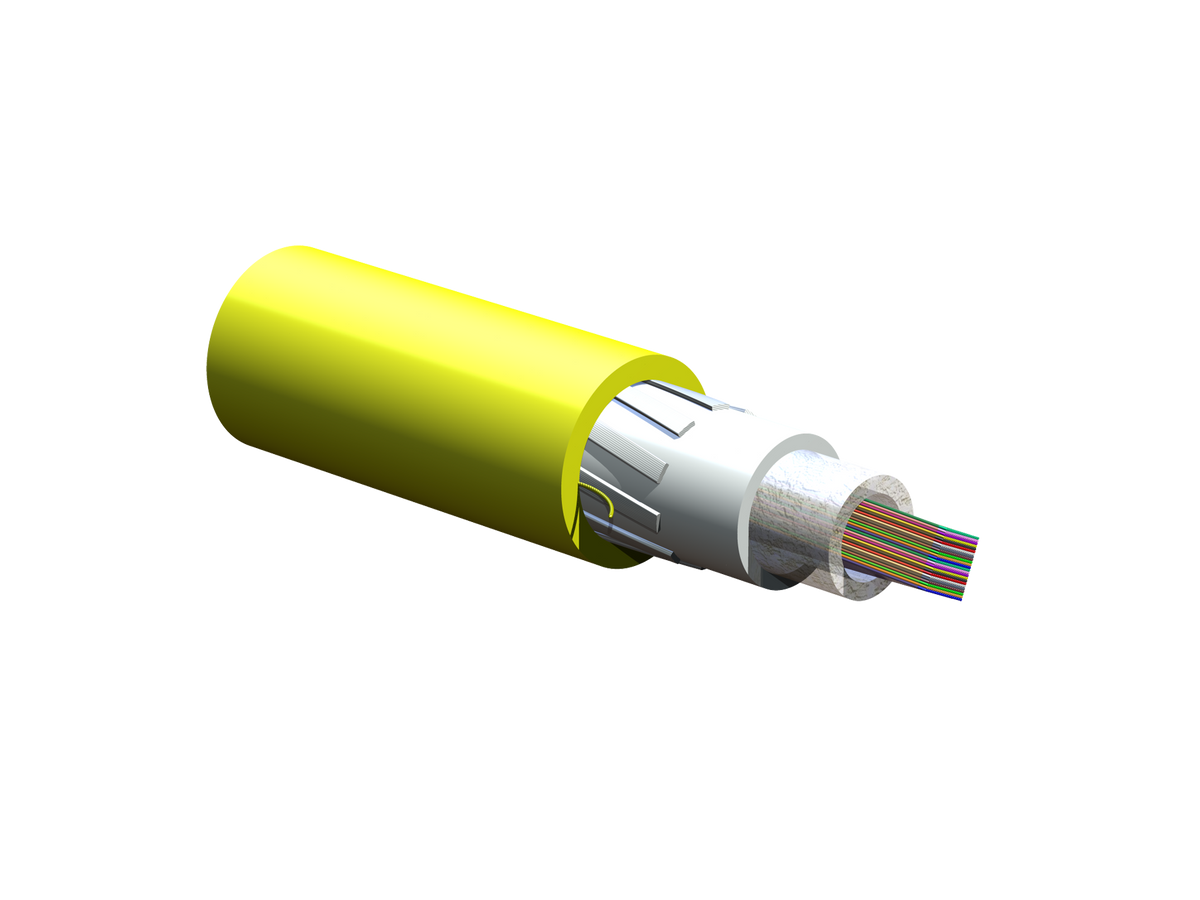

Corning 432EV7-14101D20 | UltraRibbon Riser Gel-Free Cable
Regular price
$17.22
Unit price
Brand: Corning
|
SKU:
371-COROS2-RIBD-432
Regular price
$17.22
Unit price
Description
Description
Corning 432EV7-14101D20 | UltraRibbon Riser Gel-Free Cable 432 F, Single-mode (OS2)
Corning - 432EV7-14101D20 - Features
- Each 12-fiber ribbon individually numbered
- Easy identification
- Precise fiber and ribbon geometries in a gel-free design
- Excellent mass splicing yields
- Flame-retardant jacket
- Rugged and durable
- Common installations
- Indoor vertical riser and general purpose horizontal according to National Electrical Code (NEC) Article 770
- Up to 864 fibers in a compact design
- Maximizes use of critical duct space
Specifications
Specifications
Corning - 432EV7-14101D20 - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Fiber Optic Cable
- Fiber Optic Indoor Cable
- Fiber Optic Cables
- Indoor
- Indoor Riser Cables
Corning - 432EV7-14101D20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 432EV7-14101D20 |
| EAN Code | 4056418170114 |
| Environment | Indoor |
| Cable Type | Ribbon |
| Product Type | Distribution |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Riser (OFNR) |
| Application | Vertical Riser, General Purpose Horizontal |
| Fiber Count | 432 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, CSA FT-4, ICEA S-83-596 |
| Design and Test Criteria | ANSI/ICEA S-83-596, CSA FT-4 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to -10 °C (14 °F to 14 °F ) |
| Temperature Range, Operation | -20 °C to -20 °C (-4 °F to -4 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

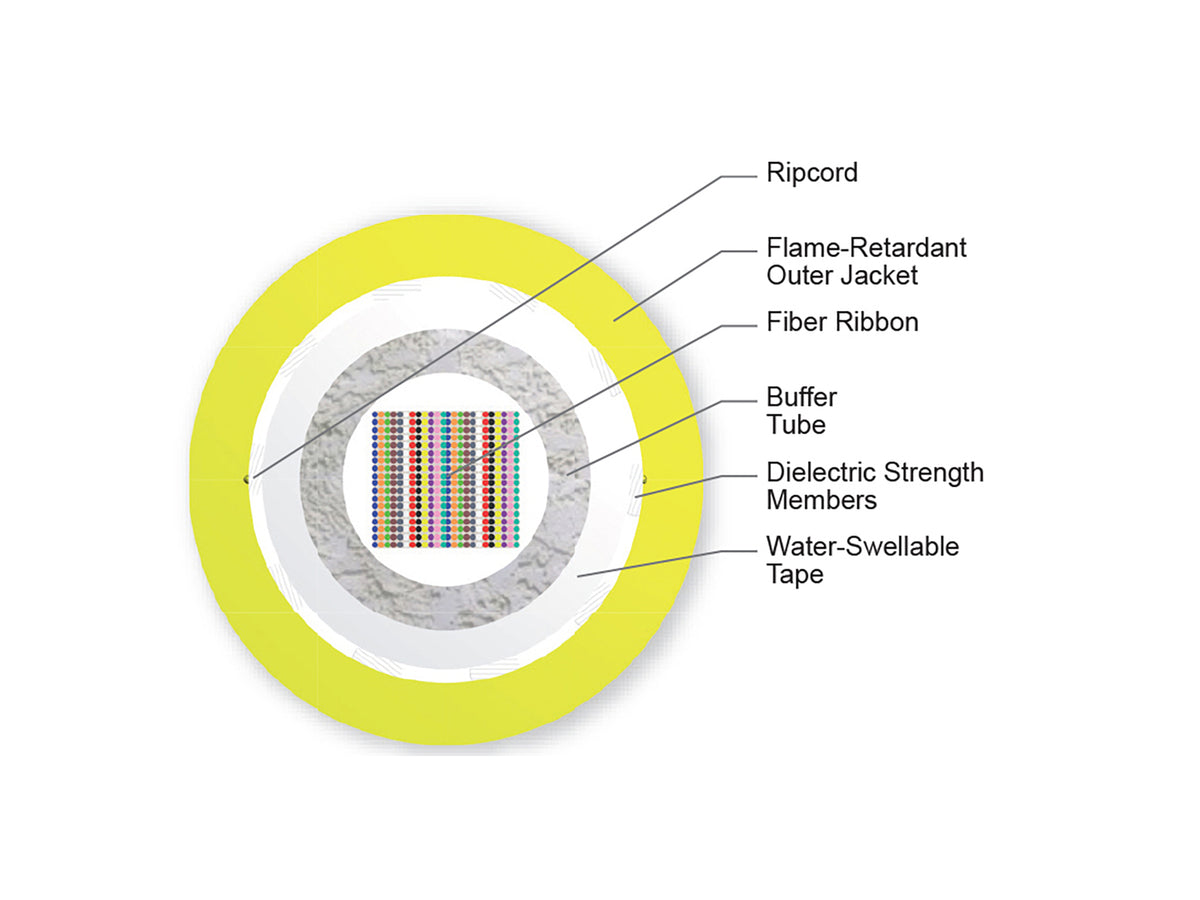

| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 432 |
| Buffer Tube Diameter | 154 mm (6.06 in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape | Waterblocking foam tape |
| Ribbons per Tube | 18 |
| Fibers per Ribbon | 24 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 890 N (200.08 lbf) |
| Min. Bend Radius Installation | 323 mm (12.72 in) |
| Min. Bend Radius Operation | 215 mm (8.46 in) |
| Nominal Outer Diameter | 21.5 mm (0.85 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 351 kg/km (235.86 lb/1000 ft) |
| Type | Indoor Fiber Cable |
| Application | Indoor |
| Transmission Mode | Singlemode |
| Fiber Type | OS2 |
| Jacket Flame Rating | OFNR FT4 |
| Jacket Material | Flame Retardant |
| Jacket Color | Yellow |
| Fiber Count | 432 |
| Outside Diameter | 0.85 in. (21.5mm) |
| Water Blocking | Gel-free |
| Construction | Gel-Free |
