Brand: Corning
|
SKU:
407043

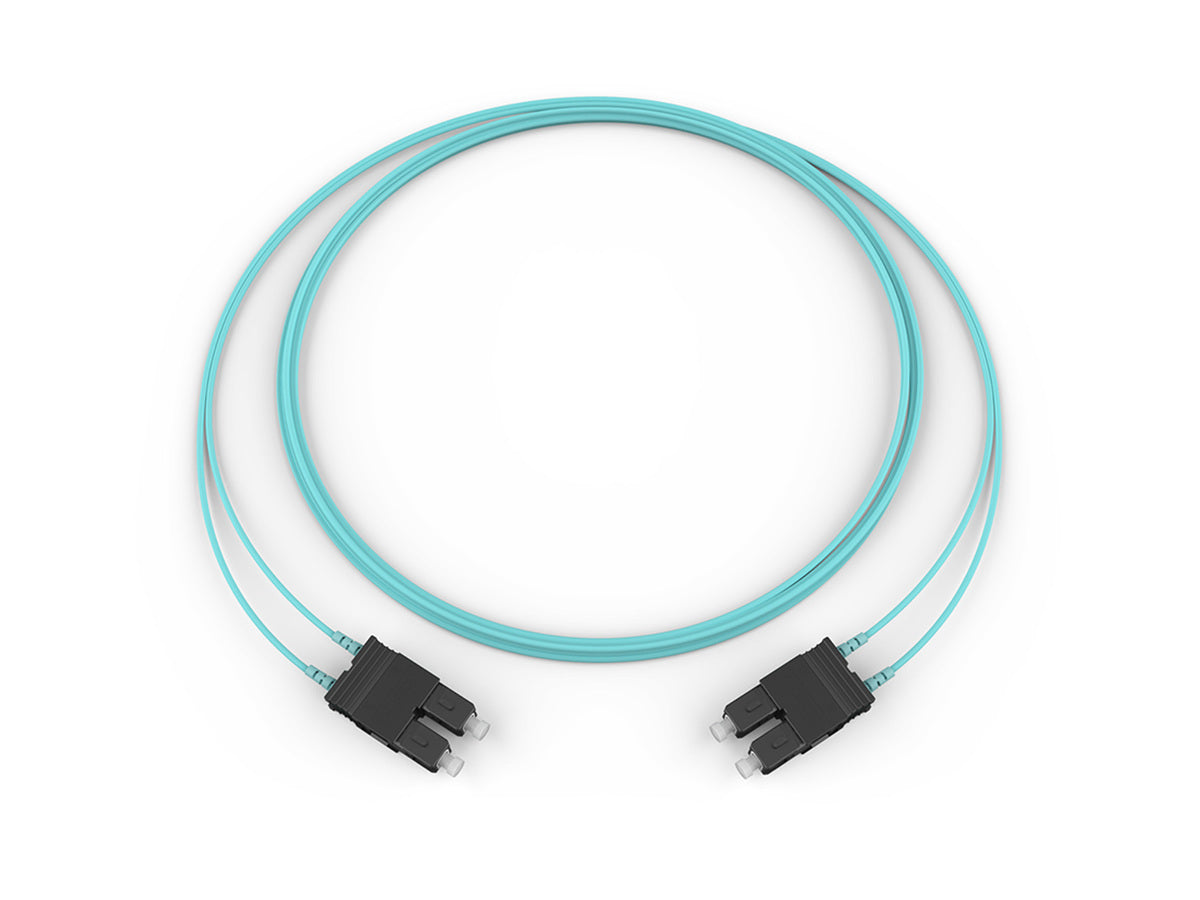

Corning 575702T5180005M | Fiber Optic Jumper, 2 F, SC Duplex to SC Duplex, Zipcord Cable, Riser, 2.9 mm legs Standard SC Duplex MM / Standard SC Duplex MM, OM3 50um, 2F, Zipcord Riser, Standard Aqua Jacket 5 Meters
Regular price
$58.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 575702T5180005M | Fiber Optic Jumper, 2 F, SC Duplex to SC ...
Regular price
$58.39
Unit price
Description
Description
Corning 575702T5180005M | Fiber Optic Jumper, 2 F, SC Duplex to SC Duplex, Zipcord Cable, Riser, 2.9 mm legs Standard SC Duplex MM / Standard SC Duplex MM, OM3 50um, 2F, Zipcord Riser, Standard Aqua Jacket 5 Meters
Specifications
Specifications
Corning - 575702T5180005M - Product Categories
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
- Two Fiber Indoor Cable Assemblies
Corning - 575702T5180005M - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 575702T5180005M |
| Item Description | Fiber Optic Jumper, 2 F, SC Duplex to SC Duplex, Zipcord Cable, Riser, 2.9 mm legs Standard SC Duplex MM / Standard SC Duplex MM, OM3 50um, 2F, Zipcord Riser, Standard Aqua Jacket 5 Meters |
| General Specifications | - |
| Product Number | 575702T5180005M |
| EAN Code | 4056418610238 |
| Flame Rating | Riser (OFNR) |
| Fiber Category | 50 µm MM (OM3) |
| Cable Assembly Type | Two Fiber |
| Application | General Building Applications, Vertical Riser |
| Cable Type | Tight-Buffered |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 2 |
| Outer Jacket Color | Aqua |
| Mechanical Specifications | - |
| Cable Length | 5m (16.4ft) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Specifications - Connector A | - |
| Insertion Loss, Typical | 0.35 dB |
| Boot Color | Aqua |
| Connector Type | SC Duplex |
| Ferrule Material | Ceramic |
| Housing Color | Black |
| Housing Material | Composite |
| Specifications - Connector B | - |
| Insertion Loss, Typical | 0.35 dB |
| Boot Color | Aqua |
| Connector Type | SC Duplex |
| Ferrule Material | Ceramic |
| Housing Color | Black |
| Ordering Information | - |
| Units per Delivery | 1/1 |
