Brand: Corning
|
SKU:
373-COROS2-RIBD-576
Corning 576EVF-14101-20 | FREEDM UltraRibbon Gel-Filled Cable, Riser
Regular price
$26.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 576EVF-14101-20 | FREEDM UltraRibbon Gel-Filled Cable, Riser
Regular price
$26.10
Unit price
Brand: Corning
|
SKU:
373-COROS2-RIBD-576
Regular price
$26.10
Unit price
Shipping calculated at checkout.
Description
Description
Corning 576EVF-14101-20 | FREEDM UltraRibbon Gel-Filled Cable, Riser 576 F, Single-mode (OS2)
Corning - 576EVF-14101-20 - Features
- Precise fiber and ribbon geometries
- Excellent mass splicing yields
- Waterblocked cable
- Enables use of cables for outdoor applications
- 12-fiber ribbons with ribbon IDs
- Easy identification
- UV-resistant, flame-retardant jacket
- Rugged, durable and easy to strip
- Available in preconnectorized assemblies
- Easy field installation and reduced labor costs
- 504-864 fibers in a compact design
- Maximizes use of critical duct space
- Common installations
- Outdoor aerial and duct
- Precise fiber and ribbon geometries - Excellent mass splicing yields
- Waterblocked cable - Enables use of cables for outdoor applications
- 12-fiber ribbons with ribbon IDs - Easy identification
- UV-resistant, flame-retardant jacket - Rugged, durable and easy to strip
- Maximizes use of critical duct space
- Common installations - Outdoor aerial and duct; indoor general purpose horizontal according to NEC Article 770
- Standards RoHS: Free of hazardous substances according to RoHS 2011/65/EU
- Approvals and Listings: National Electrical Code (NEC) OFNR CSA OFN FT-4
- Design and Test Criteria: ANSI/ICEA S-104-696, Telcordia GR-409 and GR-20
Specifications
Specifications
Corning - 576EVF-14101-20 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 576EVF-14101-20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 576EVF-14101-20 |
| EAN Code | 4056418145525 |
| Environment | Indoor/Outdoor |
| Cable Type | Ribbon |
| Product Type | Dielectric |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Riser (OFNR) |
| Application | Aerial, Duct, General Purpose Horizontal, Direct Buried, Vertical Riser |
| Fiber Count | 576 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, CSA FT-4 |
| Design and Test Criteria | ANSI/ICEA S-104-696, Telcordia GR-409 and GR-20 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

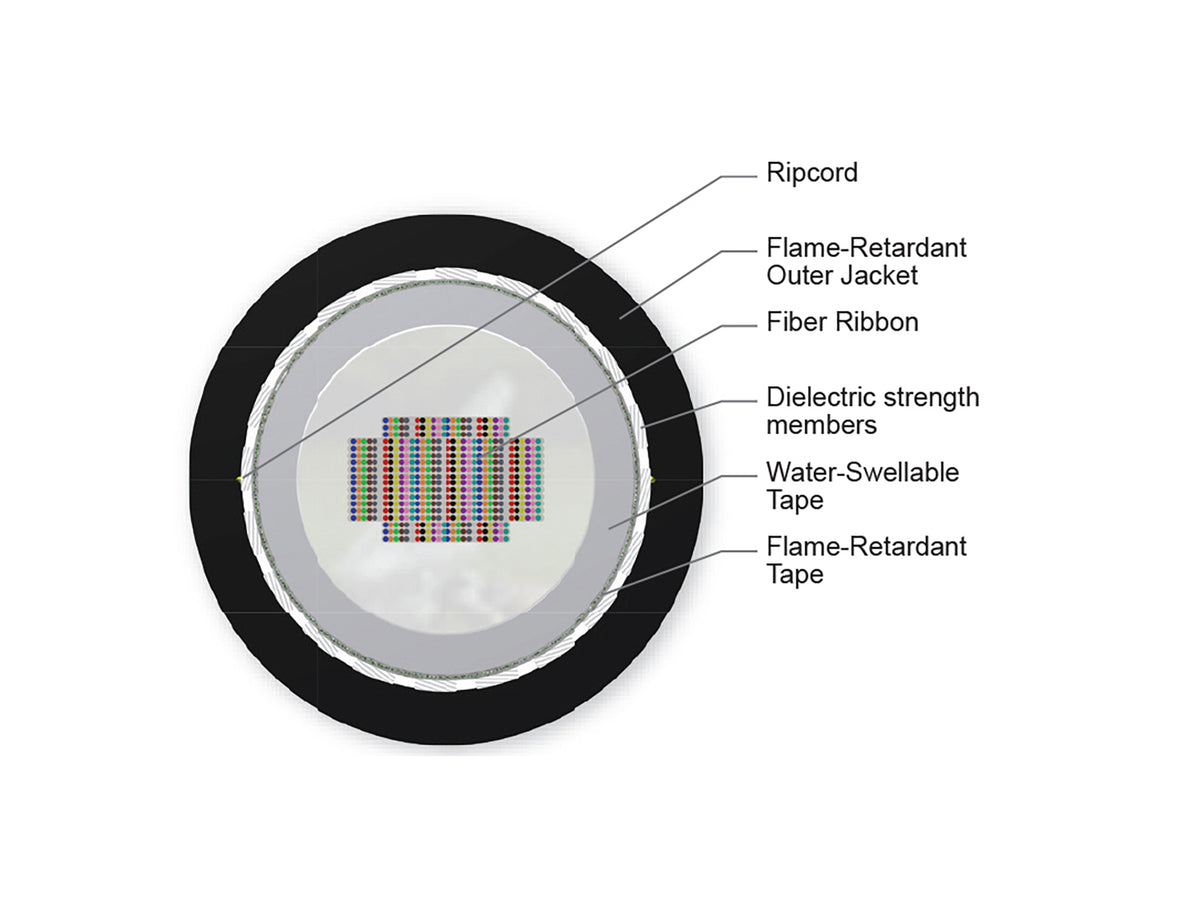

| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 576 |
| Buffer Tube Diameter | 179 mm (7.05 in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape | Water-swellable |
| Tape, Layer 1 | Flame-retardant tape |
| Tape, Layer 2 | Flame-retardant tape |
| Tape, Layer 3 | Water-swellable |
| Ribbons per Tube | 6 and 12 |
| Fibers per Ribbon | 24 and 36 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 890 N (200.08 lbf) |
| Min. Bend Radius Installation | 381 mm (15 in) |
| Min. Bend Radius Operation | 254 mm (10 in) |
| Nominal Outer Diameter | 25.4 mm (1 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 567 kg/km (381.01 lb/1000 ft) |
| ECCN | 5A991.d |
| Country of Origin | US - United States |
| UNSPSC | 26121607 |
| Brand | FREEDM UltraRibbon |
| Flammability Rating | Riser |
| Fiber Count | 576 |
